2020-11-09 21:12
Scenario
ECOmulti installation Hub-2
A new photovoltaic system with storage has to be installed on a house. There is not plenty of room on
the roof, so a maximum of 12 solar modules could be installed. A few trees, the chimney and a
—
Andreas Kriwanek
dormer window creates partial shadows on the modules. The shading will degrade the overall
COMMENT!</font>
performance when a normal string inverter for all modules is used. For this solution 12 micro inverters
<font 9pt/arial;;#FF0000;;#ffffff>The installation guide is ready now. Please change it like
(Sunny Boy 240) are installed to enable individual MPPT tracking for each module. The micro inverters
you want. You can correct my English too. If the document is ready, you can use the text
generates 230VAC on their <font 14px line-height:
and pictures for free for Victron .</font>
13.0666666030884px;/arial;;#000000;;#ffffff>paralleled</font> output, which is fed into one phase

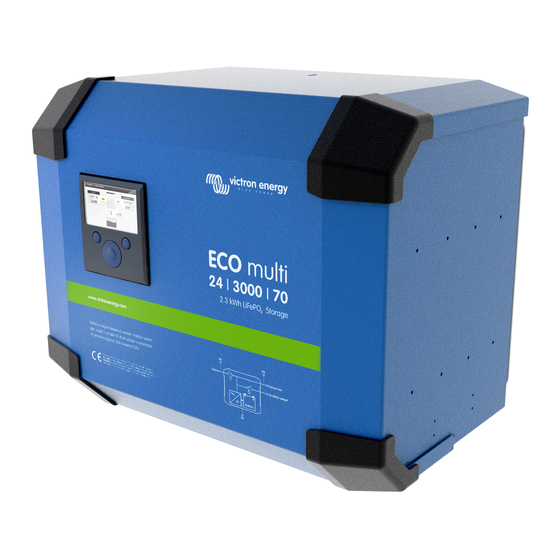

of the houses mains supply. For self-consumption and storage a Victron ECOmulti is used on the same
This document shows my practical experience in installing my first ECOmulti as a Hub2 system. The
phase. It is designed as a Hub2 installation, where the photovoltaic energy is applied on the
following program and firmware versions are used:
ECOmulti's AC output.
ECOmulti firmware 2610304
ColorControl GX rev. 1.14
VEConfigure 3 Rev. 90.04.169
The design regards the golden rule that generated solar energy has to be equal to the storage
batteries and the power of the ECOmulti:
Victron Energy - https://www.victronenergy.com/live/
1/40
2014/11/09 10:44— <font 9pt/arial;;#FF0000;;#ffffff>REQUEST FOR
ECOmulti installation Hub-2
Advertisement
Related Manuals for Victron energy ECOmulti
Summary of Contents for Victron energy ECOmulti
- Page 1 13.0666666030884px;/arial;;#000000;;#ffffff>paralleled</font> output, which is fed into one phase of the houses mains supply. For self-consumption and storage a Victron ECOmulti is used on the same This document shows my practical experience in installing my first ECOmulti as a Hub2 system. The phase.
- Page 2 T he fuses are spare parts. Components of the ECOmulti A t the moment, there is no manual for the ECOmulti available in the download area (Only the datasheet). But take it easy, the ECOmulti consists of well known Victron components in one smart...
-
Page 3: C Onnecting To Mains
Mounting the ECOmulti C hoose installation area: The CCGX should be 170cm above the floor so that your customer can look directly on the display. This will also prevent a damage of the ECOmulti in case of water flooding the basement... - Page 4 F1/F2/F3/35A (this can differ from house to house, up to 3x 63A). L2 from the fuse will be connected to the ECOmulti input, L2 from the houses is connected to the ECOmulti output. A transfer switch S1 with 35A is installed between input and output to close the phase L2 in case of a ECOmulti failure.
- Page 5 This plant has a peak value of 2,88kWp, so the switches are set for the 3000W range. The green connector is polarized +/-. Be sure don't to swap the wires to the ECOmulti. The AC sensor has to be mounted in the junction box of the inverter. The black wire is the 230VAC phase from the micro inverters.
- Page 6 The cable leads to the T-Sense input of the ECOmulti: plus on the left (brown) and minus on the right side (blue). AUX1 and AUX2 can only be used on the newest ECOmultis, the recommendation is to use the T-Sense input.
- Page 7 2020-11-09 21:12 7/40 ECOmulti installation Hub-2 <font 14px line-height: 13.0666666030884px;/arial;;#000000;;#ffffff>Each of the batteries should have about 13,</font> 3VDC: Mount the interconnection cable (black) between the two batteries: Victron Energy - https://www.victronenergy.com/live/...
- Page 8 Last update: 2014-11-09 10:48 eco_multi:start https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 Mount the plus cable (red) of the ECOmulti to the first battery: https://www.victronenergy.com/live/ Printed on 2020-11-09 21:12...
- Page 9 Mount the minus cable (black) of the ECOmulti to the second battery Caution: <font 9pt/arial;;rgb(255, 0, 0);;#ffffff> The last step will produce electrical sparks due to the inductor in the ECOmulti! </font> Just proceed, nothing will be destroyed! Interconnect the BMS cables of the batteries in a chain: Connect the BMS cables to the VE.Bus BMS in the ECOmulti:...
- Page 10 D on't believe your electrician! I gave him a circuit diagram where the 230VAC photovoltaic cable has to be connected on the ECOmulti output (= Hub2). After cabling we needed a lot of hours to get the ECOmulti working. Finally we found out, that the electrician has cabled the photovoltaic output to the input of the ECOmulti (= Hub1).
- Page 11 ECOmulti installation Hub-2 The MK2USB interfcae. C heck for possible firmware upgrade The ECOmulti will be delivered in most cases with the new micro. Check this by searching for the label on the mainboard: In this case the label is “2610206.HEX”.
- Page 12 B est practice: Get firmware from Victron via email D isconnect grid and load from ECOmulti (using the two 230VAC main switches)! Disconnect the VE.Bus cable of the ColorControl GX from the mainboard Connect the Interface MK2-USB with the UTP cable to the ECOmulti mainboard Connect Interface MK2-USB with the USB cable to a free USB connector on your laptop (USB2.0...
- Page 13 2020-11-09 21:12 13/40 ECOmulti installation Hub-2 All actual settings of your ECOmulti will be deleted! Be sure you have saved it in a file and click “Next”: <font 9pt/arial;;#FF0000;;#ffffff> To Victron : I am using a Windows7/64Bit laptop with a display resolution of 1920x1080px.
- Page 14 Click “Next” to load the firmware: Last chance to disconnect 230VAC from the ECOmulti input. The VE.Bus cable of the CCGX must also be disconnected. Click “Next”: Select the COM port of the MK2-USB from the list or click “Auto detect comport”. Then click “Next”: https://www.victronenergy.com/live/...
- Page 15 2020-11-09 21:12 15/40 ECOmulti installation Hub-2 Switch off the mainboard of the ECOmulti, then click “Next”: After a few seconds switch on the mainboard again. Click “Next”: Victron Energy - https://www.victronenergy.com/live/...
- Page 16 Last update: 2014-11-09 10:48 eco_multi:start https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 To start flashing of the firmware, click “Next”: F lashing is active now: https://www.victronenergy.com/live/ Printed on 2020-11-09 21:12...
- Page 17 After 1 minute the mainboard is flashed completely. Click “OK” to terminate VEFlash now: Remove the UTP cable of the MK2-USB and connect the VE.Bus cable of the ColorControl GX to the mainboard instead. Connect grid and load to ECOmulti (using the two 230VAC main switches). Configure the ECOmulti with VEConfigure3 ...
- Page 18 Last update: 2014-11-09 10:48 eco_multi:start https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 Selecting the right com port: Selecting the right port will start the receiving of the ECOmulti parameters: The assistant configuration will be fetched now: Select the register “General” and set your parameters: https://www.victronenergy.com/live/ Printed on 2020-11-09 21:12...
- Page 19 In Europe select a system frequency of 50Hz Select a “Wide input frequency range” for using SMA SunnyBoy 240. Select “Ground relay” for safety Choose “UPS” Function. This makes the ECOmulti to a micro grid Switch to the next register tab “Inverter”: Victron Energy - https://www.victronenergy.com/live/...
- Page 20 Last update: 2014-11-09 10:48 eco_multi:start https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 Deselect Power Assist Deselect Aktivierung AES Switch to the next register tab “Charger”: https://www.victronenergy.com/live/ Printed on 2020-11-09 21:12...
- Page 21 2020-11-09 21:12 21/40 ECOmulti installation Hub-2 A ctivate charger C hoose battery type LiFePo4. The parameters will be set accordingly Switch to the next register tab “Battery monitor”: Victron Energy - https://www.victronenergy.com/live/...
- Page 22 Last update: 2014-11-09 10:48 eco_multi:start https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 Activate the battery monitor Set the capacity to 90AH I ncrease … to 100% to allow the full load of the batteries Switch to the next register tab “Virtual Switch”: https://www.victronenergy.com/live/ Printed on 2020-11-09 21:12...
- Page 23 2020-11-09 21:12 23/40 ECOmulti installation Hub-2 The virtual switch is not supported. Switch to the next register tab “Assistants”: Victron Energy - https://www.victronenergy.com/live/...
- Page 24 Add the assistant “AC Current sensor” and start configuration by clicking on “Start assistant”: The new feature reactive current correction is displayed. Click “»”: Select the input on ECOmulti, where the AC sensor is connected. In this case it is temperature input. Click “»”: https://www.victronenergy.com/live/...
- Page 25 ECOmulti installation Hub-2 Select the power range of the AC sensor. In this example it is the 3000VA range. Click “»”: For a Hub2 system, the photovoltaic output must be connected to the ECOmulti output. Select the middle option and click “»”:...
- Page 26 Last update: 2014-11-09 10:48 eco_multi:start https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 The AC sensor is completely configured. In the register tab “Assistants” add the “Self consumption Hub-2v3”: Click “Start assistant” to configure the parameters. https://www.victronenergy.com/live/ Printed on 2020-11-09 21:12...
- Page 27 2020-11-09 21:12 27/40 ECOmulti installation Hub-2 Click “»” to leave the first info screen. <font 14px line-height: 13.0666666030884px;/arial;;#000000;;#ffffff>Select the user specific setup and click “»”:</font> Victron Energy - https://www.victronenergy.com/live/...
- Page 28 Last update: 2014-11-09 10:48 eco_multi:start https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 <font 9pt/arial;;#000000;;#ffffff>Select</font> LiFePo4<font 9pt/arial;;#000000;;#ffffff>with BMS for the</font> ECOmulti<font 9pt/arial;;#000000;;#ffffff>. Click “»”:</font> <font 14px line-height: 13.0666666030884px;/arial;;#000000;;#ffffff>Select the option for disconnect at night, then click “»”:</font> https://www.victronenergy.com/live/ Printed on 2020-11-09 21:12...
- Page 29 2020-11-09 21:12 29/40 ECOmulti installation Hub-2 We need none of the options, click “»”: Don't use load shedding. Click “»”: Victron Energy - https://www.victronenergy.com/live/...
- Page 30 Last update: 2014-11-09 10:48 eco_multi:start https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 Check battery capacity. It should be 90Ah for the LiFePo4 batteries. Click “»”: The battery empty levels are already configured correctly, just click “»”: The displayed values are OK, click “»”: https://www.victronenergy.com/live/ Printed on 2020-11-09 21:12...
- Page 31 2020-11-09 21:12 31/40 ECOmulti installation Hub-2 The ECOmulti should feed energy back to the grid, so this option isn't used. Click “»”: The frequencies are OK, click “»”: Victron Energy - https://www.victronenergy.com/live/...
- Page 32 This screen shows a summary of your settings. Read it carefully and click “»”. The assistant configuration is finished. In the program menue select This will send the settings to the ECOmulti. Send all settings and click “OK”: Configuration settings will be sent now. After a short time a question is shown: https://www.victronenergy.com/live/...
- Page 33 It takes about one minute to send the settings. The ECOmulti output will be switched off during the transmitting. Answer the success message with “OK”. IT's a good idea to save the settings in a file on your laptop. You can use it for another ECOmulti again. In the main menue click Victron Energy - https://www.victronenergy.com/live/...
- Page 34 Last update: 2014-11-09 10:48 eco_multi:start https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 Use a meaningful filename. In this case the system name “AKR”, The hub type “Hub2” and the input for the AC Sensor “TMP” are used. After clicking “Save” the the settings will be saved in a small file. You can get a summary of your settings: https://www.victronenergy.com/live/ Printed on 2020-11-09 21:12...
- Page 35 2020-11-09 21:12 35/40 ECOmulti installation Hub-2 As last Step you could check the firmware of the ECOmulti: Configure CCGX The ColorControl GX (Firmware 1.14) must be configured now: Remove the MK2USB programming cable (grey) from the VE.Bus input, if not done already Connect the CCGX VE.Bus cable (blue) to the mainboard.
- Page 36 Last update: 2014-11-09 10:48 eco_multi:start https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 In “settings” scroll down to “Ethernet” and click right cursor button: You should see an IP- and a MAC-address. The status should be online. If not, please check your router. whether it is switched to DHCP: Leave the menue with the cursor left and select VRM online portal: https://www.victronenergy.com/live/ Printed on 2020-11-09 21:12...
- Page 37 2020-11-09 21:12 37/40 ECOmulti installation Hub-2 Note the shown VRM Portal ID (you need it later for configuring your VRM site) and change the logging interval (default = 15min.) to the desired value: Leave the menue with cursor left and select “Display”: With the left/right cursor buttons you can change the brightness of the display.
- Page 38 Last update: 2014-11-09 10:48 eco_multi:start https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 Select the profile “Hub2” when your PV system is connected to the output of the ECOmulti: L eave the menue and select “Multi”: It shows the actual measurement values: The configuration of the CCGX is finished now.
- Page 39 If there is enough sunshine, you can leave the loads switched on. Switch off the input fuse of the ECOmulti. Use a multimeter to check on the input, whether the ECOmulti feeds back energy to the grid. If the grid is off, the ECOmulti must not do that.
- Page 40 Last update: 2014-11-09 10:48 eco_multi:start https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 From: https://www.victronenergy.com/live/ - Victron Energy Permanent link: https://www.victronenergy.com/live/eco_multi:start?rev=1415526536 Last update: 2014-11-09 10:48 https://www.victronenergy.com/live/ Printed on 2020-11-09 21:12...
