If the damper shaft extends less than 0.79 in. (20 mm), a shaft extension is required to mount the actuator.
To change the coupler's position, see Figure 4 and proceed as follows:
1. Mount the coupler on either Side A or Side B of the actuator as determined by the shaft length.
2. Snap the locking clip securely into the coupler retention groove to retain the coupler.

Mounting the Actuator

To mount the actuator, proceed as follows:
1. See the dimensions in Figure 5 and Table 2 to ensure the correct positioning of the anti-rotation bracket.
Table 2: Dimensions from Anti-Rotation Bracket to Shaft Center
Shaft Diameter,
in. (mm)
1/4 to 1/2 (6 to 12)
IMPORTANT: The tab on the anti-rotation bracket must fit midpoint in the actuator slot. Positioning the tab
midpoint in the slot prevents actuator binding and premature wear, and makes actuator removal easier.
2. Bend or cut the anti-rotation bracket to fit the damper frame or duct as illustrated in Figure 6.
Note: The anti-rotation bracket can be bent to fit a round damper.
3. Mark or drill mounting holes in the damper frame or duct using the anti-rotation bracket as a guide (based on
the measurements obtained in Table 2 and Figure 5).
M9203-Bxx-2(Z) Series On/Off Electric Spring Return Actuators Installation Guide

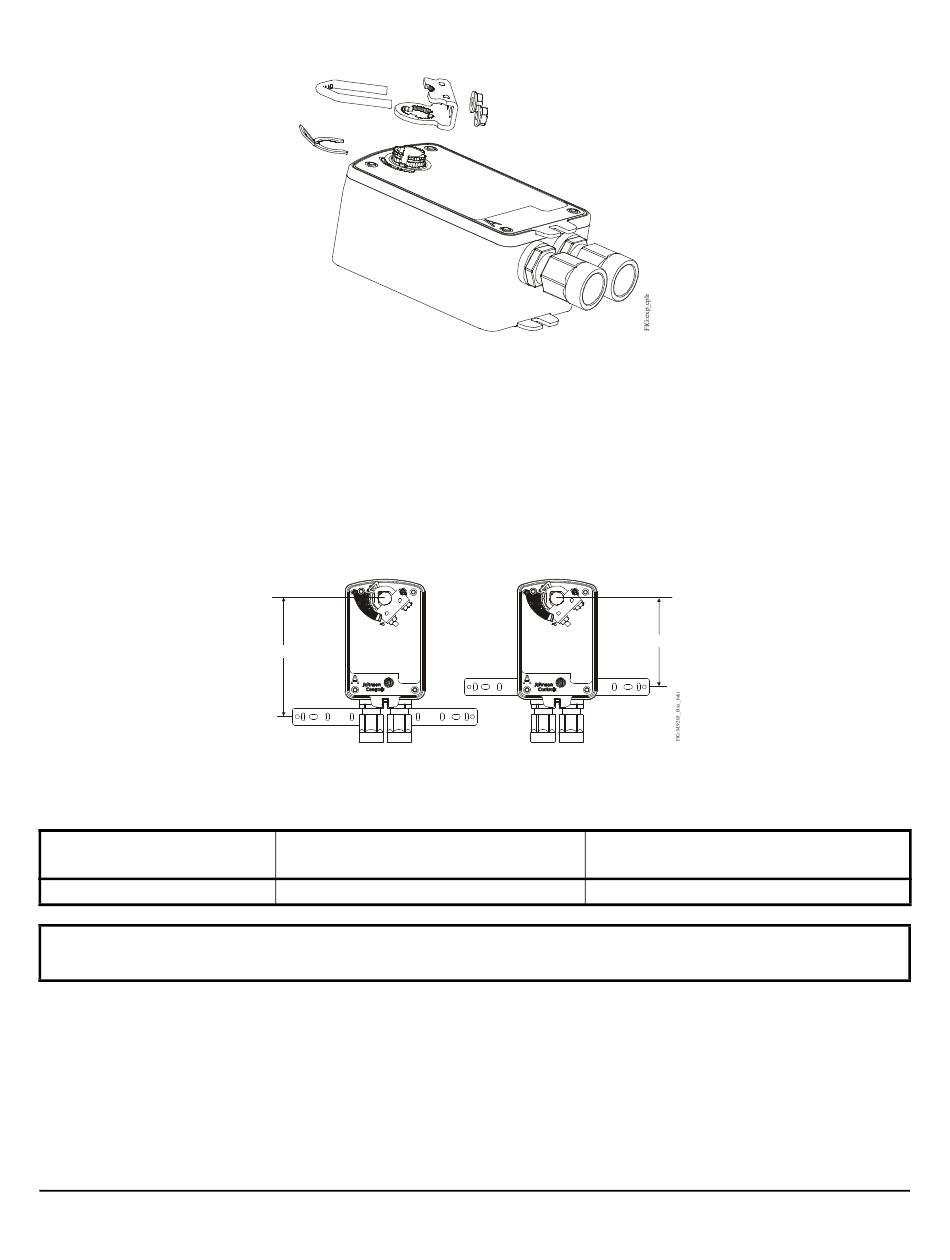

Figure 4: Changing the Coupler Position
30 30
10 50 50
70 70
90 90
DIM. A
Figure 5: Positioning the Anti-Rotation Bracket
Dimension A,
in. (mm)
4-27/32 (123)
30 30
10 50 50
70 70
90 90
DIM. B
Dimension B,
in. (mm)
3-5/8 (92)
