Audio Output

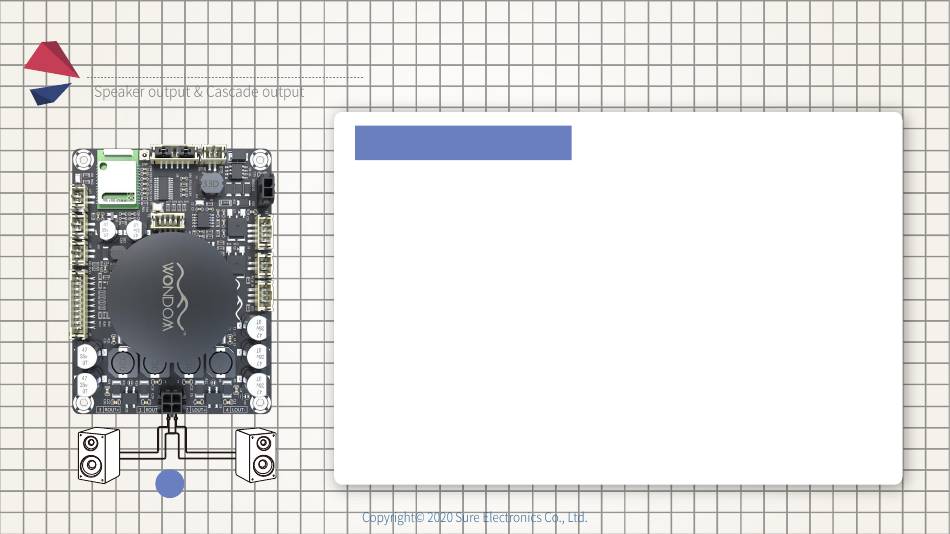

5, Speaker Output – J2
JAB2 includes four models, 2 x 50W, 2 x 30W, 1 x 60W and 1 x
100W. 2x30W and 1x60W versions do not have built in heatsink
and amplifier chips are different.
Speaker output connector is a Molex-MicroFit-4Pos-2x2 3mm.
Take care of the connector polarity definition, if connected
incorrectly, you might damage your speaker, cannot get sound
output, or get incorrect audio phase.
J2
A speaker cable comes with JAB2 in the package for easy
connection.
5
