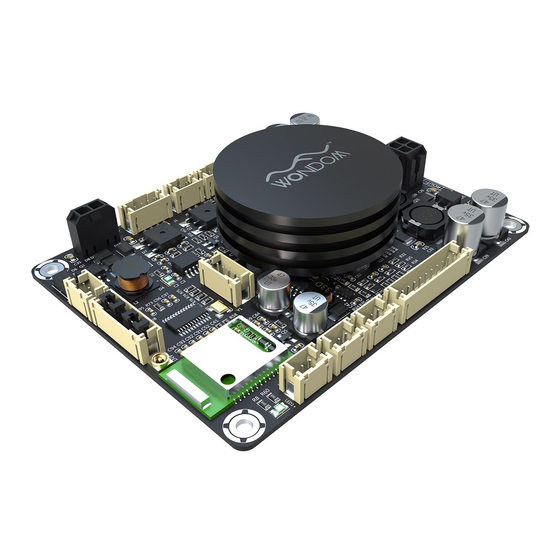

- Page 1 Bluetooth Pairing Name Customizable JAB Series Audio JAB Series Audio Amplifier Board Amplifier Board with Bluetooth Bluetooth For Wireless Speaker, Game Machine, Portable Bluetooth Speaker, Jukebox, Recrea�onal Vehicle, Yacht, Consumer Audio Applica�ons, etc. Copyright © 2017 Sure Electronics Co., Ltd.
- Page 2 (Power, Ba�ery Charging & Bluetooth) Bluetooth Antenna (2 x 50 Wa�) * Sure Electronics will update the hardware of JAB2 to make it fully compa�ble with JAB3. 3.5mm AUX Port This means, when using JAB3 with this version JAB2 (PCB Version: AA-JA13217V150), some Volume Control Port (Poten�ometer)
- Page 3 Quick Installa�on During the prac�cal Jukebox / kiosk amplifier installa�on, up to several dozens of minutes will be spent on connec�on and debugging in the last step of assembly and test. Power pins reverse polarity, the channel’s order of mul�-channel amplifier, volume adjustment of each channel, signal channel disconnec�on caused by the poor contact may cause poten�al problems.
- Page 4 Guide Machine Recrea�onal Vehicle Home Furnishing Motorcycle Yacht Build for Your Applica�ons Sure Electronics provides customizable services. For some customiza�on requirements, 500 pieces MOQ and engineering cost will be applied. Customizable service includes: External Bluetooth Antenna Bluetooth Pairing Name Cable Interfaces PBTL Mode Configura�on...
- Page 5 final products, saving much valuable �me and costs. If you have any requirements for the system cer�fica- �on, please contact our distributor or Sure Electronics. RoHS compliant will need an MOQ of 100pcs per order. Developed by...
- Page 6 Ni-MH ba�ery, Li-Fe-Po ba�ery and Lead-acid ba�ery. The default ba�ery configura�on of JAB series is 3 pieces Lithium-ion ba�eries in series. Sure Electronics also provides a Lithium Ba�ery Balance and Protec�on Extension Board (AA-JA11113) which is equipped with 3 pieces 18650 type ba�ery holders.
- Page 7 5%. Low Power Consump�on Sure Electronics also offers a solu�on with the con�nuous playback �me up to 60 hours, which is more than 2 days with only 2 hours quick charge. This version can only provide a 7.5Wa�s maximum output at 4ohm loads, but that is already enough for most applica�ons.
- Page 8 �cke�ng & check-in, gaming, security, etc., audio amplifier plays an important part in audio reinforcement of the system. Sure Electronics provides 3 pieces audio amplifier boards according to different applica�ons for easy integra�on. These amplifier boards incorporate class D ICs, which feature stable running for hours, sufficient ra�ng power, high sound quality, high efficiency and convenient connec�on.
- Page 9 We guarantee each standard product at least 100 pieces inventory while best sellers have more than 1000 pieces inventory. This means Sure Electronics keeps at least 100K pieces circuit board in stock at any �me. With more than 80 CBM of finished products and more than 100 CBM half-finished products, Sure Electronics can ship more...
- Page 10 5 Years Product Life Sure Electronics guarantees at least 5 years PLC (Product Life Cycle) to our customers, this means, once products are launched to the market, you can place orders and get technical support from Sure Electronics’ distributors within 5 years.
- Page 11 JAB2 Power Connector: Speaker Output Connector: Bluetooth Control Connector: J18 PH-2PIN-2mm J3 MOLEX-2PIN-3MM J2 MOLEX-4PIN-3MM Short Press: Cancel Bluetooth Paring Definition Definition Long Press: Turn on/off Bluetooth Definition ROUT- LOUT+ Bluetooth +3.3V ROUT+ Antenna Switch Control Connector: Socket LOUT- J5 PH-2PIN-2MM Extension Connector: Definition J6 PH-10PIN-2MM...
-
Page 12: Typical Performance Graphs
Installa�on and Typical Performance Graphs JAB1 Input Bluetooth 2.1 Module Power Supply 19V adapter for 2 x 15W Audio Amplifier Board 12.3V lithium ba�ery for 2 x 15W Audio Amplifier Board, lithium ba�ery charged from 19V adapter LED Indicators Ba�ery Charging Indicator Bluetooth Indicator Power Indicator Control... - Page 13 JAB2 Input Bluetooth 4.0 Module Power Supply 19V adapter for 2 x 30/50W Audio Amplifier Board 12.3V lithium ba�ery for 2 x 30/50W Audio Amplifier Board, lithium ba�ery charged from 19V adapter LED Indicators Bluetooth Indicator Ba�ery Charging Indicator Control Control Connec�on with JAB3 Switch Interface Extension Board...
-
Page 14: On/Off Switch
Extended Func�ons The 2-port USB charger on interface extension board supports USB ba�ery charging specifica�on, revision 1.2 (BC 1.2) which could automa�cally switch D+ and D- lines connec�ons for an a�ached device. It is able to charge any mobile phones with the maximum charging current, including Apple and Samsung. And it is equipped with Ground Noise Isola�on, so it will not lead to noise on the 3.5mm auxiliary input. -
Page 15: Price List
When new genera�on of JAB released, different versions may appear in the market at the same �me. Sure Electronics will reserve the right to stop suppor�ng or provide limited support for the old version. This means, when using new genera�on with old version, some func�ons may e invalid. For example, JAB3 can work with JAB2, but it is not suggested to work with JAB1.
