Summary of Contents for Sure Electronics JAB5

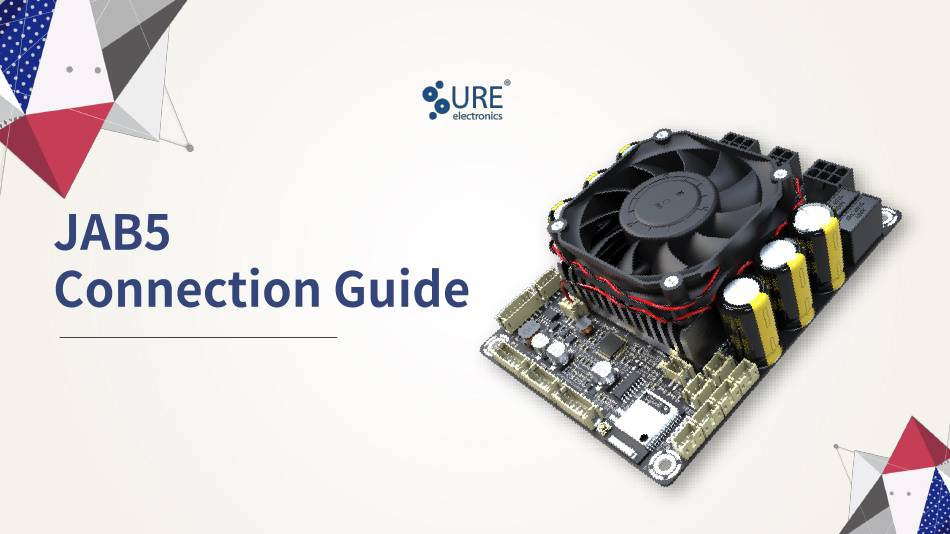

- Page 1 BY SURE ELECTRONICS CO., LTD.
- Page 2 JAB5 features low power consumption and high efficiency, suitable for home audio, DIY audio, Bluetooth speakers and digital crossover applications. JAB5 supports Bluetooth input, line input and I2S input. Signal would be mixed and delivered to speaker output. Portable...
- Page 3 What is JAB5? JAB5 supports 4.0 mode (4 x 100W), 2.1 mode (2 x 100W + 1 x 200W) and 2.0 mode (2 x 200W). The switching between the three modes are achieved by automatic cables identification, without any need of other operations. Furthermore, JAB5 supports cascading with another JAB5 to get 8 x 100W or other audio systems through the I2S output port.
-
Page 4: Block Diagram
Block Diagram Note: The detail definition and connection will be explained in the following pages. -
Page 5: Connection Diagram
DC10V-39V power supply Input Speaker Output Output Audio Input JAB5 supports BTL and PBTL mode, each Bluetooth 5.0 module 2 channels can be configured as one I2S Input channel with doubled output power. The switching of the output mode is... - Page 6 Connection Diagram Control POT4 Programming POT3 Control POT2 Control Synchronization Port Synchronization Port POT1 Standby Control Bluetooth Pairing Cancellation Potentiometers SW1: Switching between Master mode and Slave mode.
-
Page 7: Power Supply
350 Series. We also recommend Mean Well GST-160A 36V version. The terminal interface used for power supply is Molex MiniFit- 2x2Pos-4.2mm. A power supply cable is in basic cable, which comes as a standard accessory with JAB5 in the package. You can connect the cable to Mean Well GST-160A. -
Page 8: Audio Input
Audio Input JAB5 supports three inputs: BT 5.0, I2S input and analog line input, which makes it suitable for various audio projects. All signals would be mixed. AUX IN Input I2S Input... - Page 9 UI. All Apple devices are not compatible with aptX HD. There is a built-in Bluetooth antenna on the board for easy connection. So you can directly use JAB5 for audio playback. You can find the IPX to SMA conversion cable and...
- Page 10 You can find the PH-6Pos cable in the Functional Cables Kit. Input 4. Analog Line Input – J5 JAB5 supports analog input and J5 is used for 3.5mm AUX IN. You can find 3.5mm AUX IN cable in the Functional Cables Kit.
-
Page 11: Audio Output
Audio Output 5. Stereo speaker output – J13, J14 JAB5 works as 4 x 100W. It also supports configured as 2.0 / 0.2 mode (2 x 200W) or 2.1 mode (2 x 100W + 1 x 200W). The switching is achieved by automatic cables identification. - Page 12 Audio Output...
- Page 13 Audio Output 4.0 Mode 2.1 Mode 2.0 / 0.2 Mode 4 x 100W 2 x 100W + 1 x 200W 2 x 200W Output Mode & Settings...
- Page 14 Besides speaker output, JAB5 provides I2S output, which can be transmitted into another I2S amplifier board. You can connect 2 JAB5 to build an 8 x 100W audio system. A switch is provided on JAB5 to set as master mode or slave mode.
- Page 15 Audio Output 7. I2S output – J7 If JAB5 receives I2S from other device, it must be set as slave mode through the SW1 provided on board. Slave Mode If JAB5 provides I2S signal to other device, it must be set as master mode through the SW1 provided on board.
-
Page 16: Led Indicator
LED indicator indicator 9. Signal Detection LED indicator – J12 Signal level sensor system is employed in JAB5 for lower power consumption. Therefore, JAB5 provides an indicator for signal detection. When there is signal detected, the LED will be ON;... - Page 17 Control 10. Programming – J3 Based on integrated ADAU1701 DSP, you can connect JAB5 with ICP5 or higher version(s) to get PC UI control, SigmaStudio Control or Bluetooth LE control. You can adjust parameters of the audio system to customize your audio by any of the three methods.
- Page 18 “POP” noise and offer simple control. Please do not use J10 when JAB5 is used separately. You can find the PH-3Pos cable in the Function cables kit.
- Page 19 12. Standby Control – J11 J11 port is provided for easy control of the audio systems. Short circuit J11, JAB5 will enter into standby mode. Leave J11 open, JAB5 will work normally. You can find the PH-2Pos cable in the Functional cables kit.
- Page 20 Control 13. Bluetooth Pairing Cancellation Port – J4 When Bluetooth is paired, short circuit J4 (press the button) to cancel pairing. After cancellation, please release. You can find the Bluetooth pairing cancellation cable with a button in the Functional cables kit. When Bluetooth is paired, press and hold the button until the Bluetooth indicator is blinking for cancellation.
- Page 21 Control 14. External Potentiometers Four ports for external potentiometers are provided on JAB5 for POT4 hardware control of the whole system. You can find the cables POT3 POT2 along with potentiometers in the Functional cables kit. POT1 POT4: Gain of power stage channel 1...
- Page 22 Control 14. External Potentiometers • If you want on-board potentiometers, please contact us. MOQ500pcs would be required.
- Page 23 1. The channel 1 speaker output (J14) of JAB5 is defined as CH1; channel 2 speaker output (J13) is defined as CH2. 2. POT1 and POT2 are used to adjust CH2 output, POT3 and POT4 are used to adjust CH1 output. When JAB5 works as 2.1 mode, you can configure any channel as 0.1.
- Page 24 Control Customer could customize frequency range through Sigma Studio, We provide SigmaStudio source code for downloading. Hardware Control (APP Control only works with default firmware.) Function Range of Frequency High-pass Filter (4.0 / 2.0 Mode) 20Hz- 2kHz High-pass Filter (2.0 Mode) 250Hz- 2kHz 60HZ-120Hz (High-pass) Band-pass Filter...
- Page 25 Sure Electronics Co., Ltd. Professional Audio Solution Provider 3F, Building F6, No. 9, Weidi Road, Xianlin, Qixia Dist., Nanjing, China Tel: +86-025-85260046 Web: store.sure-electronics.com Email: info@sure-electronics.com Skype: sureelectronics WeChat Website YouTube Online Shop...
