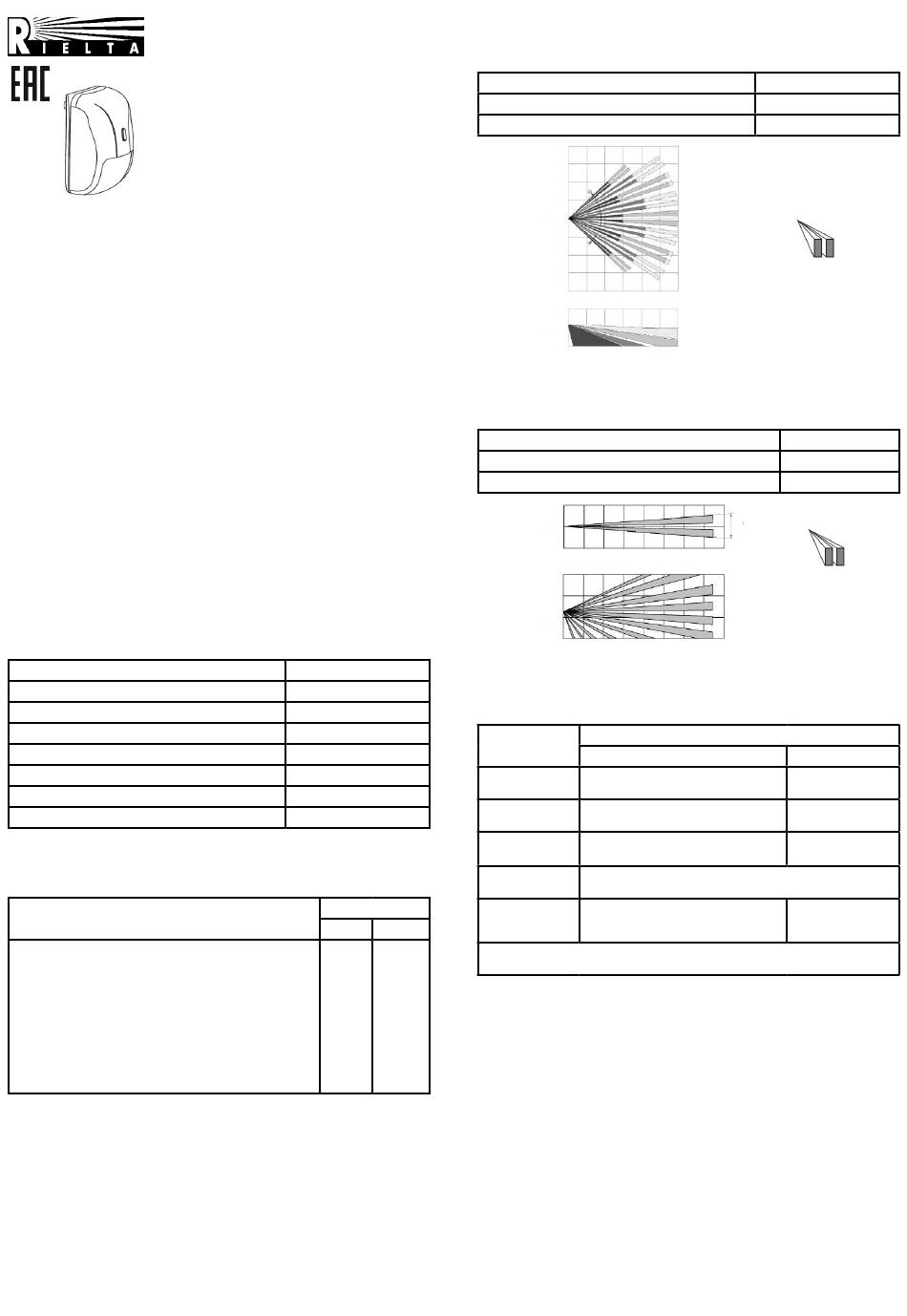

Rielta FOTON-12-RK Installation Manual

WIRELESS SECURITY PASSIVE

1 Product Overview

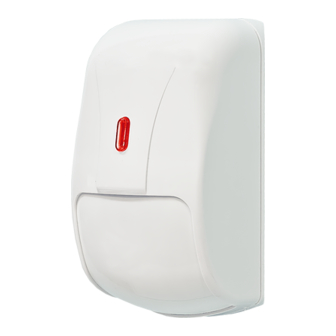

Wireless security passive infrared detectors «Foton-12-RK»,
«Foton-12B-RK» (hereinafter, the detectors) are intended for
detecting intrusion into a protected premises, with generation of alarm
messages via wireless two-way communication channel within the
433.05 434.79 MHz frequency range by the «Rielta-Contact-R»
—
protocol.
The detector is intended to operate as a component of any control
panel (hereinafter, CP) supporting the «Rielta-Contact-R» wireless
two-way communication protocol.
The detector is powered from two 3 V DC power supply batteries,
the main one (СR123A type) and the backup (СR2032 type) located
inside the detector case.
The detectors are designed to operate continuously, around the
clock.

2 Features of the Detectors

- Dual-element pyrodetector.
- Protection against ingress of insects to the pyrodetector.
- Temperature compensation of detectability.
- Ease of installation and detection zone orientation provided
bymeans of swivel bracket (supplied).
- Immunity to small animals.
- Automatical switch to a backup operating frequency in case of
achallenging interference situation at the main one.
- Built-in backup power supply.

3 Specifications

Table 1
Features
Operating temperatures range
Relative air humidity at 25 °C
Weight, maximum
Dimensions, maximum
Range of detected speeds
Installation height
Battery life (under normal conditions)

4 Scope of Delivery

Each Detector unit package contains the items listed in Table 2.
Table 2
Name
Wireless security passive infrared detector
«Foton-12-RK»
Wireless security passive infrared detector
«Foton-12B-RK»
Swivel bracket
Screw 3-3х30.016
CR123A lithiun power supply battery
CR2032 lithiun power supply battery
Wireless security passive infrared detectors
«Foton-12-RK», «Foton-12B-RK». Installation Guide

5 Informativity

The Detector ensures transmission and indication of the following
messages:
- normal state message;
- alarm message;
- tamper message;
- main power supply low-battery message;
- backup power supply low-battery message;
- «Binding» mode operation indication;
- «Identification» mode indication;
- communication quality indication.
INFRARED DETECTORS
«FOTON-12-RK»
«FOTON-12B-RK»
Installation Guide
Value
minus 20 to +50 °С
up to 95 %
0.13 kg
92 x 57 x 48 mm
0.3 — 3 m/sec
2.3 m
at least 5 years
QNT
12-RK
1 pc.
1 pc.
2 pcs.
1 pc.
1 pc.
1 copy

6 Versions of Detectors

6.1 Wide Angle Detector «Foton-12-RK».
Table 3
Types of detection zones
Maximum detection range
Horizontal detection angle
2.3 m
6.2 Vertical Curtain «Foton-12B-RK».
Table 4
2.3 m

7 LED Indication

Table 5
Detector Status
«Binding»
«Alarm»*
«Identification»
«Connection
quality»
Binding
procedure
12B-RK
completed
*) — Alarm indication is deactivated in 15 min after the detector cover is
closed and activated after it has been opened or at a command from the CP.
1 pc.

8 Binding with the CP

1 pc.
The binding procedure is intended for logging of the Detector in the
2 pcs.
CP and the transmission of service information to it.
8.1 Prepare the CP for the Detector binding in compliance with the
1 pc.
CP Installation Guide.
1 pc.
8.2 Install the СR2032 backup power supply battery into the holder
1 copy
located on the reverse side of the detector printed circuit board (PCB).
8.3 Install the PCB into the detector case, and then install the
СR123А main power supply battery.
8.4 The LED indicator blinking green displays the detector readiness
for the binding procedure.
In case the LED indicator does not blink, close the «Reset» contacts
for a short time period using any metal object.
8.5 After a successful binding with the CP, the LED indicator lights
red for 2 sec.
8.6 The time during which the detector operates in the «Binding»
mode is limited to 100 sec. After it expires, the detector changes to
the sleep mode. To resume the «Binding» mode, the «Reset» contacts
must be closed for a moment.
90°
Top View
0
12 m
Side View
12 m
Figure 1 «Foton-12-RK» Detection Pattern
—
Types of detection zones
Maximum detection range
Horizontal detection angle
0
15 m
15 m
Figure 2 «Foton-12B-RK» Detection Pattern
—
LED Indication
LED Status
Green LED indicator blinks
intermittently at 0.5 Hz frequency
LED indicator lights red for at least
0.5 sec
LED indicators blinks alternately red
and green at 1 Hz frequency
See Sect. «Communication Quality Appraising»
LED indicator lights red for 2 sec
Wide angle
12 m
90°
Structure of
any sensing
zone
Vertical curtain
15 m
8°
8° Top View
Structure of
any sensing
zone
Side View
Operation Mode
If indication is
enabled
by a command
from the CP
