Atop EMG8305 Series Hardware Installation Manual

Industrial Unmanaged Gigabit Ethernet Switch
EMG8305 Series
Version 0.1
Updated in July, 2016
P/N:89900496G
Inside the package you will find the following items:
■ Industrial Managed Gigabit Ethernet Switch x 1
■ Installation Guide with Warranty Card x 1
Never install or work on electrical or cabling during periods of lightning activity.
Never connect or disconnect power when hazardous gases are present.
Warning:Hot Surface Do Not Touch.

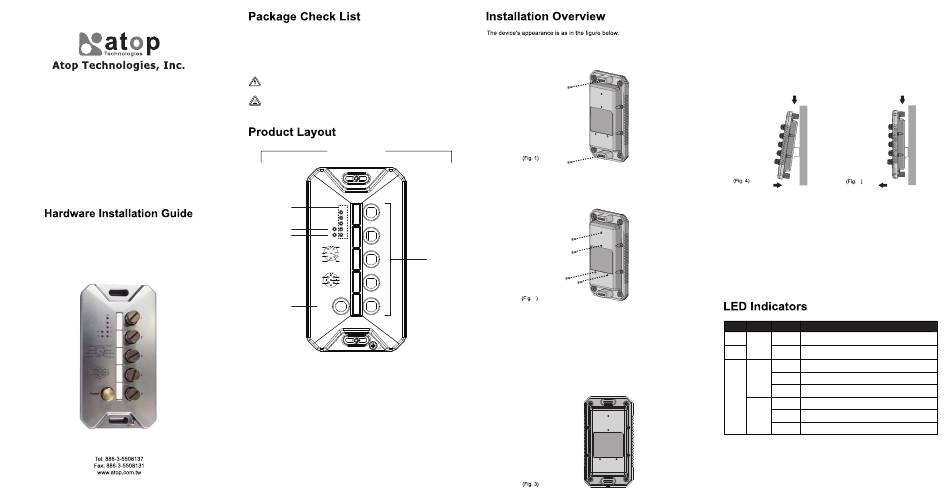

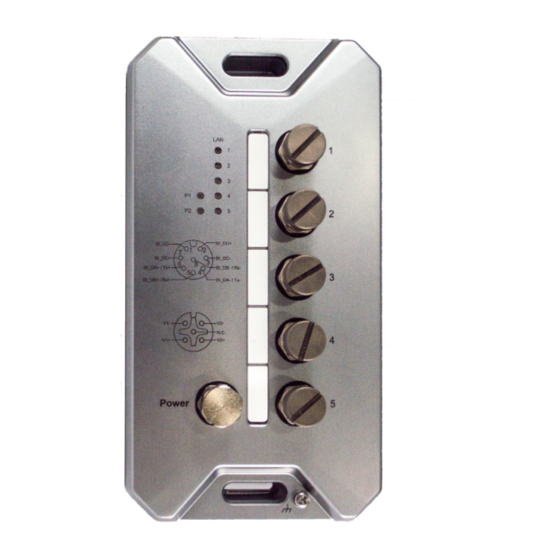

EMG8305 Series
1
LAN
1
1
2
3
2
P1 4
3
P2 5 2
BI_DC- BI_DD+
1 2
7
BI_DC+ BI_DD-
3
6 8
BI_DA+ / Tx+ BI_DB- / Rx-
5 4
3
BI_DB+ / Rx+ BI_DA- / Tx-
V1- V2-
F.G.
4
V1+ V2+
4 Power
5
1. LAN Port LED
2. PWR1 LED
3. PWR2 LED
4. 5-pin A-Coding Male of the power connector
5. 10/100/1000BaseT(X) 8-pin A-Coding Female or 8-Pin X-Coding Female
1. Proceed to place the screws on the back of the device as show in (Fig. 1).
2. If you have the Din-rail kit, proceed to place the screws on the back of the
device as show in (Fig. 2)
5
2
3. Although internal grounding has been done inside, in order to ensure overall
maximum performance and protect your device, it is still strongly advised to
ground the device properly; hazardous ESD can come into contact and
damage your equipment. On the power terminal block, there is a terminal for
Frame Ground, you can choose whether to connect it to the grounding or you
may opt to connect to the grounding screw next to the terminal block ( the one
chosen should be connected at all times ) (Fig. 3)
4. You can then choose whether to plug in the other peripheral ports at this point
or do it later depending on the actual location of the device or level of comfort
for performing such operation.
5. If you have purchased the DIN-Rail kit, Once the plate has been firmly put in
place, proceed to mount the whole device as shown in (Fig. 4).
Proceed to (Fig. 5) if you want to remove the device from DIN-Rail.
1 1
5
2 2
6. Next we can then proceed to connect the device to the LAN (switch or PC,
depending on the case), take care on using the M12 connector; after this we
can then proceed to the device's settings
■ The housing has a good thermal conductivity material, so the heat can be
dissipated to the outside through the housing by conduction-convection.
LED Color State Deacription
PWR1 On Power is supplied through PWR1or PWR2
Green
PWR2 Off Power is off
On Ethernet is linked at 10/100Mbps
Amber
Blinking Ethernet is active and data is being transmitted
Ethernet is not linked
Off
LAN
On Ethernet is linked at 1000Mbps
Green
Blinking Ethernet is active and data is being transmitted
Off Ethernet is not linked
