Assa Abloy Sargent 11 Line Installation Instructions page 2

11 Line w/ SL- Option
Bored Lock
Installation Instructions
TOC Table of Contents
1 Lock Body Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2 Security Attachment Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
3 Lever Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
4 Cylinder Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1
Lock Body Assembly
1. Prep door, and install lock bearing and latch according to T-Zone Installation
Instructions A7469, steps 1through 5.
2. Complete assembly of lock with Security Lever Attachment, according to
the following steps.
2

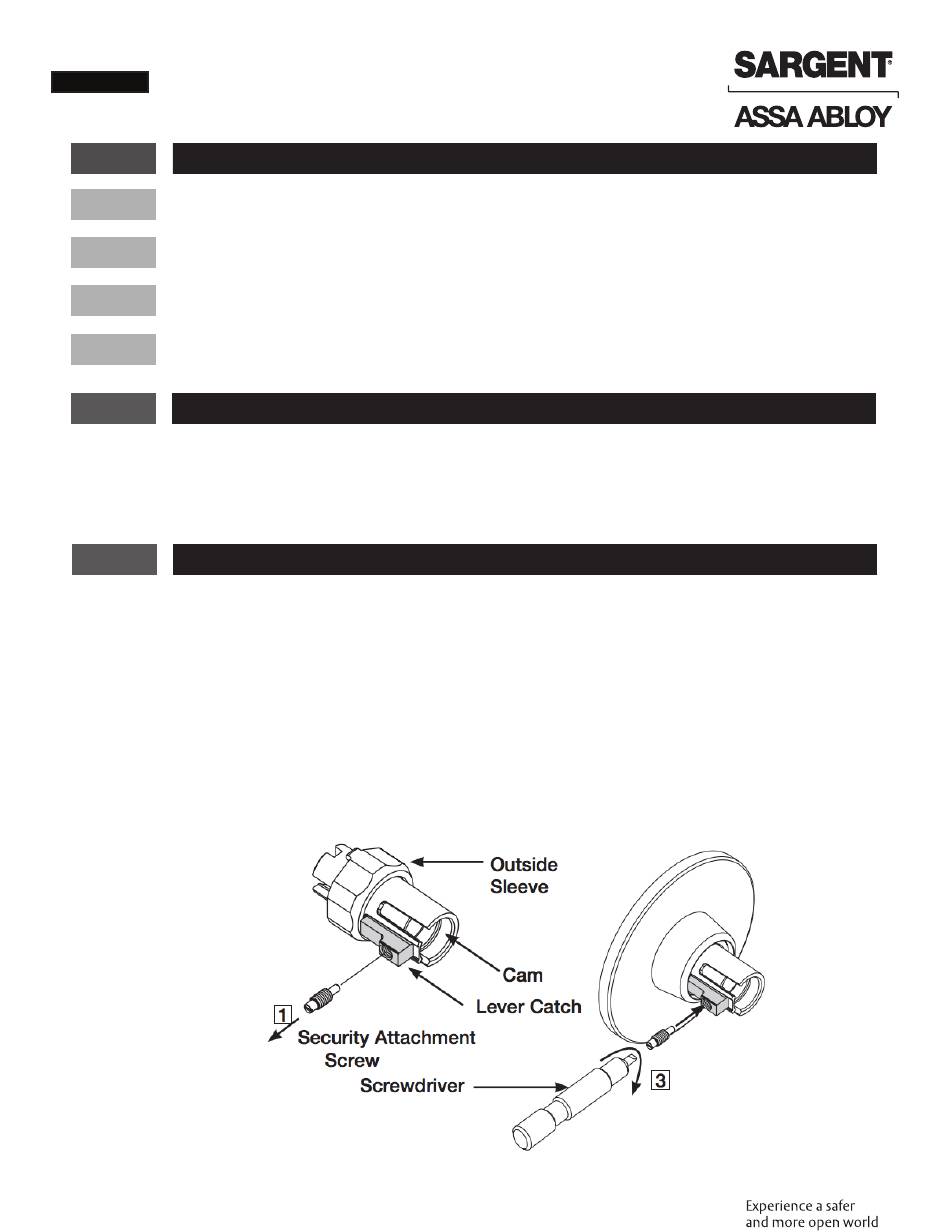

Security Attachment Screw
1. Using screwdriver provided, unscrew the Security Attachment Screw from lever catch on the outside
sleeve.
IMPORTANT - Keep screw for reinstallation.
2. Install outside and inside sleeves and roses according to Installation Instructions A7469, steps 6 & 7.
3. PLEASE NOTE - THE CAM IN THE OUTSIDE SLEEVE MUST BE ROTATED SO THE LARGE SLOT IS
HORIZONTAL . THIS ALLOWS THE SECURITY SCREW TO THREAD INTO THE CAM .
Insert the Security Attachment Screw into black lever catch assembly and tighten until screw head is
within approximately 1/8" of black lever catch. DO NOT OVER TIGHTEN .
