Connecting the Optical Cable: Dual Port HBA

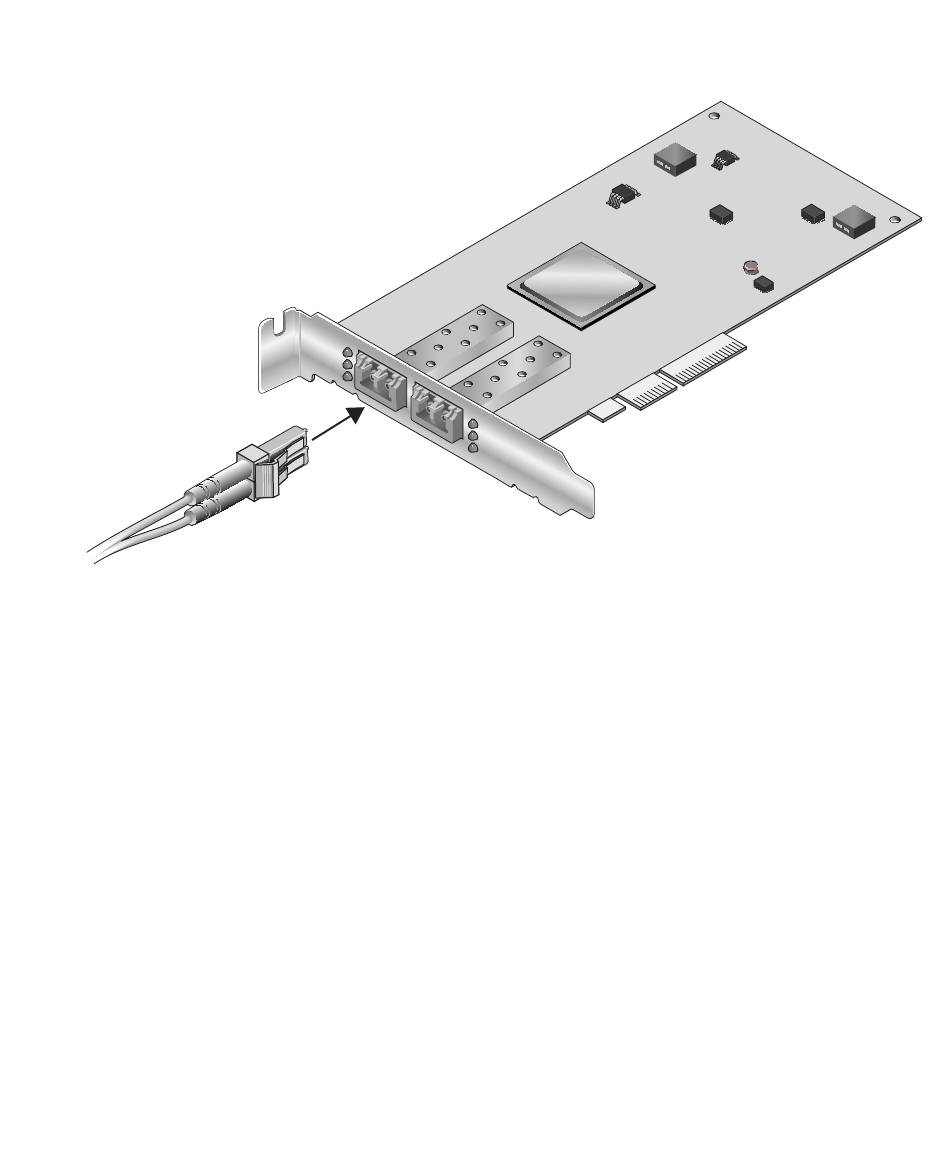

FIGURE 2-3
2. Connect the other end of the cable to the FC device.
After the optical cable is connected to the HBA, you can power on the system.

▼ To Apply Power

1. Verify that the HBA is securely installed in the system.
2. Verify that the correct fiber-optic cable is attached.
3. Refer to your system installation or service manual to determine how to power
on the system.
4. Observe the light-emitting diode (LED) status for the power-on self test (POST)
results as shown in
The yellow, green, and amber LEDs can be seen through openings in the
mounting bracket of the HBA.
.
TABLE 2-1
summarizes the LED status conditions.
TABLE 2-1
Chapter 2 Hardware Installation and Removal 15
