Use multimode fiber-optic cable, intended for short-wave lasers, that adheres to the
specifications listed in
in
"HBA Features and Specifications" on page
3.
TABLE 1-1
1. Connect the fiber-optic cable to an LC connector on the HBA.
shows the single port HBA and
shows the dual port HBA.
FIGURE 2-2
FIGURE 2-3

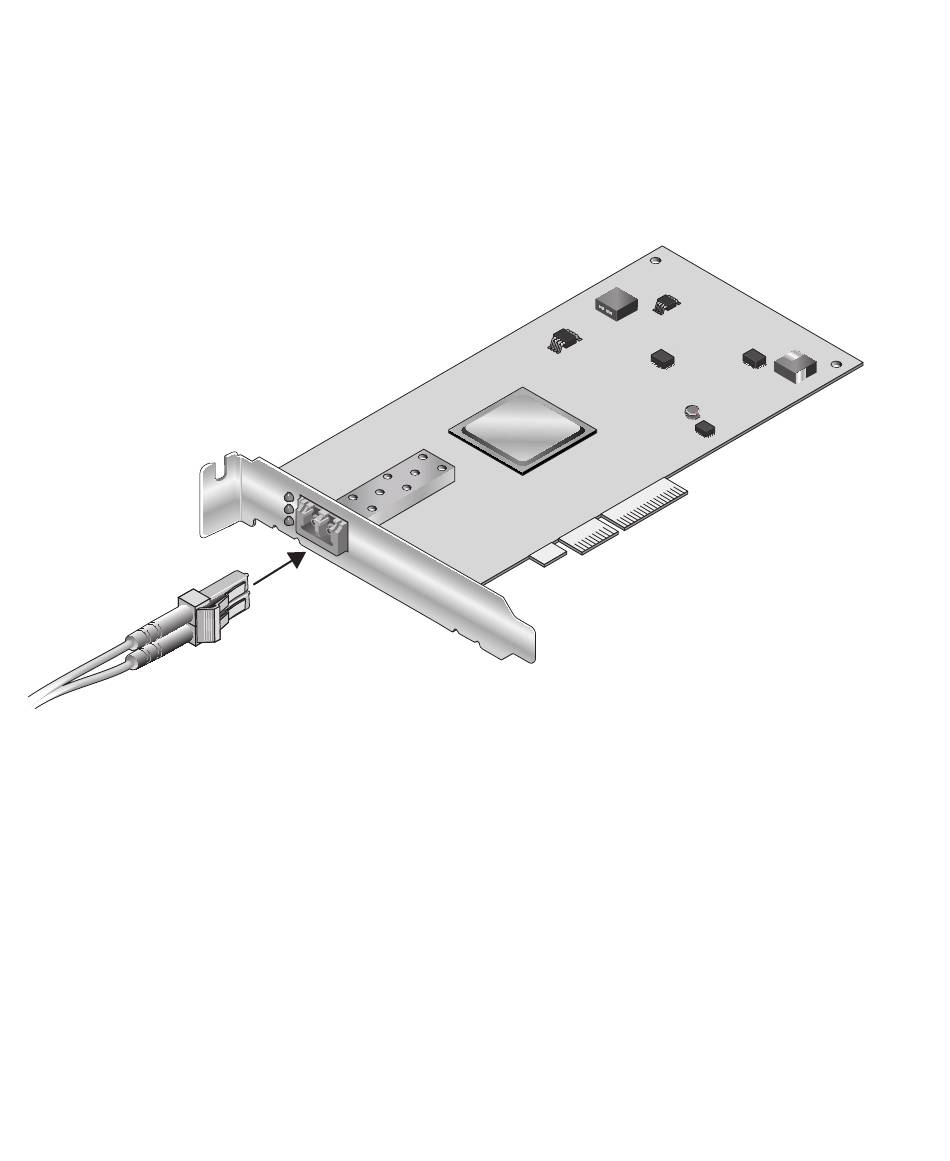

Connecting the Optical Cable: Single Port HBA
FIGURE 2-2
14
Sun StorageTek 8 Gb FC PCI-Express HBA Installation Guide • September 2009
