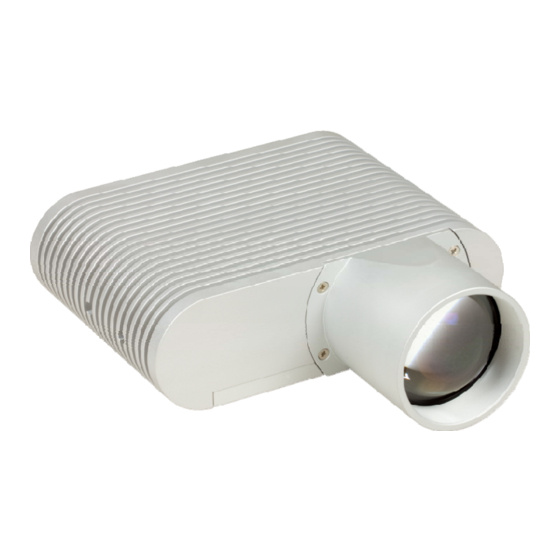

- Page 1 Four Wavelength High Power LED Source LED4Cxx Series Operation Manual 2011...
- Page 2 2 LED4Cx Version: Date: 08. Nov. 2011 © 2011 Thorlabs © 2011 Thorlabs...
-
Page 3: Table Of Contents
Technical Data......................... 11 Available wavelengths..................... 11 LED Spectra ........................12 Possible Combinations of wavelengths................12 Item numbers and wavelength combinations ..............13 Warranty ..........................15 Copyright ..........................15 Thorlabs “End of Life” Policy (WEEE)..................16 Thorlabs Worldwide Contacts....................17 © 2011 Thorlabs... - Page 4 ATTENTION Paragraphs preceded by this symbol in the manual explain hazards that could damage the instrument and connected equipment or may cause loss of data. NOTE This manual also contains "NOTES" and "HINTS" written in this form. © 2011 Thorlabs...
-
Page 5: General Information
Mercury Vapor Lamps, the same precautions should be taken as those applying to Mercury Vapor Lamps. In case Thorlabs Four Wavelength High Power LED Source LED4Cx is used in other applications, they should be used in accordance with CEI IEC 62471. -
Page 6: General
UV light. CAUTIONS During normal operation, the case temperature of Thorlabs Four Wavelength High Power LED Source LED4Cx will rise by up to 25°C (45°F) above ambient temperature. Take care for an unhindered heat dissipation. Do not cover the enclosure and provide a free air ventilation to the radiator. -
Page 7: Getting Started
2.3 Physical Overview The optical output of the LED4Cx features an internal SM2 thread. There are four adapters available for Olympus, Nicon Eclipse, Leica and Zeiss microscopes. Figure 1 LED4A1 (Olympus Adapter) Figure 2 LED4A2 (Leica Adapter) © 2011 Thorlabs... - Page 8 8 LED4Cx Figure 3 LED4A3 (Nikon Adapter) Figure 4 LED4A4 (Zeiss Adapter) Figure 5 LED4A5 (Nikon TI Adapter) © 2011 Thorlabs...
-
Page 9: Connector
Comment LED1 Anode LED1 Cathode LED2 Anode LED3 Anode LED3 Cathode LED4 Anode LED1 1 Wire EEPROM I/O Do not use DGND Do not use Not connected LED2 Cathode Not connected Not connected Not connected LED4 Cathode © 2011 Thorlabs... -
Page 10: Operating The Led4Cx
The unit does not need a regular maintenance by the user. It does not contain any modules and/or components that could be repaired by the user himself. If a malfunction occurs, please contact Thorlabs (see Thorlabs Worldwide Contacts at page 17) for return instructions. -
Page 11: Technical Data
Deep Red 660 nm 658 nm 670 nm ±0.1 nm ±1.5% > 100k hours 10 mW NOTE Wavelength and power stability are given as the emission stability (reproducibility) for T = 25° and a warm-up time of 15min. © 2011 Thorlabs... -
Page 12: Led Spectra
The following wavelengths cannot be combined: 385 nm & 405 nm 455 nm & 470 nm 455 nm & 505 nm 470 nm & 505 nm 505 nm & 530 nm 617 nm & 625 nm 625 nm & 660 nm © 2011 Thorlabs... -
Page 13: Item Numbers And Wavelength Combinations
627 nm LED4C24 405 nm 470 nm 590 nm 627 nm LED4C25 405 nm 455 nm 590 nm 660 nm LED4C26 405 nm 470 nm 590 nm 660 nm LED4C27 405 nm 455 nm 617 nm 660 nm © 2011 Thorlabs... - Page 14 627 nm LED4C51 405 nm 455 nm 530 nm 660 nm LED4C52 405 nm 470 nm 530 nm 660 nm LED4C53 455 nm 590 nm 617 nm 660 nm LED4C54 470 nm 590 nm 617 nm 660 nm © 2011 Thorlabs...
-
Page 15: Warranty
During this warranty period Thorlabs will see to defaults by repair or by exchange if these are still entitled to warranty. For warranty repairs or service the unit must be sent back to Thorlabs Germany or to a place determined by Thorlabs. The customer will carry the shipping costs back to Thorlabs, in case of warranty repairs Thorlabs will carry the shipping costs back to the customer. -
Page 16: Thorlabs "End Of Life" Policy (Weee)
Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 17: Thorlabs Worldwide Contacts
Thorlabs Worldwide Contacts 17 9 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. sales@thorlabs.com sales.uk@thorlabs.com techsupport@thorlabs.com...
