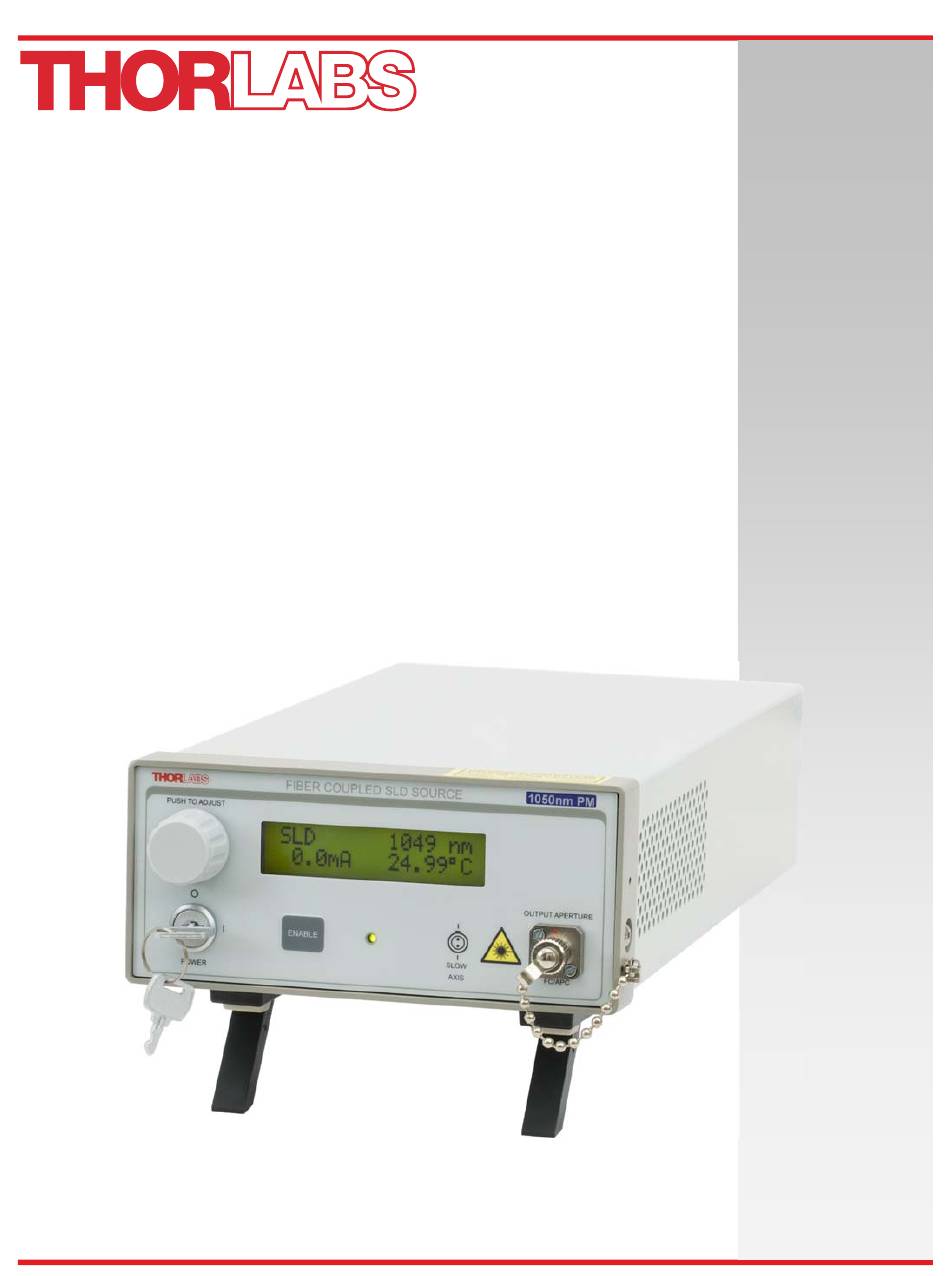

- Page 1 S5FC Series Single Channel Fiber-Coupled SLD Sources Operating Manual...
-
Page 2: Table Of Contents
9.2. Connector Cleaning ...................... 13 Chapter 10 Specifications ........................ 14 Mechanical Drawing ...................... 16 Chapter 11 Chapter 12 Regulatory ........................17 12.1. Waste Treatment is Your Own Responsibility ............17 12.2. Ecological Background ....................17 Chapter 13 Thorlabs Worldwide Contacts ..................18... -
Page 3: Chapter 1 Warning Symbol Definitions
Fiber Coupled SLD Source Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Note: Throughout this manual, references to temperature are with respect to °C. Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current... -
Page 4: Chapter 2 Safety
Fiber Coupled SLD Source Chapter 2: Safety Chapter 2 Safety All statements regarding safety of operation and technical data in this instruction manual will only apply when the unit is operated correctly. SHOCK WARNING High voltage inside. To avoid electrical shock, before powering unit, make sure that the protective conductor of the 3-conductor power cord is correctly connected to the protective earth contact of the socket outlet. -
Page 5: Chapter 3 Description
Chapter 3 Description The Thorlabs Fiber Coupled SLD Sources provide easy coupling and simple control of Superluminescent Diode (SLD) driven fiber optics. Each system is equipped with a single fiber output and is available in 1050 nm, 1310 nm, and 1550 nm center wavelength. The benchtop unit for the 1050 nm SLD has a polarization-maintaining (PM) fiber output, while units containing an SLD with a 1310 nm and 1550 nm center wavelength are offered with either single mode (SM) or PM fiber. -
Page 6: Chapter 4 Setup
Setting the AC Line Voltage The S5FC Series SLD Source has been shipped configured for 100 to 240 VAC operation. There is no end user adjustment of the line voltage for 110 or 220 VAC. The user needs to select the correct AC cord for their location. -
Page 7: Chapter 5 Operation
Fiber Coupled SLD Source Chapter 5: Operation Chapter 5 Operation Digit Display with Backlight 5.1. Front and Back Panel Overview Displays channel, output power, wavelength, and temperature. SLD Enable Switch Control Knob/Switch Press to activate. SLD Emission Indicator Selects channel, adjusts current Indicates activation. -
Page 8: Turning On The Source
5.2. Turning On the Source 1. Turn the POWER key switch clockwise. The LCD display will scroll “Thorlabs” across the screen, followed by the software revision number. 2. Make sure the Interlock Input is short-circuited; see page 9 for detailed instructions. -
Page 9: Turning The Sld Off
Fiber Coupled SLD Source Chapter 5: Operation Note, as above there is a timeout where the display will revert to the viewing display and lock out adjustment to the temperature. 3. Pressing the control knob again will exit the adj ustment mode and revert b ack to the viewin g mode, locking in the selected parameters. - Page 10 Fiber Coupled SLD Source Chapter 5: Operation 4. For Threshold Offset - Apply the appropriate signal to the MOD IN input. If too mu ch voltage is applied internal current limiting will prevent da mage to the SLD diod e and the SLD diode will be immediately disabled.
-
Page 11: Chapter 6 Making The Safety Interlock Connections
Making the Safety Interlock Connections The S5FC series SLD sources are equipped with a remote interlock connector located on the rea r panel, see Figure 2. All units have this feature regardless of their FDA and IEC classifications. In order to enable the S5FC source, a sh ort circuit mu st be applie d across the termin als of the Remote Interloc k connector. -
Page 12: Chapter 7 Remote Communications
Fiber Coupled SLD Source Chapter 7: Remote Communications Chapter 7 Remote Communications 7.1. Installing the USB Drivers Prior to running the command line interface, the USB drivers must be installed. The S5FC must not be connected to the PC while installing th e drivers. Insert the CD that was supplied with your unit into your PC. From the dialog box that is displayed, select the Install Drivers button. -
Page 13: Keywords (Commands And Queries)
Fiber Coupled SLD Source Chapter 7: Remote Communications 7.3. Keywords (Commands and Queries) The following list shows all of the available commands and queries, and summarizes their functions: Command Syntax Description Get ID Returns the model number and firmware version. Get Commands List the available commands Set Target... -
Page 14: Chapter 8 Troubleshooting
ON position. replacing open fuses. If the problem persists, please return the unit to Thorlabs for evaluation. 1. Make sure that the AC Line Cord is properly plugged in and Key Switch is turned to “ON” position Unit does not enable the Source when 2. -
Page 15: Chapter 9 General Maintenance
DO NOT connect a fiber patch cord to the unit while the laser is enabled. Failure to follow these precautions may result in permanent damage to the unit. Thorlabs recommends using our FCC-7020 (pictured below) to clean the fib er tip of your F C/PC patch cord. To clean your connector: 1. -
Page 16: Chapter 10 Specifications
Fiber Coupled SLD Source Chapter 10: Specifications Chapter 10 Specifications Item # S5FC1050P S5FC1021S(P) Parameter Operating Current (mA) 1030 1050 1070 1290 1330 Center Wavelength (nm) 12.5 Output Power (mW) - 80 Optical Bandwidth @ -3 dB (nm) Item # S5FC1018S(P) Parameter Operating Current (mA) - Page 17 Fiber Coupled SLD Source Chapter 10: Specifications General Specifications 100 - 240 VAC, 50 - 60 Hz AC Input 20 VA Max Input Power 250 mA Fuse Ratings IEC60127-2/III (250 VA, Slow Blow Type ‘T’) Fuse Type 5 mm x 20 mm Fuse Size 5.8"...
-
Page 18: Chapter 11 Mechanical Drawing
Fiber Coupled SLD Source Chapter 11: Mechanical Drawing Chapter 11 Mechanical Drawing Figure 3 Mechanical Drawing Page 16 19844-D02... -
Page 19: Chapter 12 Regulatory
12.1. Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 20: Chapter 13 Thorlabs Worldwide Contacts
Fiber Coupled SLD Source Chapter 13: Thorlabs Worldwide Contacts Chapter 13 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. - Page 21 www.thorlabs.com...
