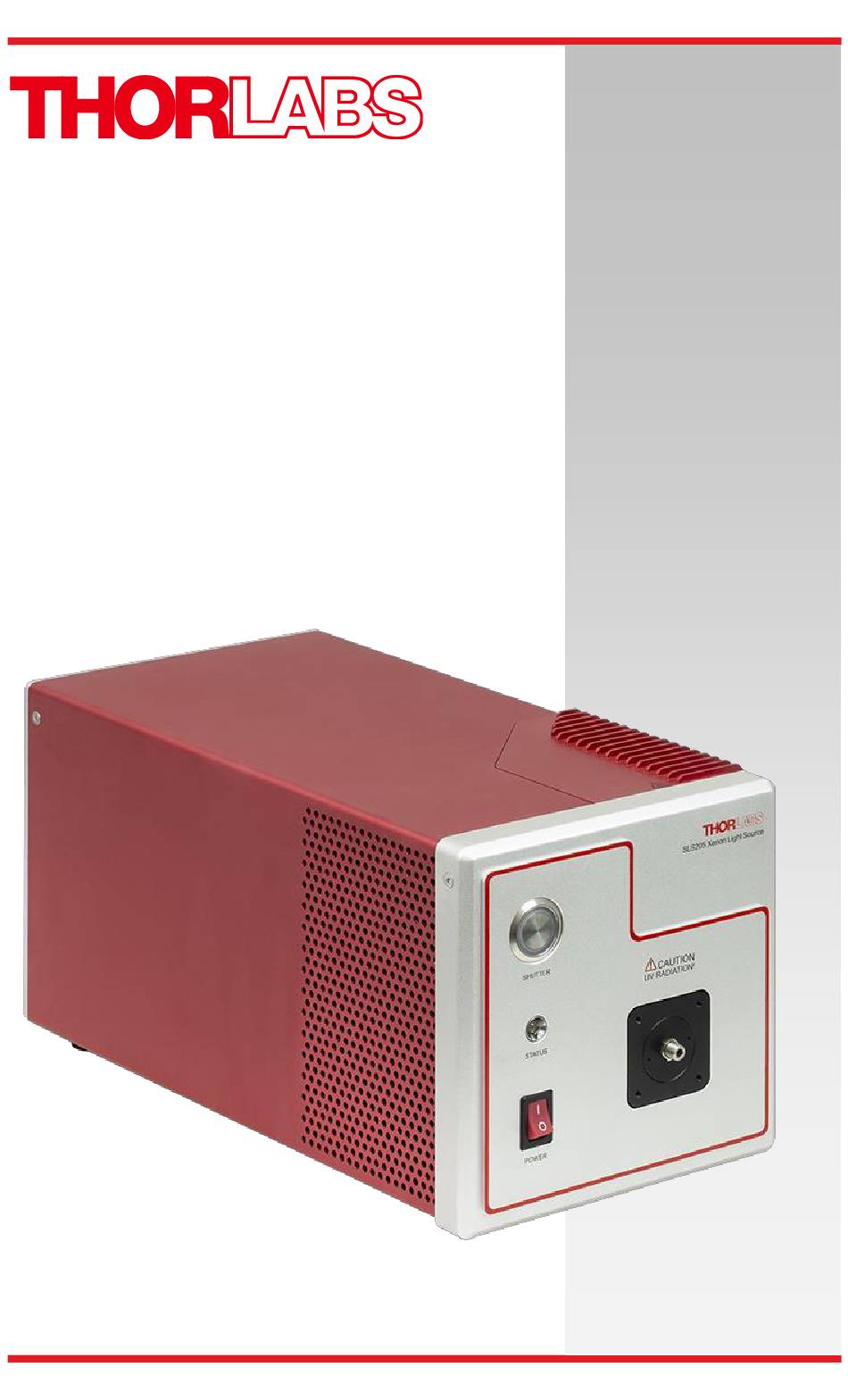

- Page 1 SLS205 75 W Xenon Light Source User Guide...
-
Page 2: Table Of Contents
Maintenance ..............14 5.1. Fuse Replacement ............14 5.2. Bulb Replacement ............15 Chapter 6 Specifications ..............18 Chapter 7 Mechanical Drawing ............19 Chapter 8 Certifications and Compliances ........20 Chapter 9 Regulatory ............... 22 Chapter 10 Thorlabs Worldwide Contacts........23... -
Page 3: Chapter 1 Warning Symbol Definitions
75 W Xenon Light Source Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or Chassis Terminal... -
Page 4: Chapter 2 Safety
75 W Xenon Light Source Chapter 2: Safety Chapter 2 Safety The lamp comes with a switching power supply compatible with voltages from 100 to 240 VAC. There is no need to change the fuse. WARNING Do not operate this device in explosive environments. WARNING Do not operate this device in wet or damp conditions. - Page 5 75 W Xenon Light Source Chapter 2: Safety WARNING: SHOCK High voltage inside. To avoid electrical shock, before powering unit, make sure that the protective conductor of the 3-conductor power cord is correctly connected to the protective earth contact of the socket outlet. Improper grounding can cause electric shock resulting in severe injury or even death.
-
Page 6: Chapter 3 Product Overview
3.2. Spectrum The SLS205 Xenon Light Source provides continuous emission over the 240 to 1200 nm spectral region with intense lines between 800 and 1000 nm. Figure 2 shows the typical output spectrum of the SLS205. -
Page 7: Optical Configuration
Then, a second lens focuses the collimated beam into a multimode fiber patch cable. The rear mirror helps to increase the coupling efficiency, providing a fiber coupled broadband light source. The SLS205 light source includes a M111L01 fiber patch cable. Figure 3 SLS205 Internal Optics... -
Page 8: Chapter 4 Operation
Chapter 4 Operation 4.1. Parts List The package contains the items listed in the table below. Name Quantity SLS205 Light Source SLS255B Bulb Module M111L01 Fiber Patch Cable 2 mm (5/64") Hex Key Location-Specific Power Cord 4.2. Operating Elements Shutter Switch... -
Page 9: Bulb Installation
75 W Xenon Light Source Chapter 4: Operation AC Power Outlet Ventilation Hole BNC Port For Fuse External CMOS Shutter Control Label BNC Port for Bulb Power Monitor Figure 5 Back Panel 4.3. Bulb Installation WARNING Always power off the unit and disconnect the power cord before installing the bulb. - Page 10 75 W Xenon Light Source Chapter 4: Operation The bulb module must be installed before operation. Please follow the steps listed in this section. Make sure the light source is powered off and the power cord is disconnected. Use the included 5/64" (2 mm) hex key to loosen the 2 panel screws on the side of the light source.
- Page 11 75 W Xenon Light Source Chapter 4: Operation Figure 8 Take out the Bulb from Packaging Loosen the four cap screws that hold the shipping restraints to the bulb base with included 2.5 mm hex key. Carefully remove the two shipping restraints.
- Page 12 75 W Xenon Light Source Chapter 4: Operation Figure 10 Silicone Cushion on Bulb Anode Carefully slide in the bulb module into the optics base. Always hold the module by the base. Do not hold the bulb by the glass envelope. Figure 11 Install the Bulb Page 10...
-
Page 13: Switching On The Light Source
75 W Xenon Light Source Chapter 4: Operation Mount the heat sink on the anode and ensure it is securely in place, then tighten the thumbscrew by turning it clockwise by hand. Figure 12 Mount the Heat Sink and Tighten the Thumbscrew Slide in the bulb cover back onto the housing and tighten the panel screws. - Page 14 OFF as well. To power off the unit, toggle the rocker switch to “O” position. Two shutter control modes are available for the SLS205 Xenon Light Source: manual control using the switch on the front panel and external control using the 0 - 5 V CMOS BNC port on the back panel.
-
Page 15: Status Indicator
The SLS205 Xenon Light Source provides compatibility with Thorlabs’ cage system and standard SM1 (1.035"-40) optomechanics. The fiber adapter on the front panel is an SMA-SM1 fiber adapter and can be removed with a Thorlabs SPW909 Spanner Wrench to expose the internal SM1 thread. -
Page 16: Chapter 5 Maintenance
75 W Xenon Light Source Chapter 5: Maintenance Chapter 5 Maintenance 5.1. Fuse Replacement WARNING Always power off the unit and disconnect power cord before operating a fuse replacement. The fuse is located in the fuse drawer below the power inlet. To replace the fuse, press the two clips on the drawer and pull it out, as shown in Figure Figure 15... -
Page 17: Bulb Replacement
Thorlabs defines the end of life condition of the bulb as a drop in intensity to ≤50% of the initial output. When the lifetime of the bulb is reached, the LED indicator on the front panel will turn red. - Page 18 75 W Xenon Light Source Chapter 5: Maintenance Figure 16 Remove the Bulb Cover 3. While holding the anode heat sink, loosen the black thumbscrew by hand, turning it counter-clockwise. Remove the heat sink and mount it on the internal side of the front panel. 4.
- Page 19 75 W Xenon Light Source Chapter 5: Maintenance 5. Put the silicone cushion from orginal package on the bulb anode. Figure 18 Put Silicone Cushion on Bulb Anode 6. Install the shipping restraints. Please note that the two shipping restraints are NOT identical to each other: the left piece is slightly shorter in the top arm than the right piece is.
-
Page 20: Chapter 6 Specifications
Standard deviation of optical power measured at room temp. over a 1 hour period (after 45 minutes of warm-up) with a 1 Hz sampling rate. Thorlabs defines the end of life condition of this light source as a drop in intensity to ≤50% of the initial output at 532 nm. -
Page 21: Chapter 7 Mechanical Drawing
75 W Xenon Light Source Chapter 7: Mechanical Drawing Chapter 7 Mechanical Drawing Figure 1 Mechanical Drawing Rev C, September 9, 2020 Page 19... -
Page 22: Chapter 8 Certifications And Compliances
75 W Xenon Light Source Chapter 8: Certifications and Compliances Chapter 8 Certifications and Compliances Page 20 CTN014628-D02... - Page 23 75 W Xenon Light Source Chapter 8: Certifications and Compliances Rev C, September 9, 2020 Page 21...
-
Page 24: Chapter 9 Regulatory
Waste Treatment is Your Own Responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 25: Chapter 10 Thorlabs Worldwide Contacts
75 W Xenon Light Source Chapter 10: Thorlabs Worldwide Contacts Chapter 10 Thorlabs Worldwide Contacts USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. 56 Sparta Avenue 1 Saint Thomas Place Newton, NJ 07860 Ely CB7 4EX... - Page 27 www.thorlabs.com...
