Summary of Contents for THORLABS CHROLIS

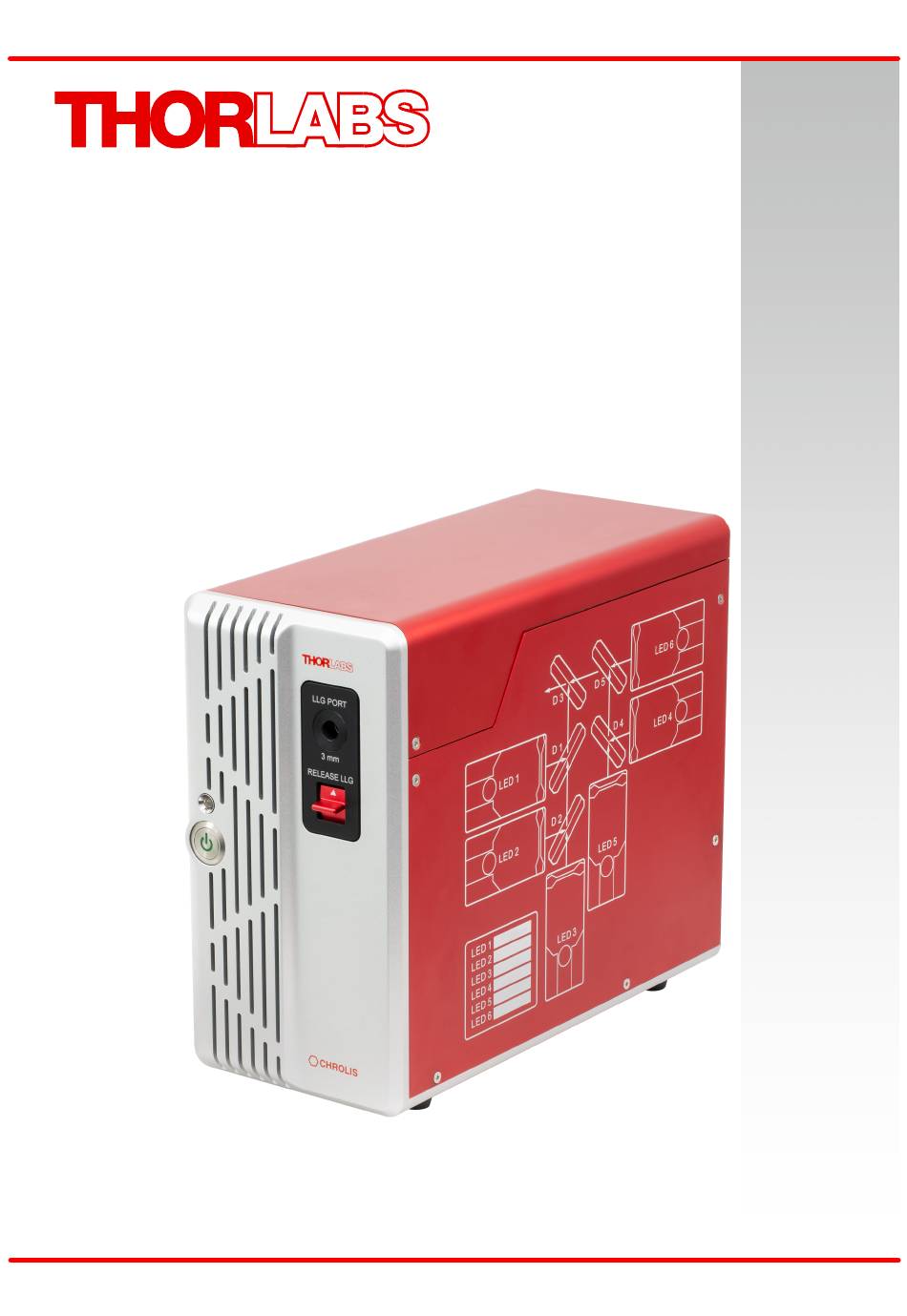

- Page 1 6-Wavelength High-Power LED Source Chrolis Operation Manual 2020...
- Page 2 Version: Date: 28-May-2020 Copyright © 2020 Thorlabs...
-
Page 3: Table Of Contents
5 Appendix 5.1 Technical Data Chrolis 5.2 Technical Data CHROLIS-C1 5.3 Technical Data CHROLIS-C2 5.4 Technical Data CHROLIS 5.5 Chrolis LEDs and Dichroic Mirrors 5.6 Safety 5.7 Warning Labels 5.8 Return of Devices 5.9 Manufacturer Address 5.10 Certifications and Compliances 5.11 Limited Warranty... - Page 4 Paragraphs preceded by this symbol explain hazards that could damage the instrument and the connected equipment or may cause loss of data. Note This manual also contains "NOTES" and "HINTS" written in this form. Please read this advice carefully! © 2020 Thorlabs...
-
Page 5: General Information
In addition to generating CW light, the Chrolis has extensive pulse capabilities. The Chrolis is a modular device and allows the user to configure a light source with LED mod- ules of different wavelengths and corresponding dichroic mirrors most suitable for the individual application. -
Page 6: Optional Accessories
Please find a variety of Thorlabs' bandpass filters on the Thorlabs website: https://www.thorlabs.com/navigation.cfm?guide_id=2210 1.2 Requirements The requirements for the PC intended to be used for remote operation of the Chrolis are as fol- lows: Hardware Requirements CPU: 2.4 GHz or Faster RAM: Min. -
Page 7: Getting Started
Please verify that you have received the following items within the package: CHROLIS-C1 Chrolis 6-Wavelength High-Power LED Source 6 LED Modules mounted in Chrolis: Wavelengths: 365 nm, 405 nm, 475 nm, 565 nm, 625 nm, 780 nm 5 Dichroic Mirrors mounted in Chrolis LLG03-4H Liquid Light Guide USB 2.0 Cable for Connection of the Chrolis to the PC... - Page 8 Chrolis CHROLIS-C2 Chrolis 6-Wavelength High-Power LED Source 6 LED Modules mounted in Chrolis: Wavelengths: 385 nm, 420 nm, 475 nm, 525 nm, 590 nm, 625 nm 5 Dichroic Mirrors mounted in Chrolis LLG03-4H Liquid Light Guide USB 2.0 Cable for Connection of the Chrolis to the PC...
-
Page 9: Operating Instructions
3 Operating Instructions 3 Operating Instructions 3.1 Operating Elements Chrolis Side View Closed Chrolis Side View Open © 2020 Thorlabs... - Page 10 Chrolis Chrolis Front View Chrolis Back View © 2020 Thorlabs...
-
Page 11: Chrolis Setup
LLG as light exposure might be harmful to eyes. 2. Lift the handle "RELEASE LLG". 3. Insert the LLG into the Chrolis. Please use the end that is labeled by a yellow band. 4. Release the handle. 5. Turn on the Chrolis using the ON/OFF switch located on the front of the Chrolis. -
Page 12: Inserting Bandpass Filters
7. Use the Chrolis software to activate the LEDs. Attention Prior to turning on the Chrolis and using the Chrolis software, ensure that the free end of the LLG is pointing away from all people or reflective surfaces in the room. -
Page 13: Interlock
Note Do not connect the Chrolis to the PC during software installation! Please make sure that the in- stallation is carried out completely, including the reboot requests. Exit all running applications on your PC as the installer may require a reboot of your PC during installation! ·... -
Page 14: Chrolis Shut Down
LEDs. To turn off the main power supply, use the switch on the Chrolis back panel Note When switching off the LEDs in the Chrolis software there is a faint afterglow which may last several seconds until the LEDs are completely off. © 2020 Thorlabs... -
Page 15: Maintenance And Service
4 Maintenance and Service 4 Maintenance and Service Protect the Chrolis from adverse weather conditions. The Chrolis is not water resistant. Attention To avoid damage to the instrument, do not expose it to spray, liquids or solvents! Please use a dry, lint free cloth to clean the outside or pressured air to gently blow off any debris or dust from the inside of the Chrolis. -
Page 16: Appendix
Chrolis 5 Appendix 5.1 Technical Data Chrolis General Technical Specifications for CHROLIS, CHROLIS-C1 and CHROLIS-C2 CHROLIS Specifications Output Coupling 3 mm Liquid Light Guide (LLG03-4H included) Compatible Bandpass Filter Size Ø1" or Ø25 mm, Thickness: up to 0.248" or 6.3 mm PC Interface Full-Speed USB 2.0 (12 Mbps) (Cable Included) -
Page 17: Technical Data Chrolis-C1
) Typical output power without bandpass filter from the Liquid Light Guide LLG03-4H for configuration CHROLIS- Dichroic Mirrors Dichroic Mirror Position Cut-on wavelength (nm) All technical data are valid at 23 ± 5°C and 45 ± 15% rel. humidity (non condensing). The Chrolis is to be used in- doors only. © 2020 Thorlabs... -
Page 18: Technical Data Chrolis-C2
) Typical output power without bandpass filter from the Liquid Light Guide LLG03-4H for configuration CHROLIS- Dichroic Mirrors Dichroic Mirror Position Cut-on wavelength (nm) All technical data are valid at 23 ± 5°C and 45 ± 15% rel. humidity (non condensing). The Chrolis is to be used in- doors only. © 2020 Thorlabs... -
Page 19: Technical Data Chrolis
5 Appendix 5.4 Technical Data CHROLIS For the configurable CHROLIS, all specifications under 5.1 are valid. The technical data for the configured LEDs and dichroic mirrors are listed below and on the Thorlabs website. 5.5 Chrolis LEDs and Dichroic Mirrors... -
Page 20: Safety
Refer servicing to qualified personnel! Only use the device in closed rooms. Changes to this device can only be made using components supplied by Thorlabs and spe- cified in chapter “Ordering Codes and Accessories”. The use of alternative components not supplied by Thorlabs is not permitted. -
Page 21: Warning Labels
Risk Group in accordance to the standard IEC 62471:2006. UV/Vis/IR Warning Statement The Chrolis may emit intense UV, Vis or IR radiation during operation, depending on the LEDs used. Precautions must be taken to prevent looking directly at the emitted light. If viewing the UV/Vis/IR light is necessary, respective light protective glasses must be worn to avoid eye dam- age. -
Page 22: Manufacturer Address
5.9 Manufacturer Address Manufacturer Address Europe EU-Importer Address Thorlabs GmbH Thorlabs GmbH Münchner Weg 1 Münchner Weg 1 D-85232 Bergkirchen D-85232 Bergkirchen Germany Germany Tel: +49-8131-5956-0 Tel: +49-8131-5956-0 Fax: +49-8131-5956-99 Fax: +49-8131-5956-99 www.thorlabs.de www.thorlabs.de Email: europe@thorlabs.com Email: europe@thorlabs.com © 2020 Thorlabs... -
Page 23: Certifications And Compliances
5 Appendix 5.10 Certifications and Compliances © 2020 Thorlabs... -
Page 24: Limited Warranty
Chrolis 5.11 Limited Warranty Thorlabs warrants material and production of the CHROLIS light engine for a period of 24 months starting with the date of shipment in accordance with and subject to the terms and con- ditions set forth in Thorlabs’ General Terms and Conditions of Sale which can be found at tps://www.thorlabs.com/Images/PDF/LG-PO-001_Thorlabs_terms_and_%20agreements.pdf. -
Page 25: Thorlabs Worldwide Contacts - Weee Policy
Contact Thorlabs for more information. Waste treat- ment is your own responsibility. “End of life” units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. - Page 26 www.thorlabs.com...
