PSY240E LED Strip with Switch Extension Chapter 1: Safety Chapter 1 Safety For the continuing safety of the operators of this equipment, and the protection of the equipment itself, the operator should take note of the Warnings, Cautions and Notes throughout this handbook and, where visible, on the product itself.
PSY240E LED Strip with Switch Extension Chapter 2: Installation Chapter 2 Installation 2.1. Environmental Conditions Warning Operation outside the following environmental limits may adversely affect operator safety. Location Indoor use only Maximum altitude 2000 m Temperature range 15°C to 40°C Maximum Humidity Less than 80% RH (non-condensing) at 31°C...

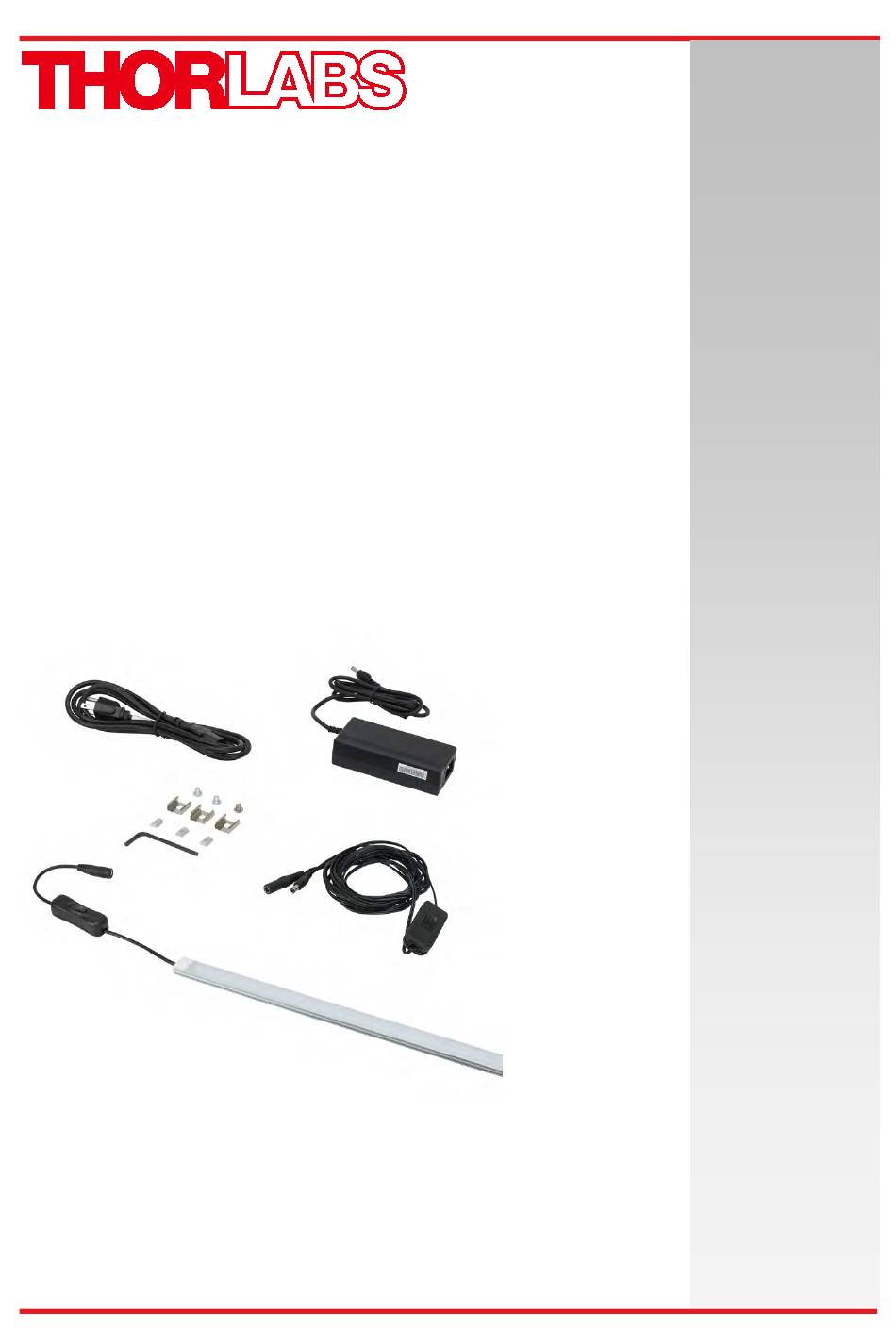

PSY240E LED Strip with Switch Extension Chapter 2: Installation 2.2.1. Required Parts: Code Description XE25T1/M Drop-in Nut M6 x 1.0 Button Screw, 6mm Long LED mounting clip LED light strip LED switch extension 12V Power Supply XE25S2 Slot Cover Profile...
Page 7
PSY240E LED Strip with Switch Extension Chapter 2: Installation The cable routing will be determined by the chosen light position. The connection order is as follows: Light strips (BD) – switch extension (BF) – 12V power supply (BG). An example of the light strip position, and corresponding routing of cable is shown below.
PSY240E LED Strip with Switch Extension Chapter 2: Installation LED Light Strip Attachment 2.2.2. Insert qty 3 XE25T1/M Drop-in Nuts (BA) in the slot that corresponds to your chosen position: The nuts should be spaced approx. 350 mm [13.8"] apart.
Page 9
PSY240E LED Strip with Switch Extension Chapter 2: Installation Using qty 3 LED mounting clips (BC) and qty 3 M6x6 Button Screws (BB), secure the light clips to the XE25T1/M Drop-in Nuts inserted above. A 4mm hex driver is supplied to tighten the screws.
Page 10
PSY240E LED Strip with Switch Extension Chapter 2: Installation The LED switch extension (BF) has been provided to enable the switching of the lights from a more accessible position. This connects between the LED light strip and 12V Power Supply (BG).
PSY240E LED Strip with Switch Extension Chapter 3: Specifications Chapter 3 Specifications General Specifications Brightness 1530 Lumens Number of LEDs Power 15.3 W Voltage 12 VDC (Power Supply Included) Dimensions (LED Light Strip Only) 850 mm x 17.4 mm x 8.2 mm (33.46”...
PSY240E LED Strip with Switch Extension Chapter 4: Regulatory Chapter 4 Regulatory 4.1. Declarations of Compliance 4.1.1. For Customers in Europe 4.1.2. For Customers In The USA This equipment has been tested and found to comply with the limits for a Class A digital device, persuant to part 15 of the FCC rules.
Contact Thorlabs for more information. Waste treatment is your own responsibility. “End of life” units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
