• Do not place signal and power supply wiring in the same wire way.
• Use shielded cables or wires for all signal/sensor leads with shield grounded at one point only.
CONNECTIONS
Panel Mounting
Ensure that there is sufficient space behind the panel for the depth of the PML 1000, allowing for safe routing of

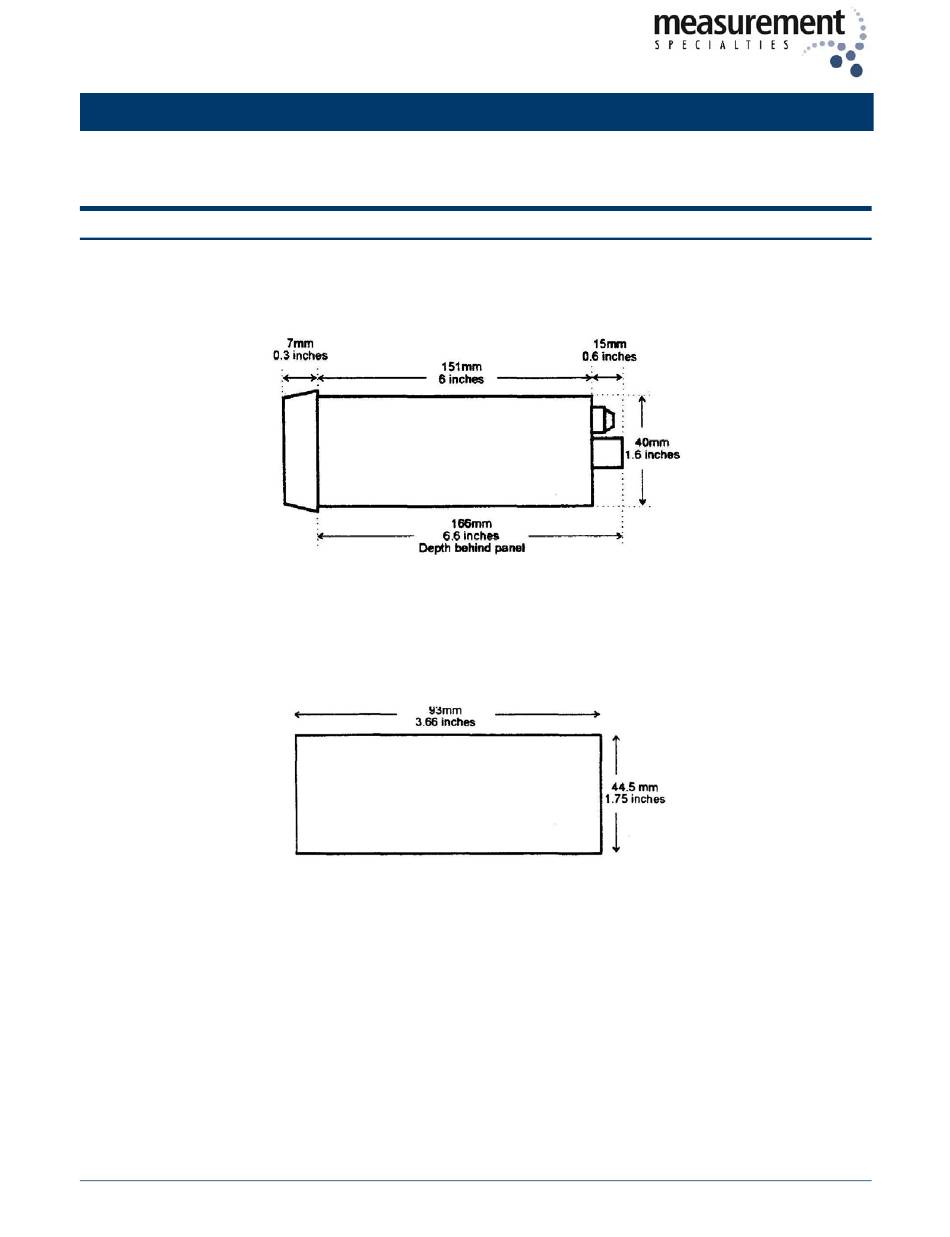

cables. The diagram below shows a side view of the meter showing its dimensions.
The PML 1000 is supplied with an installation kit consisting of two mounting clamps and a panel-sealing gasket.
To install the meter:
1. Make panel cutout with dimensions as shown below. Panel thickness from l.5mm to 9.5mm can be
accommodated.
2. Fit the rubber seal by slipping it over the unit from the rear of the box pushing it forwards until it sits behind
the front lip of the unit.
3. Insert the PML 1000 into the panel from the front, pushing it through as far as the front lip, ensuring correct
seating of the rubber seal between the panel and the unit.
4. Working from behind the panel take the two mounting brackets locate on to the case as shown below (note
orientation of keyhole slots relative to the meter case). With the brackets located, slide them backwards until
they lock into place.
5. Tighten the screws until they bite into the panel securing the PML 1000 in place. Take care not to over tighten
the screws as this may damage the case.
