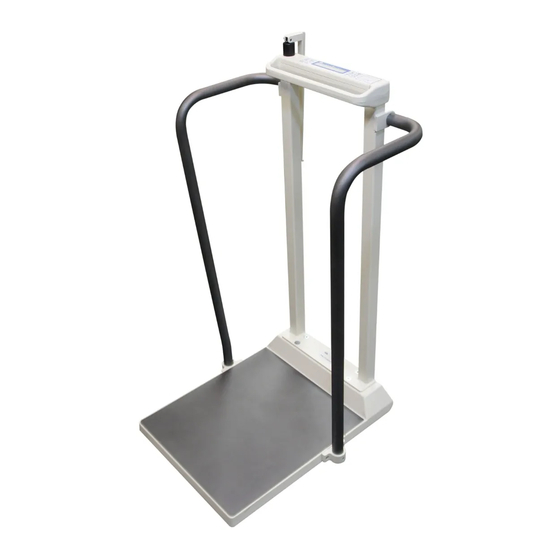

Bariatric stand-on scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

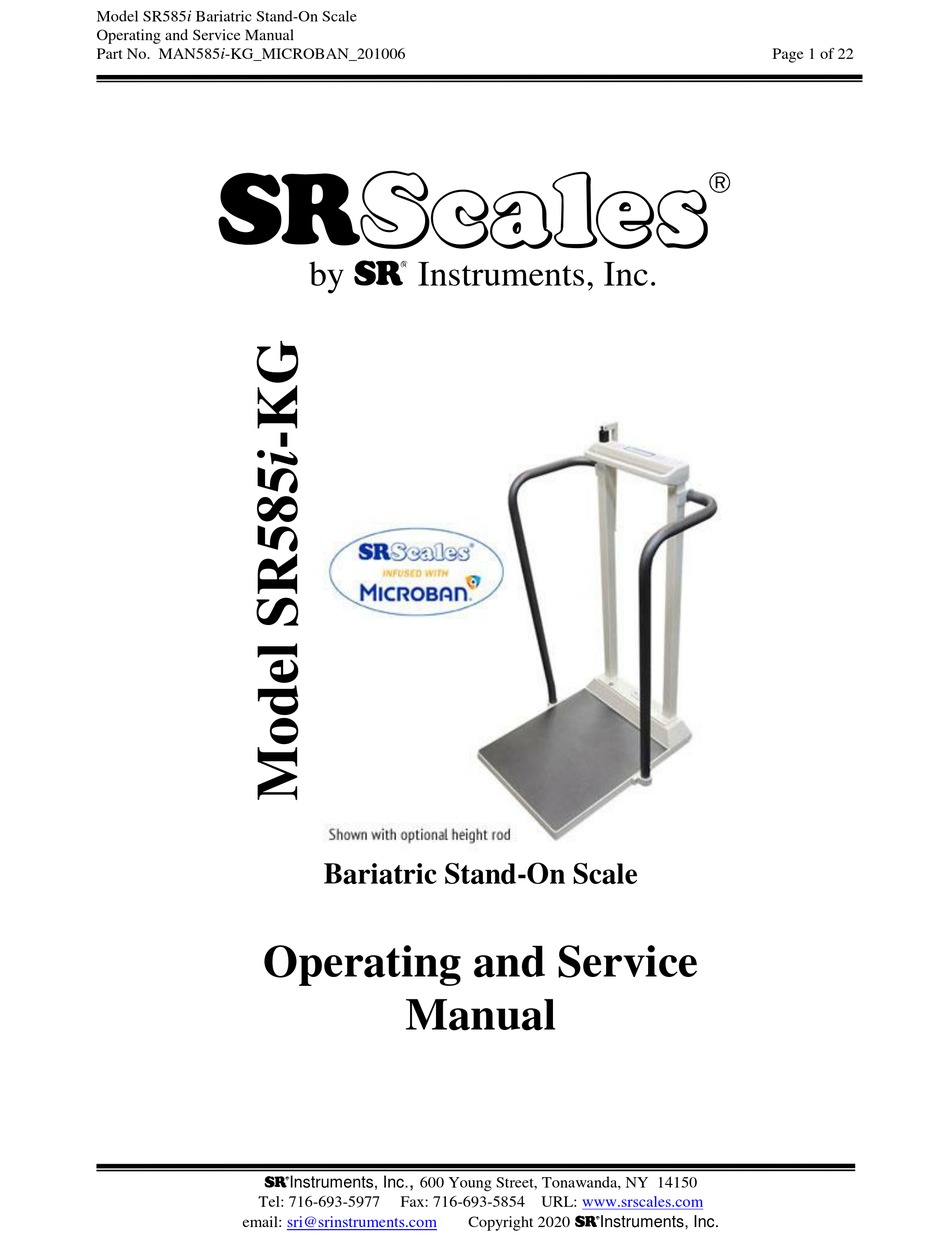

Model SR585i Bariatric Stand-On Scale
Operating and Service Manual
Part No. MAN585i-KG_MICROBAN_201006
Page 1 of 22
S
by S Instruments, Inc.
Bariatric Stand-On Scale
Operating and Service
Manual
,
SInstruments, Inc.
600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977
Fax: 716-693-5854 URL:
www.srscales.com
Copyright 2020 SInstruments, Inc.
email:
sri@srinstruments.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR Scales SR585i-KG and is the answer not in the manual?

Questions and answers

Related Manuals for SR Instruments SR Scales SR585i-KG

Summary of Contents for SR Instruments SR Scales SR585i-KG

  • Page 1 Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 1 of 22 by S Instruments, Inc. Bariatric Stand-On Scale Operating and Service Manual SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc.

  • Page 2: Table Of Contents

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 2 of 22 TABLE OF CONTENTS TABLE OF FIGURES ........................2 PACKING CHECKLIST .........................3 ASSEMBLY............................4 REPLACEMENT PARTS AND ACCESSORIES ................7 SYSTEM DESCRIPTION AND INTENDED USE ...............8 MICROBAN ANTIMICROBIAL PROTECTION ...............8 STORAGE AND TRANSPORTATION ..................8 CLEANING AND DISINFECTING ....................9 SPECIFICATIONS.........................10...

  • Page 3: Packing Checklist

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 3 of 22 PACKING CHECKLIST SR585i-KG Bariatric Stand-On Scale  DESCRIPTION QUANTITY Box 1 BASE ASSEMBLY 1 ea MAST ASSEMBLY with DISPLAY 1 ea DISPLAY UNIT WITH CABLE 1 ea HANDRAIL SET WITH HARDWARE 1 ea...

  • Page 4: Assembly

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 4 of 22 ASSEMBLY PART NAME Mast Assembly Base Assembly Height Bar Assembly (optional) 3/8-16 Screws (4) Display Unit Cable Display Cable Connector Hole Printer (optional) Printer Mounting Bracket (optional) Printer Mast Bracket (optional) Printer Cable (optional) Left Side Hand Rail...

  • Page 5: Figure 2: Display Cable Connector And Battery Compartment

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 5 of 22 ASSEMBLY (Cont’d) STEP 5: (Figure 2) Loosen the four (4) screws on Battery Compartment Cover. Remove cover. STEP 6: (Figure 2) Attach the Display Cable Connector (#6) to its mate in the Base Assembly. Slide the extra cable back up into the mast pipe.

  • Page 6: Figure 4: Printer Mast Bracket

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 6 of 22 ASSEMBLY (Cont’d) INSTALLING AC POWER SUPPLY (SR585i-KG-AC): STEP 13: Connect AC Power Supply (#13) to the bottom side of the Display Unit and plug into standard AC Wall outlet.

  • Page 7: Replacement Parts And Accessories

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 7 of 22 ASSEMBLY (Cont’d) INSTALLING OPTIONAL HEIGHT BAR ASSEMBLY STEP 1: Remove the round plug from the top left of the Display Unit. Insert the Height Bar Assembly into the hole in the Display Unit.

  • Page 8: System Description And Intended Use

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 8 of 22 SYSTEM DESCRIPTION and INTENDED USE SYSTEM DESCRIPTION The SR585i-KG Bariatric Stand-On Scale employs the latest in microprocessor and load cell technology to provide accurate and repeatable weight data. Four (4) identically matched transducers are strategically placed to ensure an accurate representation of the patient’s weight.

  • Page 9: Cleaning And Disinfecting

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 9 of 22 CLEANING and DISINFECTING CLEANING To clean the display / user interface and other scale contact areas:  Use a soft cloth dampened with water and mild detergent to clean scale surfaces. ...

  • Page 10: Specifications

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 10 of 22 SPECIFICATIONS MAXIMUM WEIGHT CAPACITY 454 kg 46 cm x 51 cm PLATFORM SIZE Telescoping gauge – 43 in to 78 in HEIGHT GAUGE (optional) 16-Character Dot Matrix LCD DISPLAY TYPE DISPLAY RESOLUTION...

  • Page 11: Button Functions

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 11 of 22 BUTTON FUNCTIONS Figure 6: Button Display ZERO / WEIGH Press and hold to zero. The display will read “WT = 0.0 Kg”. This is used to zero the system before placing the patient on the scale system.

  • Page 12: Basic System Operation

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 12 of 22 BUTTON FUNCTIONS (Cont’d) MENU Press Menu to edit setup. Setting ON TIME: Use UP or DOWN arrow buttons to adjust the “ON TIME”. The “ON TIME”...
  • Page 13 Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 13 of 22 BASIC SYSTEM OPERATION (Cont’d) WEIGHING When using AC Power Supply: Position the patient on the scale. When using batteries for power: Position the patient on the scale and press the ZERO/WEIGH button.

  • Page 14: Battery Replacement

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 14 of 22 BATTERY REPLACEMENT WARNING DO NOT remove batteries while scale is on. Allow scale to shut down naturally thru timing out. This prevents possible voltage drain on the printed circuit board coin battery.

  • Page 15: Theory Of Operation

    Page 15 of 22 THEORY OF OPERATION SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force of an applied weight into an analog signal. This signal is amplified by an operational amplifier and converted to a digital signal by an on-chip analog to digital converter. The digital signal is filtered, converted to appropriate units, and displayed on the liquid crystal display.

  • Page 16: Calibration

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 16 of 22 CALIBRATION NOTE: Ensure that nothing is in contact with the scale system during this procedure. Remove hands from the system when noting the displayed calibration results. CHECKING CALIBRATION KILOGRAM CALIBRATION STEP 1: Select known calibrated weights, traceable to NIST.
  • Page 17 Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 17 of 22 CALIBRATION (Cont’d) CAUTION The integrated circuits and semiconductors on the printed circuit boards may be damaged by electrostatic discharge (ESD). Be sure to use proper handling precautions at all times. SETTING CALIBRATION NOTE: Ensure that nothing is in contact with the scale system during this procedure.

  • Page 18: Configuring Send Button

    Electronic Medical Records (EMR) / Electronic Health Records (EHR) technology is supported by the i-series scales from SR Instruments. The EMR/ EHR software is not included with scale. There are many different EMR/ EHR software available and the connectivity of the scale to the software requires the services of a professional.

  • Page 19: Troubleshooting

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 19 of 22 TROUBLESHOOTING SYMPTOM REASON/CORRECTIVE ACTION Ensure AC power supply is firmly plugged in The characters only appear on half of the Press the “WEIGH” button or remove one battery. display.

  • Page 20: Warranty

    SR Instruments, Inc.’s part, and it neither assumes nor authorizes any other person to assume for SR Instruments, Inc. any other liabilities in connection with the sale of said articles. In no event shall SR Instruments, Inc.

  • Page 21: Notes

    Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 21 of 22 NOTES SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc. email: sri@srinstruments.com...
  • Page 22 Model SR585i Bariatric Stand-On Scale Operating and Service Manual Part No. MAN585i-KG_MICROBAN_201006 Page 22 of 22 by S Instruments, Inc. Precision & Technology in Perfect Balance ® SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc.
