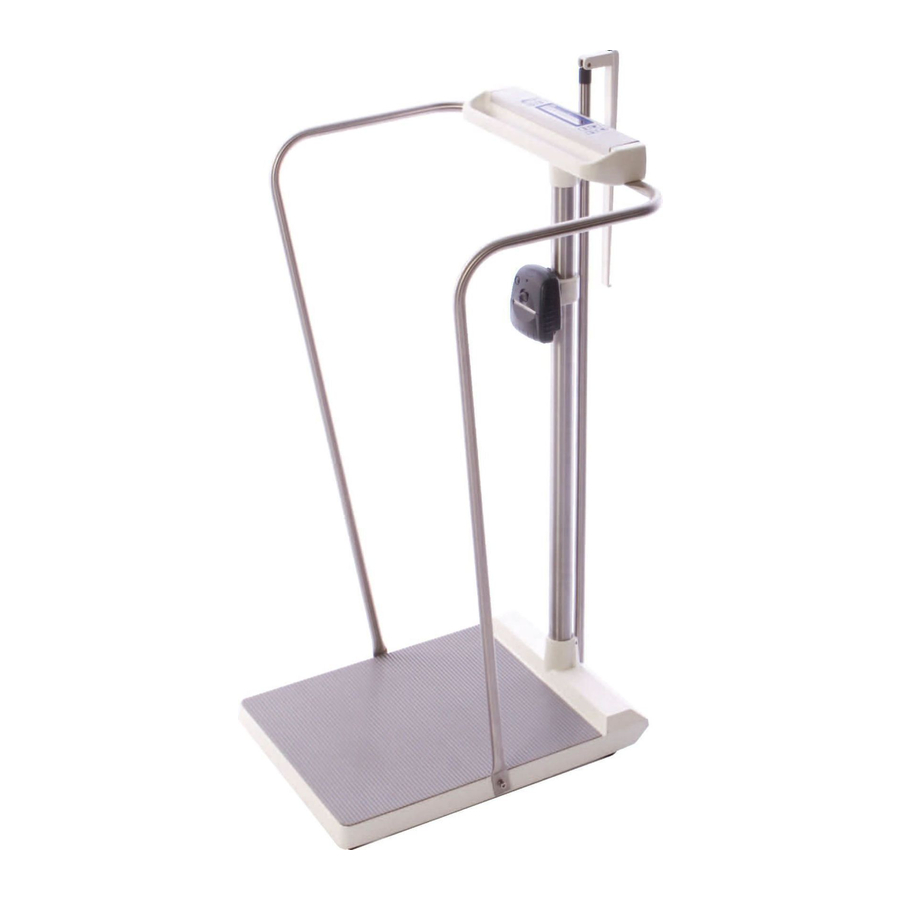

Model SR555i Stand-On Scale
Operating and Service Manual
Part No. MAN555i_MICROBAN_201001
Page 1 of 22
S
by S Instruments, Inc.
Stand-On Scale System
Operating and Service
Manual
,
SInstruments, Inc.
600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977
Fax: 716-693-5854 URL:
www.srscales.com
Copyright 2020 SInstruments, Inc.
email:
sri@srinstruments.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR Scales SR555i and is the answer not in the manual?

Questions and answers

Related Manuals for SR Instruments SR Scales SR555i

Summary of Contents for SR Instruments SR Scales SR555i

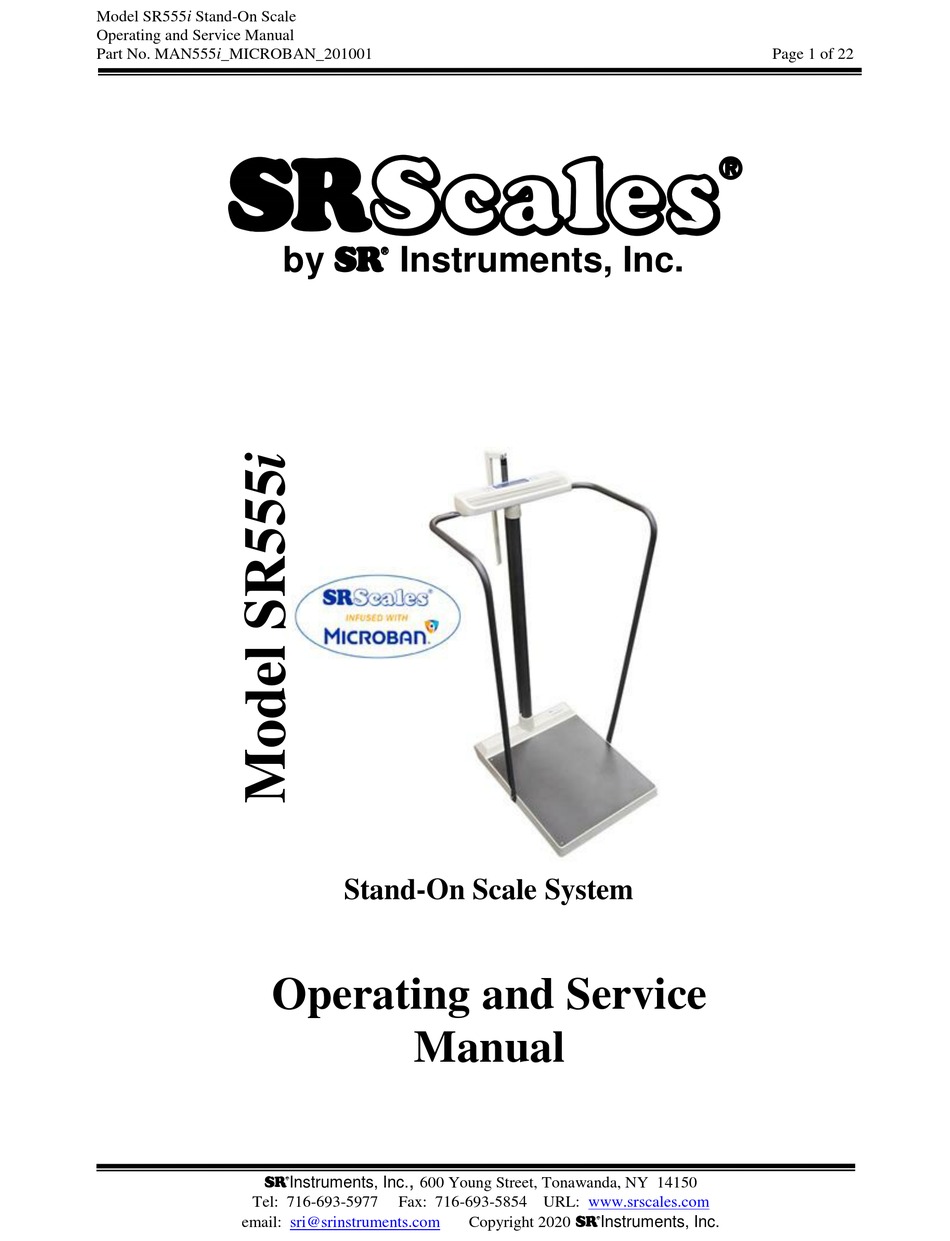

  • Page 1 Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 1 of 22 by S Instruments, Inc. Stand-On Scale System Operating and Service Manual SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc.

  • Page 2: Table Of Contents

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 2 of 22 TABLE OF CONTENTS TABLE OF FIGURES ........................2 PACKING CHECKLIST .........................3 ASSEMBLY............................4 REPLACEMENT PARTS AND ACCESSORIES ................7 SYSTEM DESCRIPTION AND INTENDED USE ...............7 MICROBAN ANTIMICROBIAL PROTECTION ...............8 STORAGE AND TRANSPORTATION ..................8 CLEANING AND DISINFECTING ....................9 SPECIFICATIONS.........................10...

  • Page 3: Packing Checklist

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 3 of 22 PACKING CHECKLIST SR555i Stand-On Scale  DESCRIPTION QUANTITY Box 1 BASE ASSEMBLY (FIVE (5) SET SCREWS IN PLACE) 1 ea MAST 1 ea DISPLAY UNIT WITH CABLE (FIVE (5) SET SCREWS IN PLACE) 1 ea PACKAGE OF SIX (6) “C”...

  • Page 4: Assembly

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 4 of 22 ASSEMBLY PART NAME Display Unit Base Assembly Mast Cable Clamp Display Cable Connector Handrails (optional) Height Bar (optional) Battery Compartment Printer (optional) 10 Printer Cable (optional) 11 Printer Mounting Collar (optional) 12 AC Power Supply STEP 1: Unpack the scale system and check...

  • Page 5: Figure 2: Cable Clamp And Display Cable Connector

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 5 of 22 ASSEMBLY (Cont’d) STEP 6: (Figure 2) Lay the system on its side and remove the Cable Clamp (4) from the Base Assembly. Attach the Display Cable Connector (5) to its mate from the Base Assembly.

  • Page 6: Figure 4: Handrail/Height Bar Diagram

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 6 of 22 ASSEMBLY (Cont’d) INSTALLING OPTIONAL HANDRAILS STEP 1: (Figure 4) Attach top of each of the Handrails (6) to the bottom right and left of the Display Unit (1).

  • Page 7: Replacement Parts And Accessories

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 7 of 22 ASSEMBLY (Cont’d) STEP 2: Apply a small amount of Loctite to the two small screws and attached the Printer Mounting Bracket to the Printer Mounting Collar. (Figure 6). STEP 3: Attach the Printer to the Printer Mounting Bracket.

  • Page 8: Microban Antimicrobial Protection

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 8 of 22 SYSTEM DESCRIPTION and INTENDED USE (Cont’d) INTENDED USE The SR555i Stand-On Scale System is specifically WARNING designed for use as a stand-on scale for weighing ambulatory patients.

  • Page 9: Cleaning And Disinfecting

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 9 of 22 CLEANING and DISINFECTING CLEANING To clean the display / user interface and other scale contact areas:  Use a soft cloth dampened with water and mild detergent to clean scale surfaces. ...

  • Page 10: Specifications

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 10 of 22 SPECIFICATIONS MAXIMUM WEIGHT CAPACITY 1000 lb or 454 kg 15 3/4 in x 18 1/2 in (40 cm x 47 cm) PLATFORM SIZE DISPLAY TYPE 16-Character Dot-Matrix LCD 0.1 lb / 0.1 kg DISPLAY RESOLUTION...

  • Page 11: Button Functions

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 11 of 22 BUTTON FUNCTIONS Figure 7: Button Display ZERO / WEIGH Press and hold to zero. The display will read “WT = 0.0 Lb”. This is used to zero the system before placing the patient on the scale system.

  • Page 12: Basic System Operation

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 12 of 22 BUTTON FUNCTIONS (Cont’d) MENU Press Menu to edit setup. Setting the UNITS: Use UP or DOWN arrow buttons to select “Lb” or “Kg”. Press ENTER to save changes. Setting ON TIME: Use UP or DOWN arrow buttons to adjust the “ON TIME”.
  • Page 13 Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 13 of 22 BASIC SYSTEM OPERATION (Cont’d) WEIGHING When using AC Power Supply: Position the patient on the scale. When using batteries for power: Position the patient on the scale and press the ZERO/WEIGH button.

  • Page 14: Battery Replacement

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 14 of 22 BATTERY REPLACEMENT WARNING DO NOT remove batteries while scale is on. Allow scale to shut down naturally thru timing out. This prevents possible voltage drain on the printed circuit board coin battery.

  • Page 15: Theory Of Operation

    Page 15 of 22 THEORY OF OPERATION SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force of an applied weight into an analog signal. This signal is amplified by an operational amplifier and converted to a digital signal by an on-chip analog to digital converter. The digital signal is filtered, converted to appropriate units, and displayed on the liquid crystal display.

  • Page 16: Calibration

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 16 of 22 CALIBRATION NOTE: Ensure that nothing is in contact with the scale system during this procedure. Remove hands from the system when noting the displayed calibration results. CALIBRATION CHECKING CALIBRATION TOLERANCE TABLE...
  • Page 17 Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 17 of 22 CALIBRATION (Cont’d) CAUTION The integrated circuits and semiconductors on the printed circuit boards may be damaged by electrostatic discharge (ESD). Be sure to use proper handling precautions at all times. SETTING CALIBRATION NOTE: Ensure that nothing is in contact with the scale system during this procedure.

  • Page 18: Configuring Send Button

    Electronic Medical Records (EMR) / Electronic Health Records (EHR) technology is supported by the i-series scales from SR Instruments. The EMR/ EHR software is not included with scale. There are many different EMR/ EHR software available and the connectivity of the scale to the software requires the services of a professional.

  • Page 19: Troubleshooting

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 19 of 22 TROUBLESHOOTING SYMPTOM REASON/CORRECTIVE ACTION Ensure AC power supply is firmly plugged in The characters only appear on half of the Press the “WEIGH” button or remove one battery. display.

  • Page 20: Warranty

    SR Instruments, Inc.’s part, and it neither assumes nor authorizes any other person to assume for SR Instruments, Inc. any other liabilities in connection with the sale of said articles. In no event shall SR Instruments, Inc.

  • Page 21: Notes

    Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 21 of 22 NOTES SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc. email: sri@srinstruments.com...
  • Page 22 Model SR555i Stand-On Scale Operating and Service Manual Part No. MAN555i_MICROBAN_201001 Page 22 of 22 Instruments, Inc. Precision & Technology in ® Perfect Balance SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc. email: sri@srinstruments.com...
