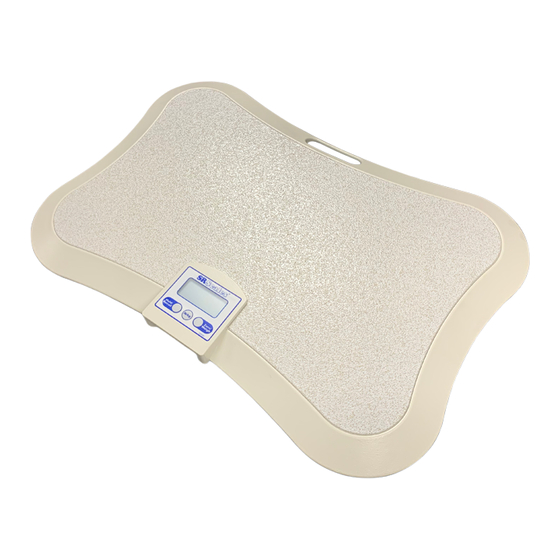

Model SRV415 Multi-Purpose Floor Scale
Service Manual
Part No. MAN415_200714
S
Operating and Service
SInstruments, Inc.
Tel: 716-693-5977 Fax: 716-693-5854 URL:
email:
by S Instruments, Inc.
Multi-Purpose Floor Scale
Manual
,
600 Young Street, Tonawanda, NY 14150
sri@srinstruments.com
www.srscales.com
Copyright 2020 SInstruments, Inc.
Page 1 of 14
Advertisement
Table of Contents
Related Manuals for SR Instruments SR Scales SRV415
Summary of Contents for SR Instruments SR Scales SRV415
- Page 1 Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 1 of 14 by S Instruments, Inc. Multi-Purpose Floor Scale Operating and Service Manual SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc. email: sri@srinstruments.com...
-
Page 2: Table Of Contents
Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 2 of 14 TABLE OF CONTENTS PACKING CHECKLIST – MODEL SRV415 ................3 ASSEMBLY............................3 SYSTEM DESCRIPTION AND INTENDED USE ...............4 STORAGE AND TRANSPORTATION ..................4 CLEANING AND DISINFECTING ....................5 SPECIFICATIONS...........................6 BUTTON FUNCTIONS ........................7 BASIC SYSTEM OPERATION ......................8 BATTERY REPLACEMENT ......................8 CALIBRATION ..........................9... -
Page 3: Packing Checklist - Model Srv415
Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 3 of 14 PACKING CHECKLIST – Model SRV415 Multi-Purpose Floor Scale DESCRIPTION QUANTITY PLATFORM SCALE 1 ea. “AA” BATTERY 6 ea. CERTIFICATE OF CALIBRATION 1 ea. WARRANTY CARD 1 ea. -
Page 4: System Description And Intended Use
Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 4 of 14 SYSTEM DESCRIPTION and INTENDED USE SYSTEM DESCRIPTION: The SRV415 Multi-Purpose Floor Scale has a low profile design, which allows for easy step access and can be used in a fixed location or as a portable scale. The SRV415 Multi-Purpose Floor Scale employs the latest in microprocessor and load cell technology to provide accurate and repeatable weight data. -
Page 5: Cleaning And Disinfecting
Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 5 of 14 CLEANING and DISINFECTING CLEANING To clean the display / user interface and other scale contact areas: Use a soft cloth dampened with water and mild detergent to clean scale surfaces ... -
Page 6: Specifications
Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 6 of 14 SPECIFICATIONS MAXIMUM WEIGHT 500 lb (227 kg) CAPACITY DIMENSIONS 26.4 in x 18.3 in x 1.6 in (67 cm x 47 cm x 4 cm) 1.0” LCD Display DISPLAY TYPE DISPLAY RESOLUTION +/- 0.1 lb (0.1 kg) -
Page 7: Button Functions
Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 7 of 14 BUTTON FUNCTIONS Figure 2: SRV415 Button Label HOLD/RECALL The “Hold/Recall” button freezes the displayed weight and stores it away in memory. Press “Hold/Recall” to store the weight into memory. To recall last weight reading, press “Hold/Recall”... -
Page 8: Basic System Operation
Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 8 of 14 BASIC SYSTEM OPERATION SETTING SYSTEM ZERO: Make sure the scale is free and clear of any obstructions. Press and hold the “Zero/Weigh” button to zero the system. In a few seconds, the display will read “0.0 Lb”... -
Page 9: Calibration
Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 9 of 14 CALIBRATION IMPORTANT CALIBRATION CHECK: Qualified service personnel only should perform this procedure. Load cells have no user serviceable components and should not be tampered with for any reason. Re-calibration is generally not required, but should be verified periodically to ensure accuracy. - Page 10 Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 10 of 14 CALIBRATION: (Cont’d) ACCESS SYSTEM SETUP To access all settings below, remove the feet, spacers and the seven screws holding on the bottom cover. Press the calibration button (Figure 3) and CAL mode is now active. The Right Button allows you to toggle through the menus without saving any parameters.
- Page 11 Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 11 of 14 CALIBRATION: (Cont’d) Gravitational Acceleration (Optional) NOTE: Setting the local gravitational acceleration, “gLOC”, will not affect the calibration. The local gravitational acceleration, “gLOC”, will become the calibrated gravitational acceleration, “gCAL” only when it is recalibrated. a) Select the Gravitational Acceleration from the CAL menu by pressing the Left Button when the display shows “grav”.
-
Page 12: Troubleshooting
Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 12 of 14 CALIBRATION: (Cont’d) Calibrate using the Three-Point Calibration Curve; zero, half scale, and full scale. NOTE: The scale can also be calibrated with a Two-point slope “2Pt”, although it will not be as accurate. -
Page 13: Warranty
SR Instruments, Inc.’s part, and it neither assumes nor authorizes any other person to assume for SR Instruments, Inc. any other liabilities in connection with the sale of said articles. In no event shall SR Instruments, Inc. - Page 14 Model SRV415 Multi-Purpose Floor Scale Service Manual Part No. MAN415_200714 Page 14 of 14 By SInstruments, Inc. Precision & Technology in Perfect Balance SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc. email: sri@srinstruments.com...
