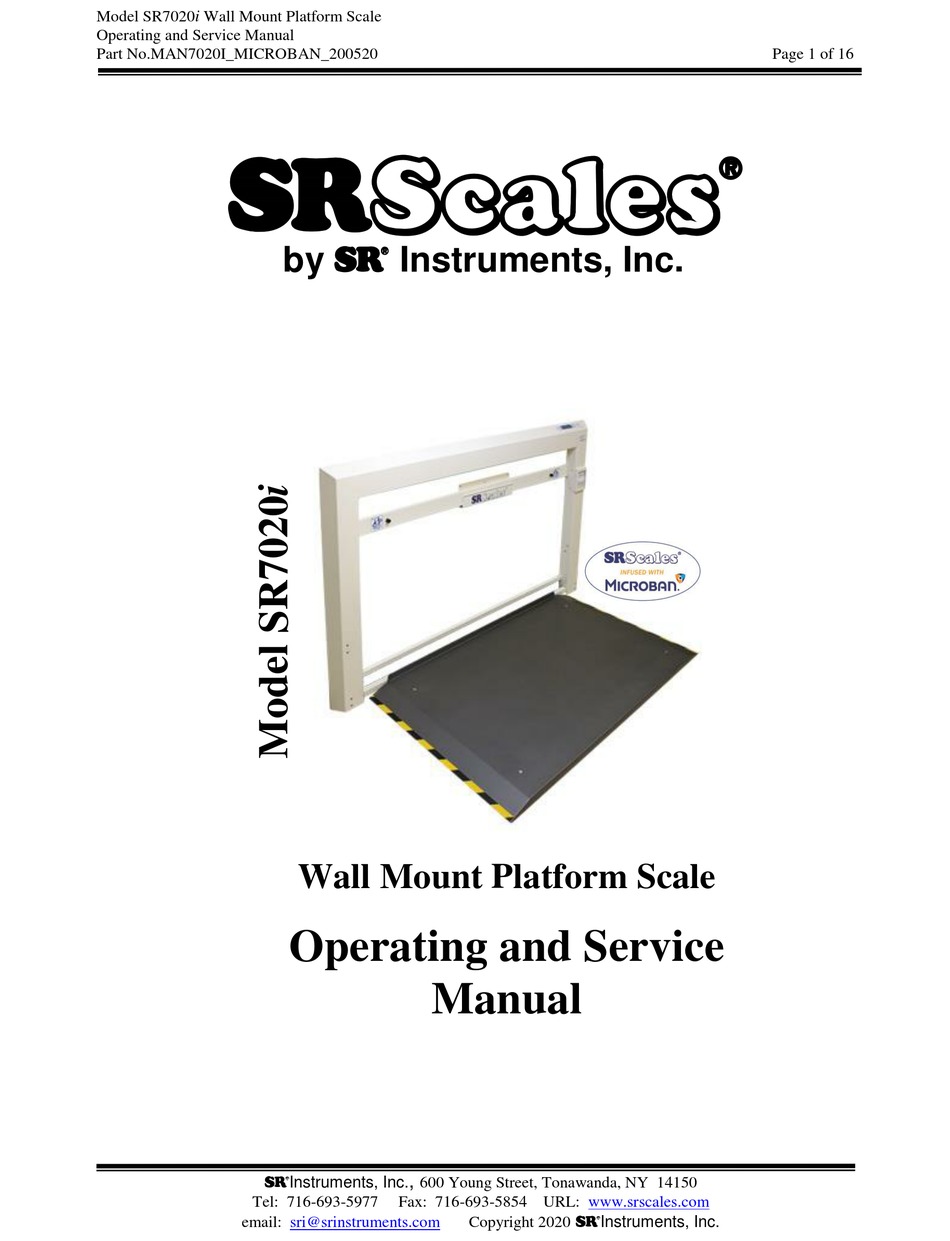

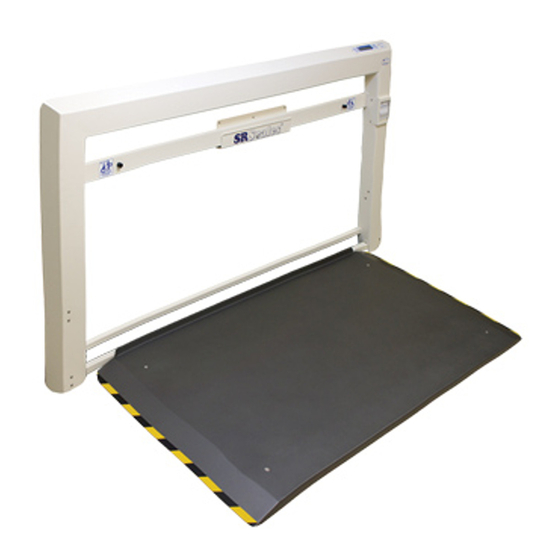

- Page 1 Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 1 of 16 by S Instruments, Inc. Wall Mount Platform Scale Operating and Service Manual SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc.
-
Page 2: Table Of Contents
Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 2 of 16 TABLE OF CONTENTS PACKING CHECKLIST .........................3 INSTALLATION ..........................3 REPLACEMENT PARTS AND ACCESSORIES ................6 SYSTEM DESCRIPTION AND INTENDED USE ...............6 MICROBAN ANTIMICROBIAL PROTECTION ...............6 MAINTENANCE AND CLEANING ......ERROR! BOOKMARK NOT DEFINED. STORAGE ............................7 SPECIFICATIONS...........................8 BUTTON FUNCTIONS ........................9... -
Page 3: Packing Checklist
Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 3 of 16 PACKING CHECKLIST SR7020i Wall Mount Platform Scale DESCRIPTION QUANTITY PLATFORM SCALE 1 ea MOUNTING BRACKET AND HARDWARE PACKET 1 ea 6 FOOT POWER SUPPLY CORD 1 ea CALIBRATION CERTIFICATE 1 ea... -
Page 4: Figure 1: Wall Bracket
Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 4 of 16 INSTALLATION (CON’T) Figure 1: Wall Bracket WARNING THE WALL BRACKET MUST BE SECURELY ANCHORED TO THE WALL USING APPROPRIATE HARDWARE STEP 3: To mount the SR7020i Wall Mount Platform Scale use the Wall Bracket (Figure 1) supplied with the scale. -
Page 5: Figure 3: Power Cord Plug In
Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 5 of 16 INSTALLATION (CON’T) STEP 6: For stud wall mounting locations without a stud, use a screwdriver to drive the provided self- drilling wall anchors into the wall. It is not recommended to use a power drill to set the wall anchors. For concrete wall mounting, install appropriate wall anchors at all marked screw locations. -
Page 6: Replacement Parts And Accessories
Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 6 of 16 REPLACEMENT PARTS and ACCESSORIES Part # Description FRTP211C1 Paper, thermal printer 58mm (15 rolls) FRME20A0903F01 Medical Grade AC Power Supply FRPCORD3 3 Foot Ultra Low Profile Angled Power Cord FRPCORD6 6 Foot Ultra Low Profile Angled Power Cord SYSTEM DESCRIPTION and INTENDED USE... -
Page 7: Storage
Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 7 of 16 CLEANING and DISINFECTING CLEANING To clean the display / user interface and other scale contact areas: Use a soft cloth dampened with water and mild detergent to clean scale surfaces. ... -
Page 8: Specifications
Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 8 of 16 SPECIFICATIONS 1000 lb or 454 kg MAXIMUM WEIGHT CAPACITY PLATFORM SIZE 38 in x 58 in (96.5 cm x 147.3 cm) 16-Character Dot-Matrix LCD DISPLAY TYPE DISPLAY RESOLUTION 0.1 lb / 0.1 kg... -
Page 9: Button Functions
Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 9 of 16 BUTTON FUNCTIONS Figure 4: Button Display WEIGH Press and hold to zero scale. Button is used to zero the system before placing the patient on the scale. -
Page 10: Basic System Operation
Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 10 of 16 BUTTON FUNCTIONS (CON’T) ENTER Press to save change in digits for calibration, for unit’s set-up, for time and date set-up and saving completed calibration data. UP / SELECT Press UP to adjust height up from the default for BMI calculation, to increase the scale’s “on time”, or to select a digit when setting time and date. -
Page 11: Theory Of Operation
Page 11 of 16 THEORY OF OPERATION SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force of an applied weight into an analog signal. This signal is amplified by an operational amplifier and converted to a digital signal by an on-chip analog to digital converter. -
Page 12: Calibration
Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 12 of 16 CALIBRATION CALIBRATION NOTE: Ensure that nothing is in contact with the scale system during this TOLERANCE TABLE procedure. Remove hands from the system when noting the displayed APPLIED HIGH calibration results. - Page 13 Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 13 of 16 CALIBRATION (CON’T) SETTING CALIBRATION NOTE: Ensure that nothing is in contact with the scale system during this procedure. Remove hands from the system when noting the displayed calibration results. STEP 1: Remove the two (2) screws on the display assembly cover.
-
Page 14: Troubleshooting
Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 14 of 16 TROUBLESHOOTING SYMPTOM REASON/CORRECTIVE ACTION Press the “WEIGH” button or disconnect power. Wait The characters only appear on half of the five seconds, then re-connect the power and try the display. -
Page 15: Warranty
15% fee will be assessed on return of current merchandise No fees will be charged if the scale is returned because of an error on the part of SR Instruments, Inc. No returns accepted after 30 days. - Page 16 Model SR7020i Wall Mount Platform Scale Operating and Service Manual Part No.MAN7020I_MICROBAN_200520 Page 16 of 16 Instruments, Inc. Precision & Technology in ® Perfect Balance SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2020 SInstruments, Inc. email: sri@srinstruments.com...
