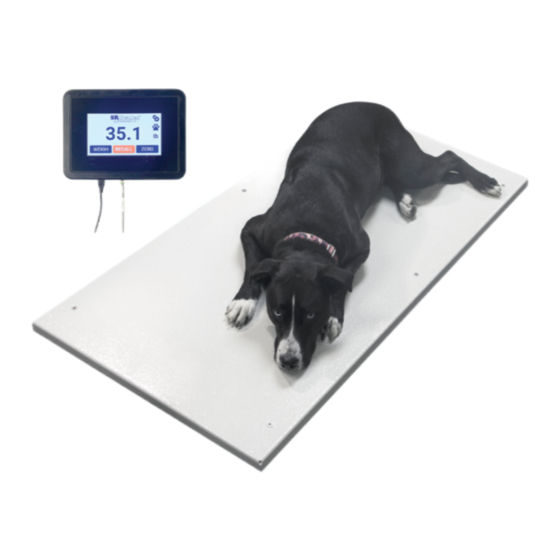

Wall mount display platform scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

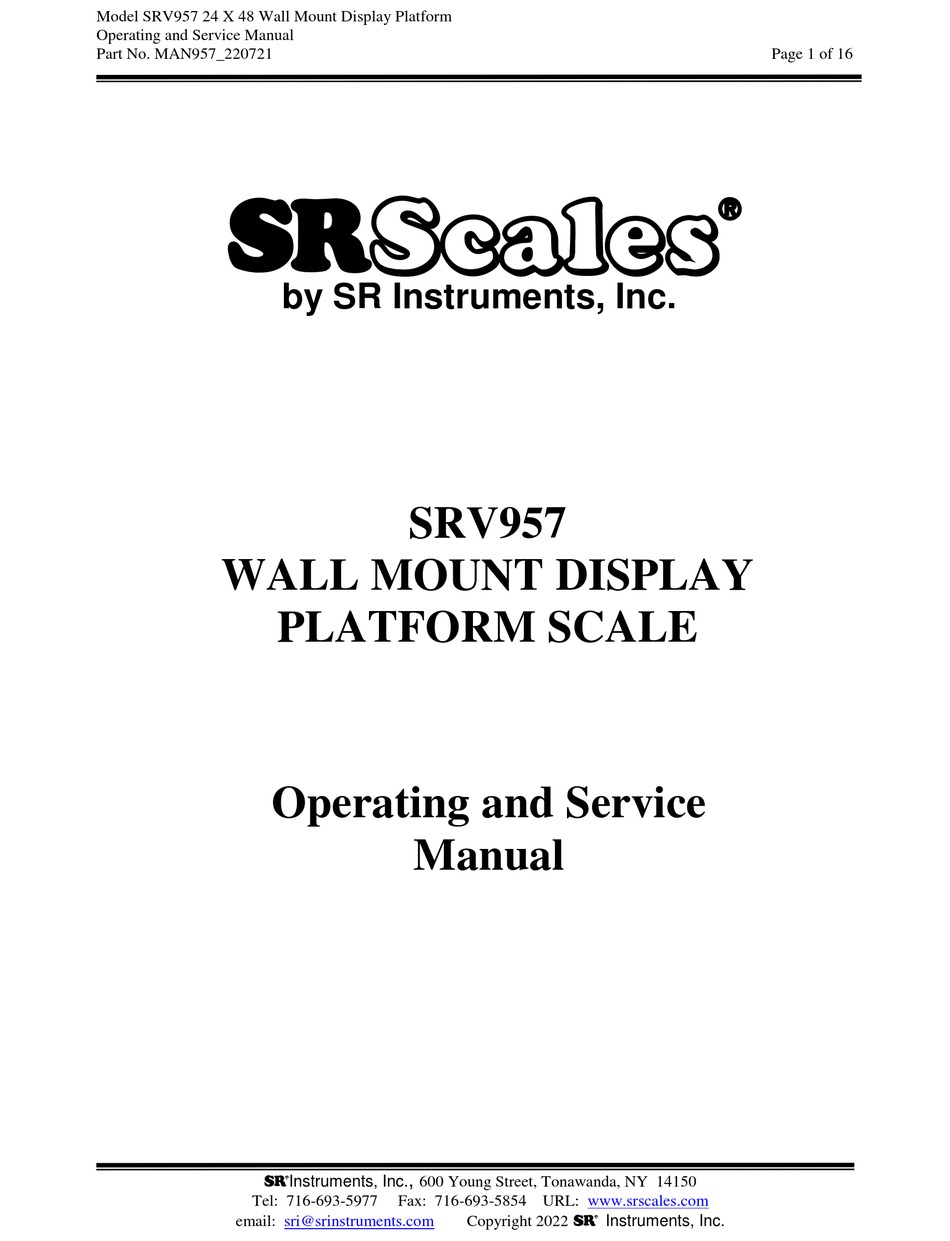

Model SRV957 24 X 48 Wall Mount Display Platform
Operating and Service Manual
Part No. MAN957_220721
S
WALL MOUNT DISPLAY
Operating and Service
SInstruments, Inc.
Tel: 716-693-5977
email:
by SR Instruments, Inc.
SRV957
PLATFORM SCALE
Manual
,
600 Young Street, Tonawanda, NY 14150
Fax: 716-693-5854 URL:
sri@srinstruments.com
www.srscales.com
Copyright 2022 S Instruments, Inc.
Page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR Scales SRV957 and is the answer not in the manual?

Questions and answers

Related Manuals for SR Instruments SR Scales SRV957

Summary of Contents for SR Instruments SR Scales SRV957

  • Page 1 Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 1 of 16 by SR Instruments, Inc. SRV957 WALL MOUNT DISPLAY PLATFORM SCALE Operating and Service Manual SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150...

  • Page 2: Table Of Contents

    Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 2 of 16 TABLE OF CONTENTS TABLE OF FIGURES ........................2 PACKING CHECKLIST – MODEL SRV957 ................3 ASSEMBLY............................3 SYSTEM DESCRIPTION AND INTENDED USE ...............4 STORAGE AND TRANSPORTATION ..................6 CLEANING AND DISINFECTING ....................5 SPECIFICATIONS...........................6...

  • Page 3: Packing Checklist - Model Srv957

    Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 3 of 16 PACKING CHECKLIST – Model SRV957 Wall Mount Display Platform Scale  DESCRIPTION QUANTITY SCALE PLATFORM 1 ea. SCALE DISPLAY 1 ea. SIGNAL CABLE 1 ea.

  • Page 4: System Description And Intended Use

    Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 4 of 16 REPLACEMENT PARTS AND ACCESSORIES Part # Description SE6000-14 Signal Cable FBM1012000 Replacement Foot FSAS751444BA Replacement Foot Spacer FR95X-AUX Wireless Auxiliary Display (optional) FRWR9HA2000 5V Medical Power Supply, USB Micro B SYSTEM DESCRIPTION AND INTENDED USE...

  • Page 5: Cleaning And Disinfecting

    Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 5 of 16 CLEANING and DISINFECTING CLEANING  Use water and mild detergent to clean scale surfaces.  Do not use abrasive material to disinfect / clean scale surfaces to prevent damage to the surface finish.

  • Page 6: Storage And Transportation

    Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 6 of 16 STORAGE and TRANSPORTATION STORAGE To maintain proper operation of this instrument, storage and transport conditions should not vary outside the following conditions: Relative Humidity 0% to 85%, Ambient Temperature 14°F to 122°F (-10°C to +50°C).

  • Page 7: Display Functions

    Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 7 of 16 DISPLAY FUNCTIONS Figure 1: Display Screen The “WEIGH” button is used to clear the Recall memory and start a new weighing WEIGH cycle.

  • Page 8: Basic System Operation

    Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 8 of 16 BASIC SYSTEM OPERATION TURNING SYSTEM ON Make sure the scale is free and clear of any obstructions and all six feet are touching a level surface.

  • Page 9: System Settings

    Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 9 of 16 SYSTEM SETTINGS ACCESSING THE SETTINGS MENU STEP 1: From the Home screen, press the System Settings button STEP 2: Enter password “12345” STEP 3: Press the green checkmark SETTINGS Figure 2: Settings Menu...

  • Page 10: Remote Display

    Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 10 of 16 WIRELESS AUXILIARY DISPLAY NOTE: IF ORDERED SIMULTANEOUSLY, THE WIRELESS AUXILIARY DISPLAY WILL SHIP PAIRED TO THE PRIMARY DISPLAY. NO FURTHER ACTION IS NEEDED.

  • Page 11: Calibration

    Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 11 of 16 CALIBRATION NOTE: Ensure that nothing is in contact with the scale system during this procedure. Remove hands from the system when noting the displayed calibration results. CALIBRATION CHECKING CALIBRATION TOLERANCE TABLE...

  • Page 12: Troubleshooting

    Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 12 of 16 TROUBLESHOOTING SYMPTOM REASON/CORRECTIVE ACTION Display reads LOW Ensure scale is on a level surface. Check to make sure all six feet are touching ground and ensure that nothing is touching bottom or sides of platform.

  • Page 13: Warranty

    SR Instruments, Inc.’s part, and it neither assumes nor authorizes any other person to assume for SR Instruments, Inc. any other liabilities in connection with the sale of said articles. In no event shall SR Instruments, Inc.
  • Page 14 Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 14 of 16 NOTES SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2022 S Instruments, Inc. email: sri@srinstruments.com...

  • Page 15: Display Mounting Template

    Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 15 of 16 DISPLAY MOUNTING TEMPLATE Determine installation location for scale and display, keeping in mind the display cable length is eight (8) feet. The display may lay flat on a desk or end table. If desired, provisions for wall mount have been incorporated, and can be accomplished in the manner described below.
  • Page 16 Model SRV957 24 X 48 Wall Mount Display Platform Operating and Service Manual Part No. MAN957_220721 Page 16 of 16 By SInstruments, Inc. Precision & Technology in Perfect Balance  SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2022 S Instruments, Inc.
