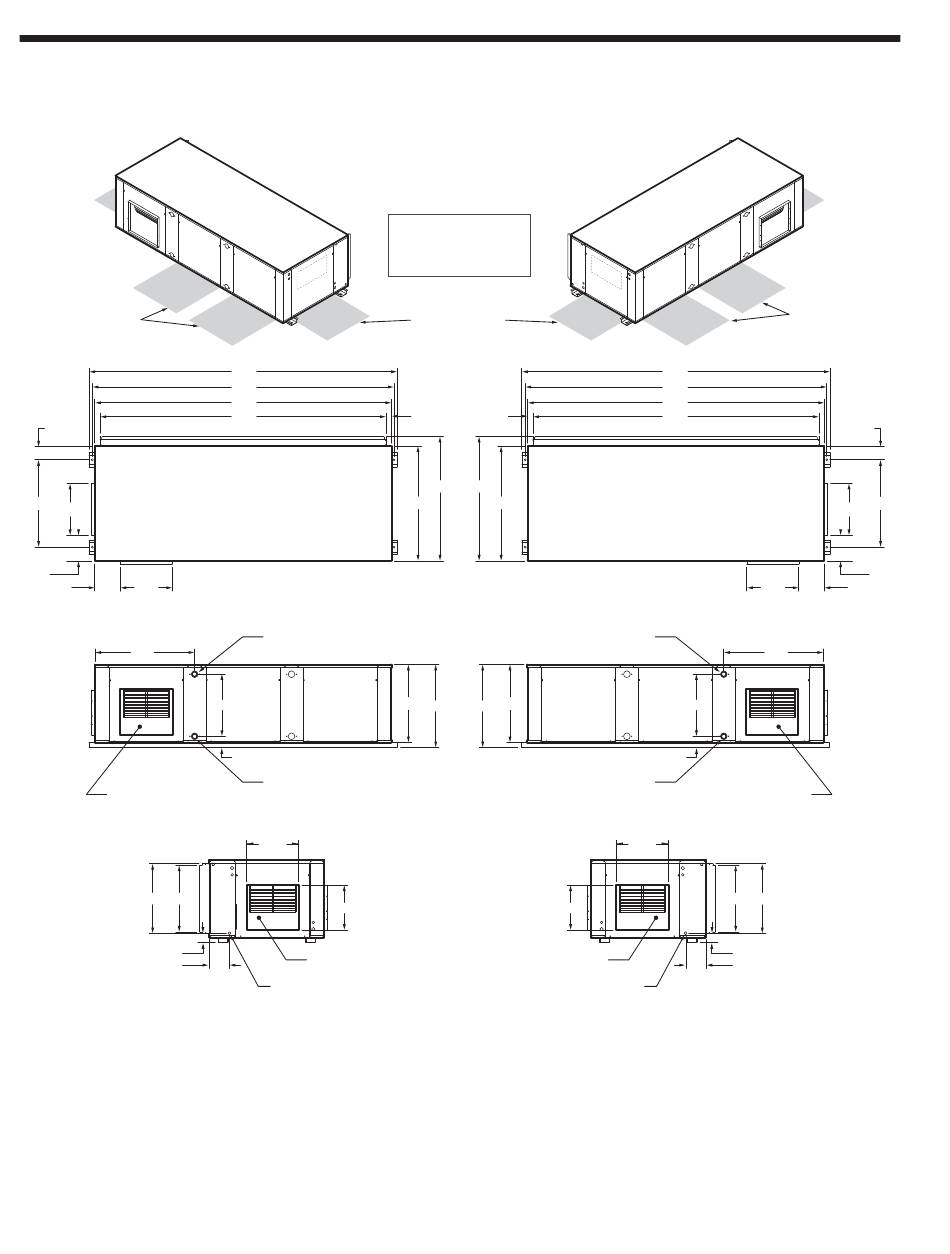

Horizontal Dimensions

7-10 Tons
BP
CMP
2' SECONDARY
SERVICE ACCESS
4.1
26.2
15.6
7.6
7.6 15.6
29.9 29.9
SIDE DISCHARGE
OPTION
21.0 20.1
2.9
6.1
RIGHT RETURN
CP
CMP
92.5
90.0
89.0
85.9
WATER OUT
18.6
3.4
WATER IN
15.62
13.5
END DISCHARGE
OPTION
DRAIN CONNECTION
LEFT RETURN
Legend
AP = Alternate Service Panel
BP = Blower Service Panel
CP = Control Access Panel
CMP = Compressor Service Panel
2' PRIMARY
SERVICE ACCESS
TOP VIEW
1.6 1.6
37.3 37.3
34.5 34.5
SIDE VIEW
23.5 24.5 23.5
24.5
END VIEW
13.5
END DISCHARGE
OPTION
DRAIN CONNECTION
8
CMP
CP
CMP
92.5
90.0
89.0
85.9
WATER OUT
18.6
3.4
WATER IN
SIDE DISCHARGE
OPTION
15.62
20.1 21.0
2.9
6.1
BP
2' SECONDARY
SERVICE ACCESS
4.1
26.2
15.6
7.6
15.6 7.6
29.9 29.9
REV 4/28/08
