Power Connection - Audio System C Series Manual

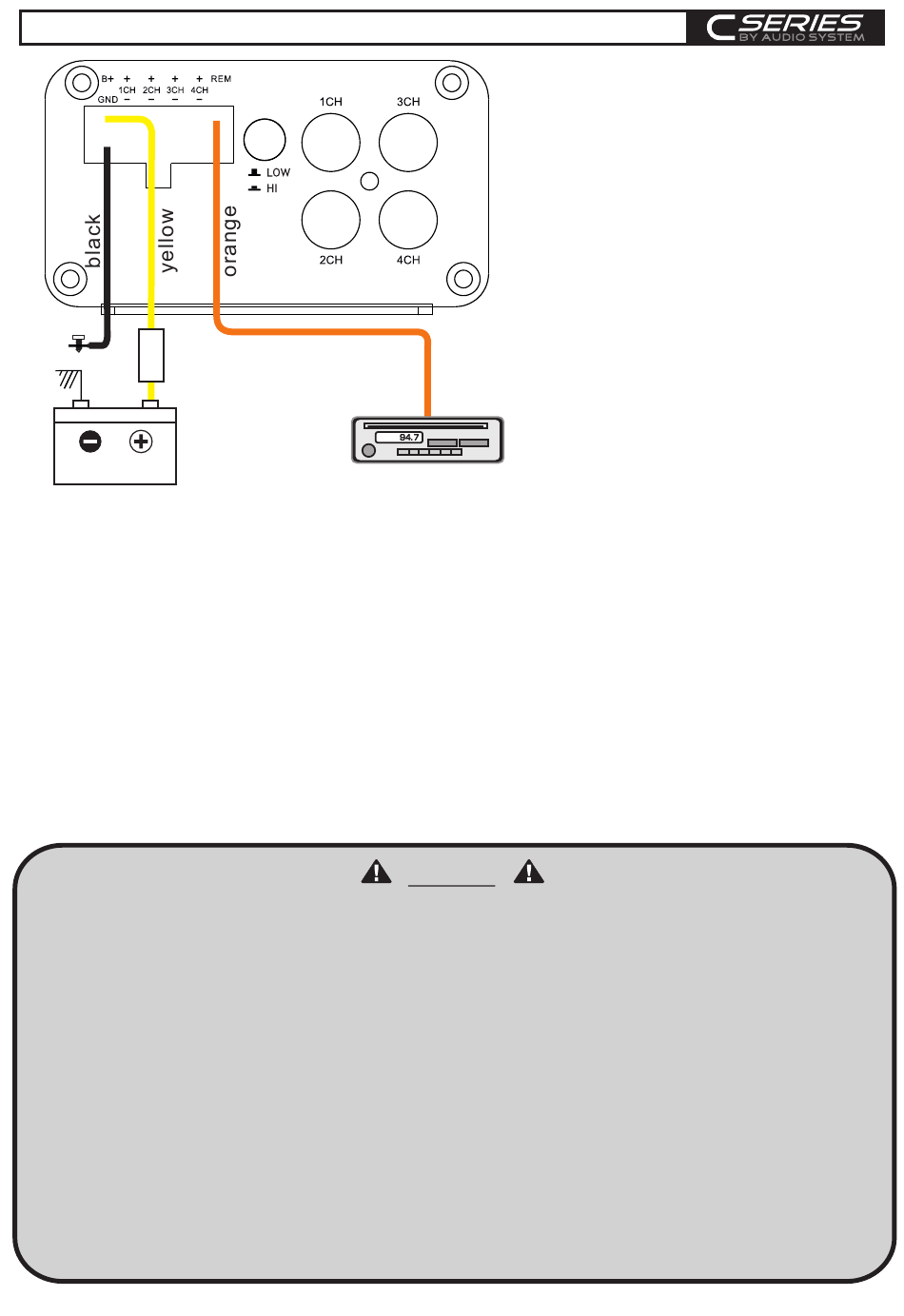

power connection

fuse
GROUND
max.30 cm
BATTERY
3. +12 V Power connection: Connect the +12 V contact of the amplifier with the supply cable
via a fuse directly to the vehicle battery. Keep in mind, that the length of the cable from
fuseholder to vehicle battery has to be a maximum of 30 cm. Requirement for a perfect
function of the amplifier is a qualitative high end fuse holder as well as a suitable cable cross
section (AWG sice 6 - 10). This fuse protects the amplifier and the vehicle against the
possibility of a short circuit in the power cable.
4. Remote connection (optional): You can optional connect the REM-terminal of the amplifier
to the remote-output (automatic 12 V antenna-output) of the head unit. Therefore use a 0,5 -
1,5 mm power cable.
5. High Level Input: If the radio (normally original radio) has no RCA output and remote
output (automatic 12 V antenna output) it is possible to connect the speaker output from
headunit direct in „High Level Input". If the amplifier get a signal from head unit output, the
amplifier will turn on.
Please take the following precautions when installing your amplifier:
a) Take extra care when making the connections. Make sure that no electrical cable, gas
tank, hydraulic brakes or other components get damaged.
b) Allow enough cooling and air circulation and avoid installing the unit in small closed
boxes or close to parts that heat up easily.
c) Keep the amplifier away from liquid, moisture, heat and foreign materials.
d) This amplifier can only be used in vehicles with 12V DC power supply.
e) Never install the power supply cable with other original vehicle wires (gas cables), fan
motors, control modules etc.
f) Install the signal cable (cinch cable) as well as speaker cable far away from the power
cables to avoid interference with music signals.
g) To avoid dangers of cables binding, squeezing or breaking, use the cables supplied
with your amplifier.
Remote Turn-on
(optional)
HEAD UNIT
Caution
-2-
1. Battery disconnection
First disconnect the power supply of
the vehicle. This works out the best
by removing the ground cable of the
battery.
2. Ground connection
Connect the GND (ground)
connection of the amplifier with the
car chassis. Keep this cable as
short as possible (not longer than
50 cm) and use a suitable cross
section (AWG sice 6 - 10).
Make sure, that the connection with
the vehicle chassis is free of paint,
dirt and dust.
