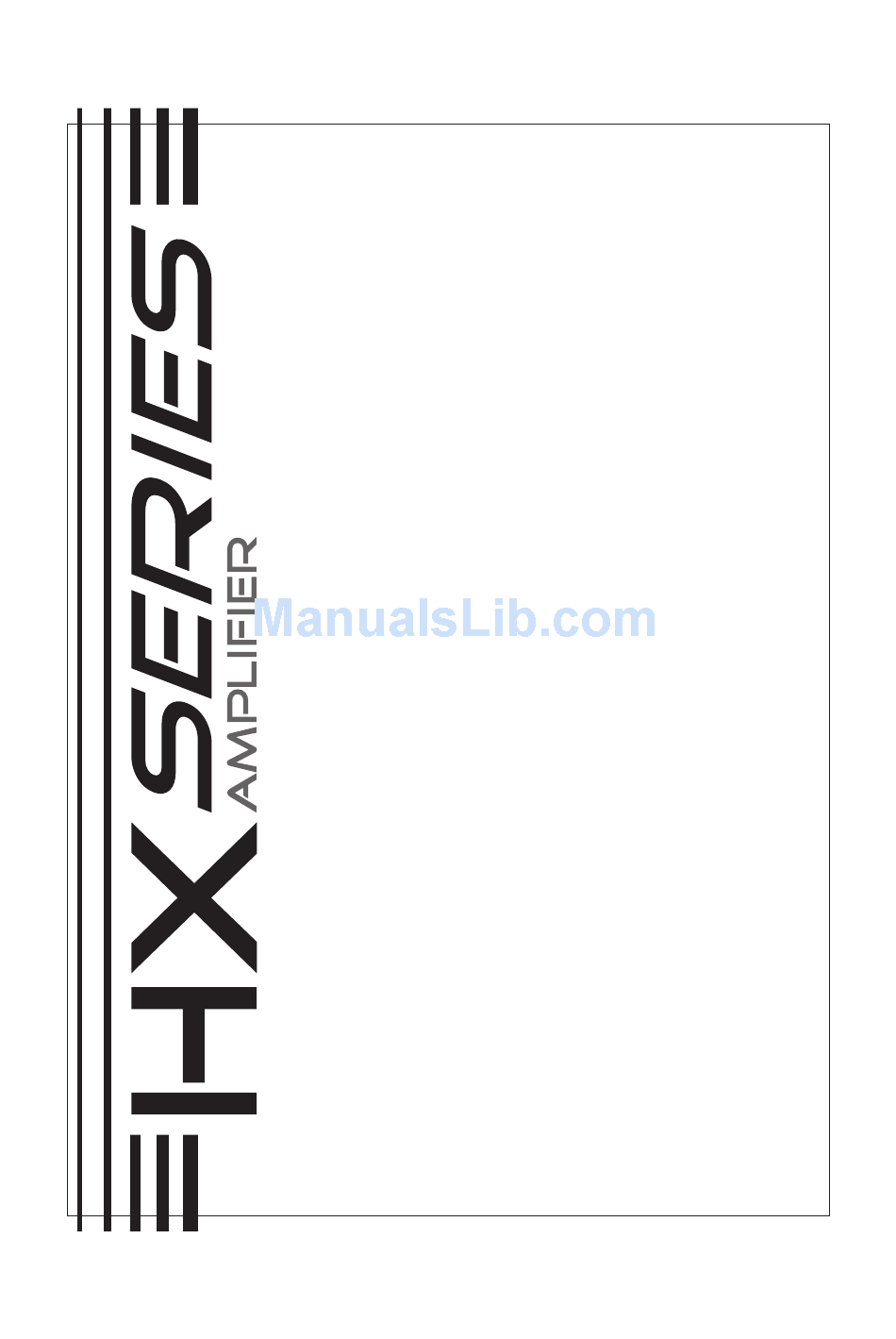

- Page 1 High-END amplifier HX 360.2 HX 80. . 4 Owner's manual powered by Audio System Germany Falltorstr. 6 - 76707 Hambrücken...
- Page 2 We advice to accomplish the installation by an authorized service center, because a professional fitting and connection is the requirement for further warranty adjustements. eatures HX 360.2 2-Channel High Power Class-AB amplifier with SMD technology Full MOS-FET Power amplifier Stable into 1 ohm stereo per channel and 2 ohm bridged mode...
-
Page 3: Power Connection
ONNECTION HX 360.2 / HX 80. . 4 GROUND Wired Remote Control RTC to REMOTE Turn-on (optional) from HEAD UNIT Fuse Power remote selectable button HEAD UNIT Fuse status LED BATTERY 1. Battery disconnection First disconnect the power supply of the vehicle. This works out the best by removing the ground cable of the battery. -
Page 4: Rca Connection
2. amplifier via a cinch cable (for HX 360.2). HX 360.2 | If the DIRECT INPUT button is pushed all features are disabled. Otherwise you can use all features (Crossover, Phase Shift, Gain, RTC HX, HX Card, ...). The PHASE/RTC HX button allows to select Phase Shift 0-360 °... - Page 5 HX 360.2 1-Channel Bridged CH1/2-MONO SUBWOOFER Speaker Impeadance 2 ~ 8 ohm 2-Channel Stereo Speaker Impeadance 1 ~ 8 ohm CH1/2-MONO SUBWOOFER Coil Tri-Mode Speaker Impeadance 4 ~ 8 ohm...
- Page 6 peaker onnection HX 80. . 4 2-Channel Bridged CH1/2-MONO SUBWOOFER Speaker- impedance 2 ~ 8 ohm CH3/4-MONO SUBWOOFER 4-Channel Stereo Speaker- impedance 1 ~ 8 ohm 2-Channel Stereo + 1-Channel Mono Bridged Speaker- impedance 1 ~ 8 ohm CH3/4-MONO SUBWOOFER Speaker- impedance 2 ~ 8 ohm...
- Page 7 rouble hooting This power amplifier is featured with a efficient protection system to prevent any damages like over-heating, overvoltage, short-circuit and Dc at the loudspeaker output. Occurring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of the head unit, afterwards turn it off. AMPLIFIER IS NOT - ground connection professional connected? POWERED UP, NO LED...
- Page 8 HX 360.2 Power Supply Voltage 10 -16 V Rated Power Output at 14,4 V 2x 360 W -RMS power @ 4 ohm stereo -RMS power @ 2 ohm stereo 2x 700 W -RMS power @ 1 ohm stereo 2x 1250 W...
