3. POWER ON, CONTROLS AND INDICATORS

Внимание!
Danger!
Do not turn the amplifier on for at least 2 hours after unpacking it in the room where it
will be used. Pay particular attention when you move it from a very cold into a warm
place - condensation is likely and this could result in damage to the high voltage circuits.
In such a case, wait at least 4 hours. A similar effect can occur after a rapid warming of
the operating room (for instance after switching on a powerful heater in a cold shack).
To avoid damage (not covered under warranty) carefully check that the voltage for
which the amplifier is set corresponds to your mains nominal voltage (see Section
Line Voltage Selection
After following all instructions in Section
"LINE" on the rear panel (see
located on the front panel must light red and "ACOM 1000" will appear on the OLED (see
):
1000 Display and Control
You'll note that the upper line of the OLED always reads the peak forward power, even in STBY mode. The
1200W scale resolution is 10W per bar, dots division weight is 60W, and figures are multiple to 300W. Note
also that levels below 20W may be not detected.
Page 16 of 36 | S e c t i o n POWER ON, CONTROLS AND INDICATORS
D A N G E R
W A R N I N G
and
Table 2-1 ACOM 1000 Individual Data
2 INSTALLATION
Figure 2-1 Connections

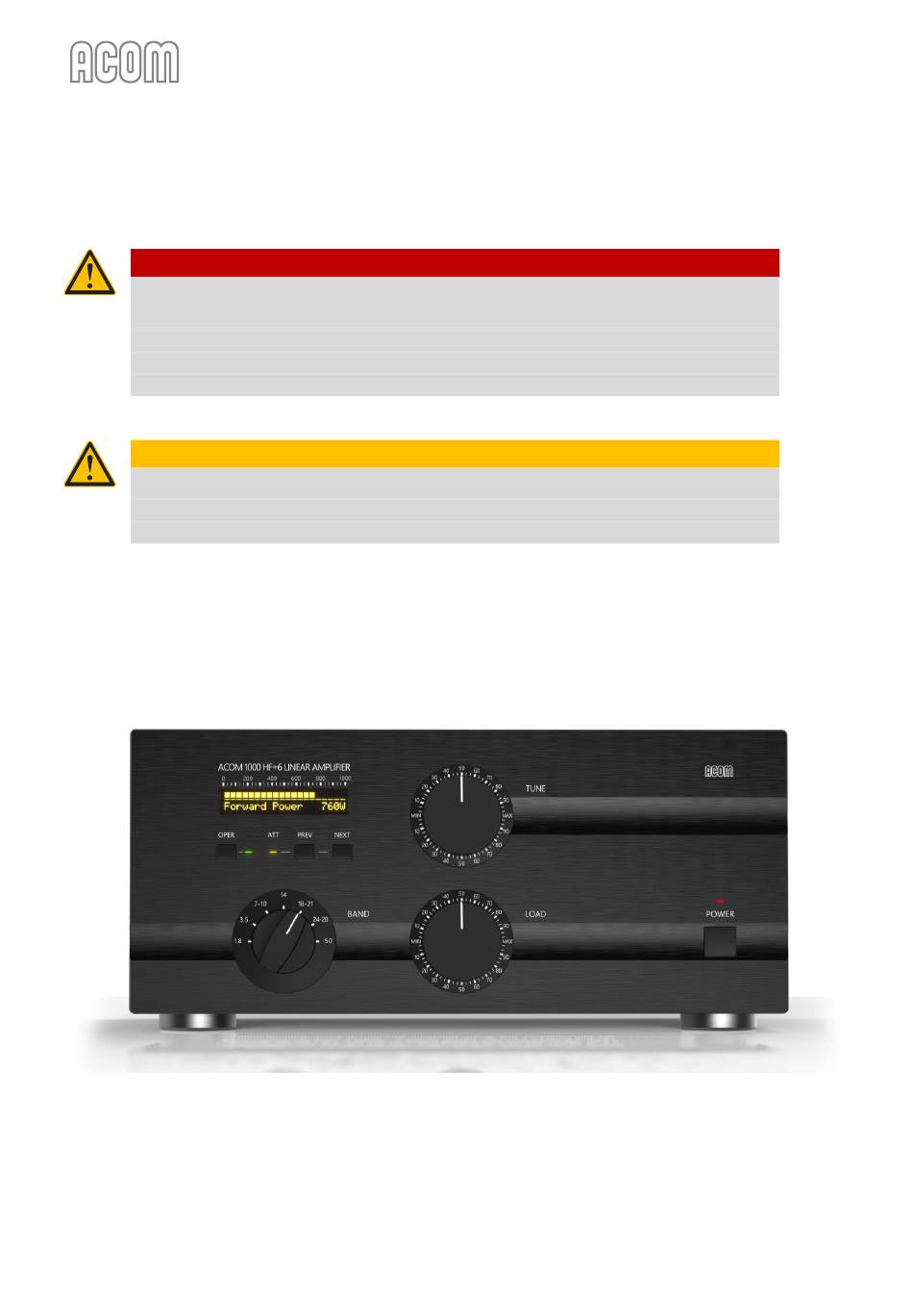

Figure 3-1 ACOM 1000 Display and Control
