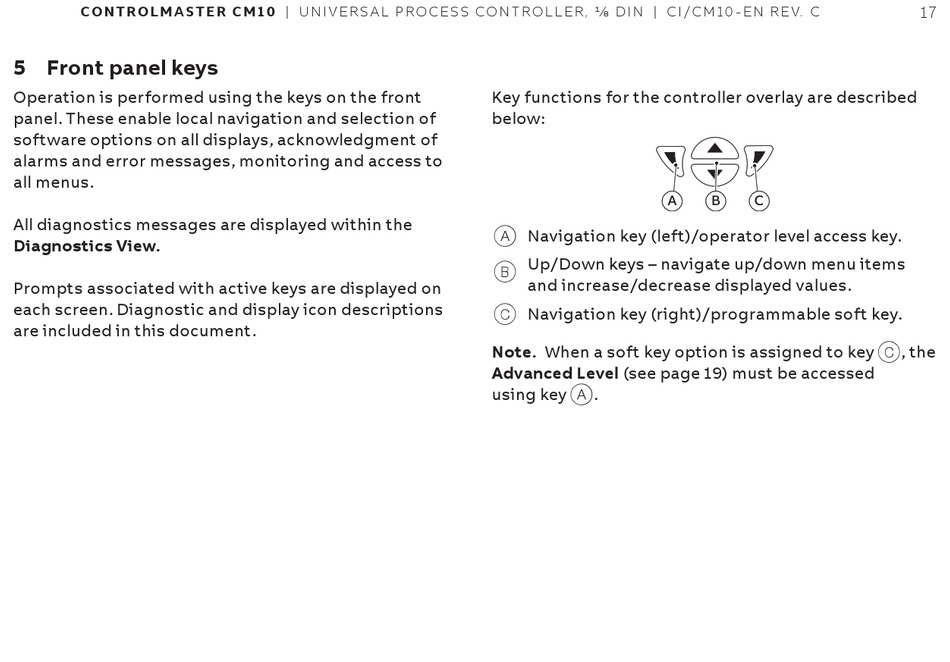

5 Front panel keys

Operation is performed using the keys on the front
panel. These enable local navigation and selection of
software options on all displays, acknowledgment of
alarms and error messages, monitoring and access to
all menus.
All diagnostics messages are displayed within the
Diagnostics View.
Prompts associated with active keys are displayed on
each screen. Diagnostic and display icon descriptions
are included in this document.
Key functions for the controller overlay are described
below:
A
A
Navigation key (left)/operator level access key.
Up/Down keys – navigate up/down menu items
B
and increase/decrease displayed values.
C
Navigation key (right)/programmable soft key.
Note. When a soft key option is assigned to key
Advanced Level (see page 19) must be accessed
using key A .
B C
C
17
, the
