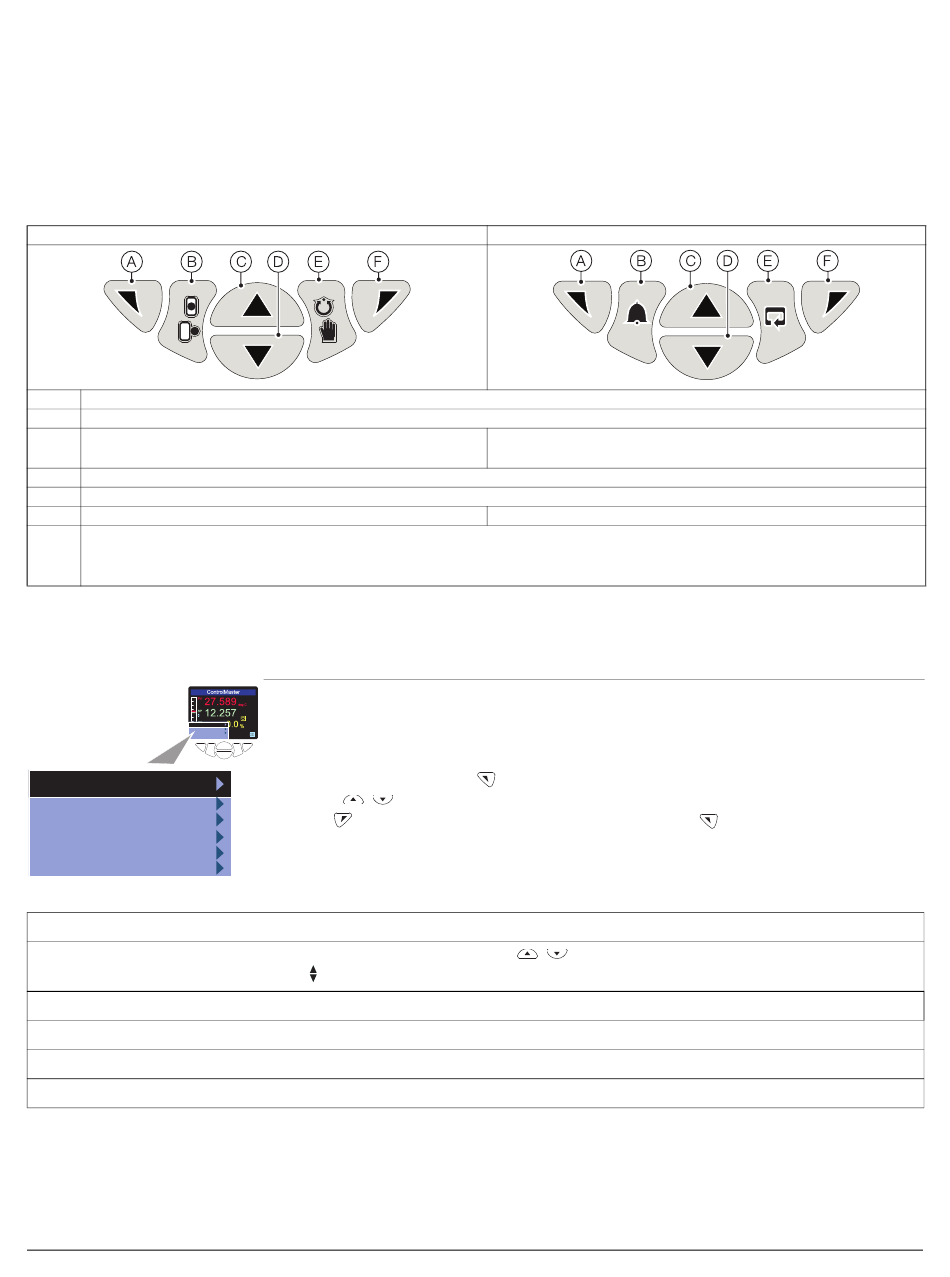

Front panel keys
Operation is performed using the keys on the front panel. These enable local navigation and selection of software options on all
displays, acknowledgement and data logging and monitoring and access to all menus. All diagnostic messages are displayed in the
Diagnostic View.
Prompts associated with active keys are displayed on each screen. Diagnostic and display icon descriptions are included in this
document.
Key functions for controller and indicator overlays are described in the following table:
Controller
Key
Function
A
Navigation key – left and Operator Level access key
B
Local / Remote setpoint mode selection key
C
Up key – navigate up menus and increase displayed values
D
Down key – navigate down menus and decrease displayed values
E
Auto / Manual control mode selection key
Navigation key – right and programmable Soft Key
F
At menu level, selects the highlighted menu item, operation button or edits a selection
When a Soft Key option is assigned to key 5, the Advanced Level must be accessed using the Operator Level access key 1.
5
Operator level menus
Autotune
Adjust
Setpoint Select
Alarm Acknowledge
View Select
Enter Config. Level
Autotune
Adjust
Setpoint Select
Alarm Acknowledge
View Select
Enter Config. Level
10
Operator level menus are used to adjust setpoint(s) and output(s), select setpoints, select the view and to enter
Basic and Advanced modes (via the Access level).
To access Operator Level menus:
1. From the Operator Page, press
2. Use the
/
keys to scroll through the menus and menu options.
3. Press
to expand menu levels and to select menu options or press
Menu functions are described in the following table:
Used to start or stop an autotune routine. This menu is enabled only if Autotune mode is On.
Enables a value to be adjusted using the
The
icon next to a value indicates the current adjustable selection.
Selects the local setpoint to be used (displayed only if more than 1 local setpoint is configured).
Acknowledges any active but unacknowledged alarms.
Selects the Operator view to be displayed.
Displays the Access Level selection views – see Section 6, page 11 for security options.
Indicator
Alarm acknowledge key – acknowledges any active and unacknowledged
alarms
Scroll key – scrolls through each available operator view
to view the available menus.
/
keys.
to return to the previous menu.
