8 Diagnostics messages

The controller is programmed to display diagnostics
messages that provide information on servicing
requirements and any other conditions that develop
during operation.
Diagnostic description/alarm tag
Alarm
icon
High Temp
PV1 Failed
High Temp

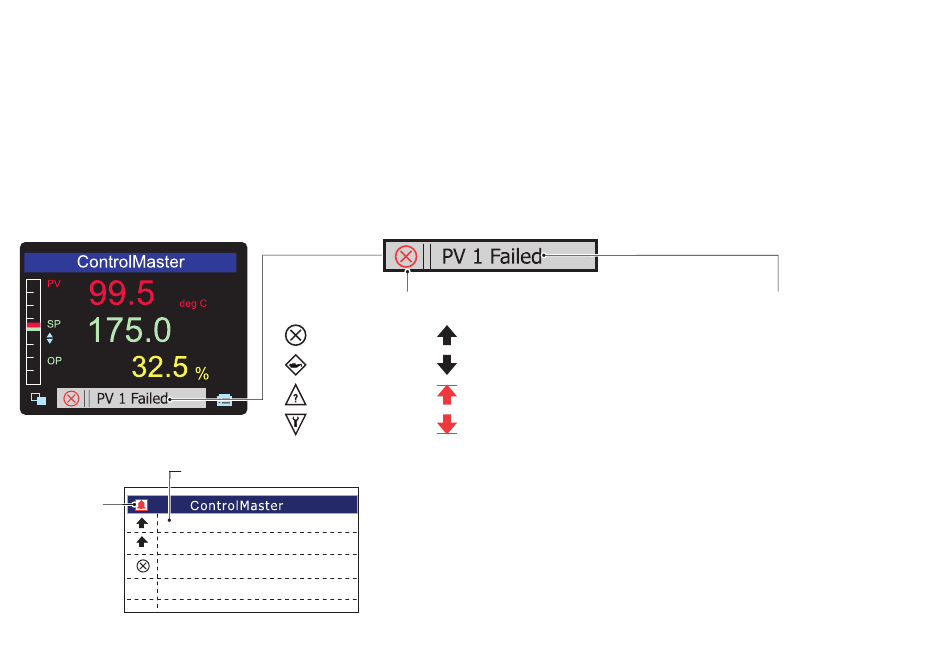

When a diagnostics condition is detected, the
associated NAMUR Icon, together with the highest
priority diagnostics message are displayed in the
status bar when in operator view. A list of all currently
active diagnostic alarm states are displayed in the
diagnostic view.
NAMUR (NE107) status icon
Failure High process alarm
Maintenance Low process alarm
Out of spec High latch alarm
Check function High latch alarm
Description of diagnostic or alarm tag.
The highest priority diagnostic or alarm
is displayed. Other active diagnostic/
alarm states can be viewed on the
Diagnostic View – see below.
