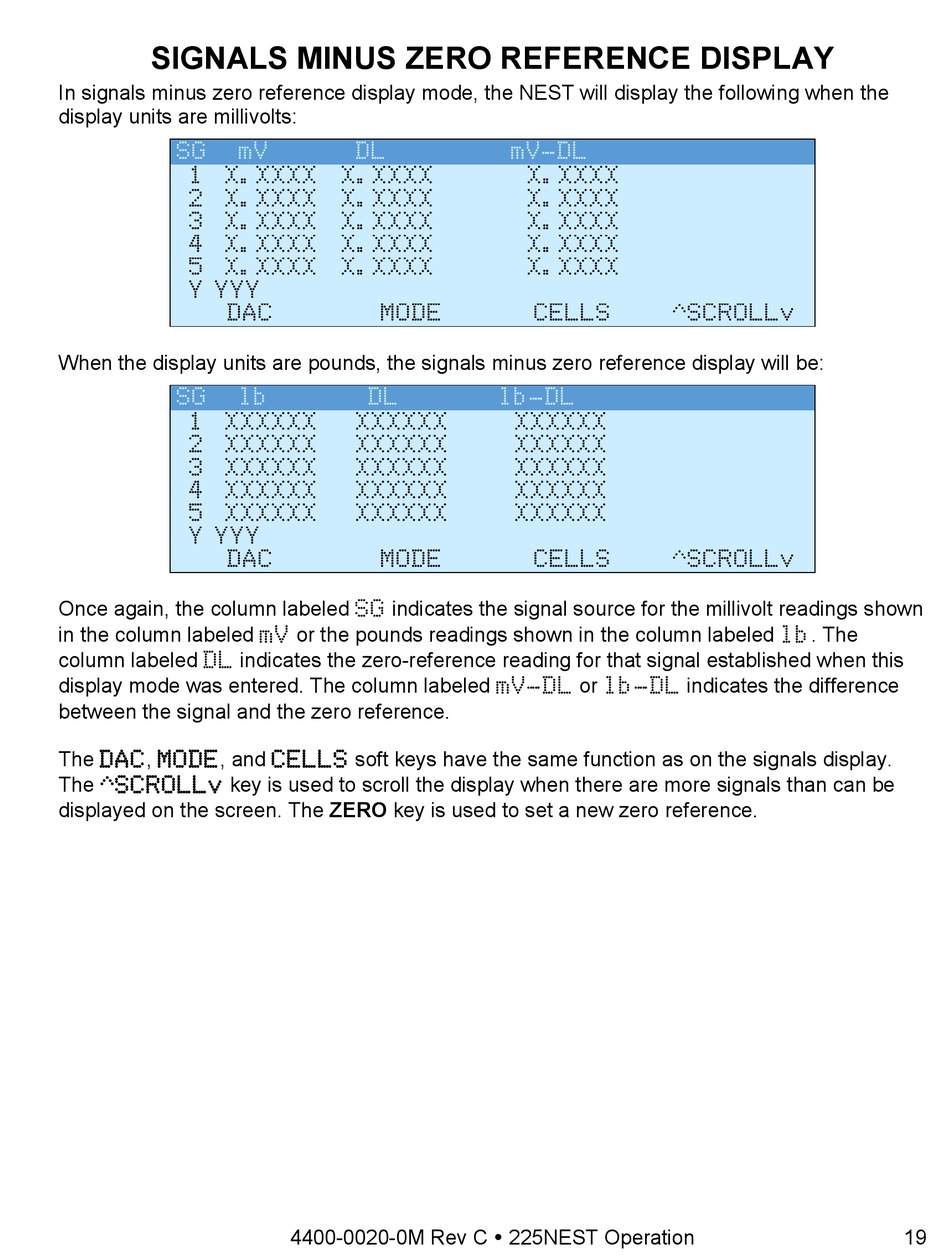

SIGNALS MINUS ZERO REFERENCE DISPLAY

In signals minus zero reference display mode, the NEST will display the following when the
display units are millivolts:
SG
1 X.XXXX
2 X.XXXX
3 X.XXXX
4 X.XXXX
5 X.XXXX
Y YYY
DAC
When the display units are pounds, the signals minus zero reference display will be:
SG
1 XXXXXX
2 XXXXXX
3 XXXXXX
4 XXXXXX
5 XXXXXX
Y YYY
DAC
Once again, the column labeled SG indicates the signal source for the millivolt readings shown
in the column labeled mV or the pounds readings shown in the column labeled lb. The
column labeled DL indicates the zero-reference reading for that signal established when this
display mode was entered. The column labeled mV-DL or lb-DL indicates the difference
between the signal and the zero reference.
The DAC, MODE, and CELLS soft keys have the same function as on the signals display.
The ^SCROLLv key is used to scroll the display when there are more signals than can be
displayed on the screen. The ZERO key is used to set a new zero reference.
mV DL
X.XXXX
X.XXXX
X.XXXX
X.XXXX
X.XXXX
MODE
lb DL
XXXXXX
XXXXXX
XXXXXX
XXXXXX
XXXXXX
MODE
4400-0020-0M Rev C  225NEST Operation
mV-DL
X.XXXX
X.XXXX
X.XXXX
X.XXXX
X.XXXX
CELLS ^SCROLLv
lb-DL
XXXXXX
XXXXXX
XXXXXX
XXXXXX
XXXXXX
CELLS ^SCROLLv
