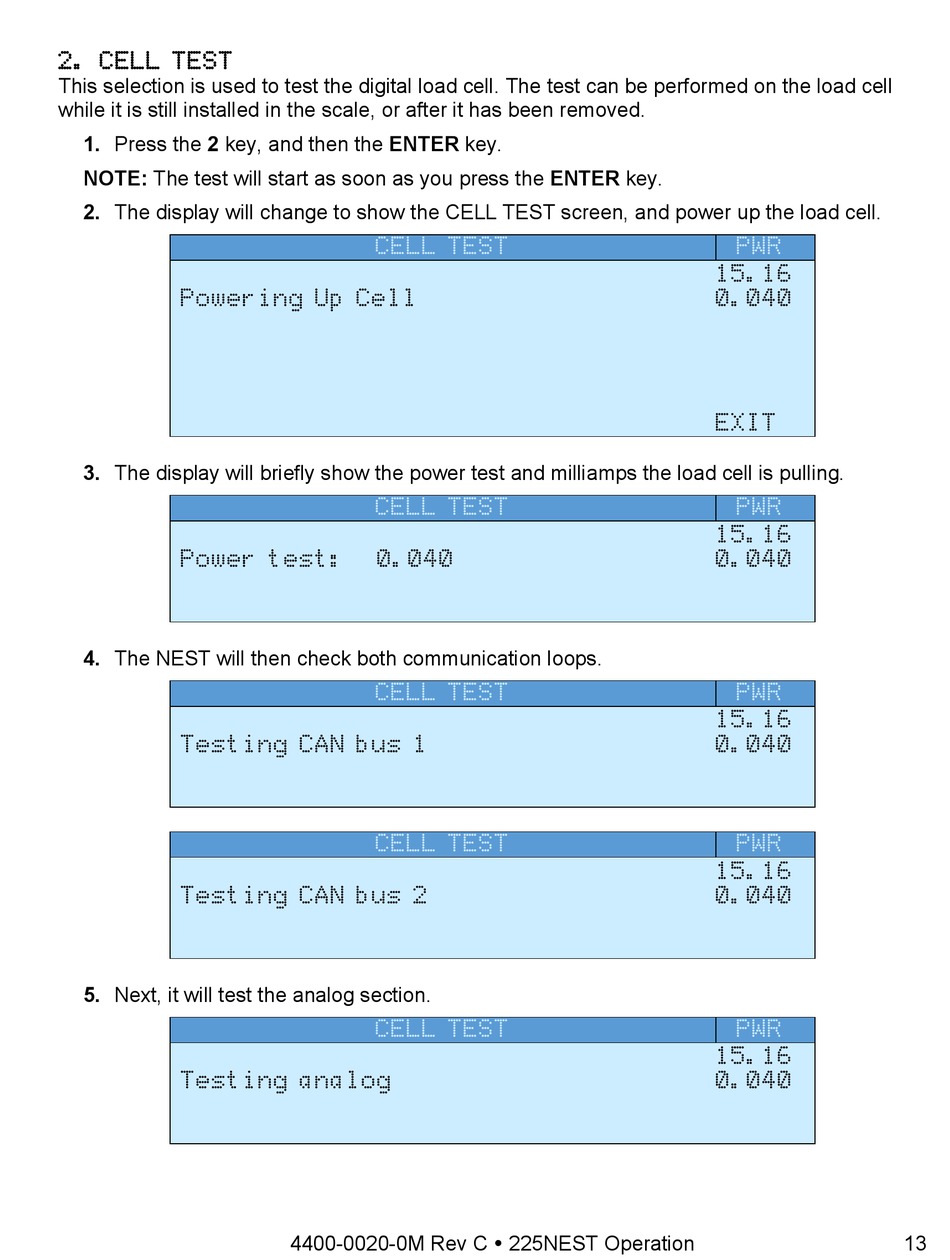

2. CELL TEST

This selection is used to test the digital load cell. The test can be performed on the load cell
while it is still installed in the scale, or after it has been removed.
1. Press the 2 key, and then the ENTER key.
NOTE: The test will start as soon as you press the ENTER key.
2. The display will change to show the CELL TEST screen, and power up the load cell.
Powering Up Cell
3. The display will briefly show the power test and milliamps the load cell is pulling.
Power test:
4. The NEST will then check both communication loops.
Testing CAN bus 1
Testing CAN bus 2
5. Next, it will test the analog section.
Testing analog
CELL TEST
CELL TEST
0.040
CELL TEST
CELL TEST
CELL TEST
4400-0020-0M Rev C  225NEST Operation
PWR
15.16
0.040
EXIT
PWR
15.16
0.040
PWR
15.16
0.040
PWR
15.16
0.040
PWR
15.16
0.040
13
