Summary of Contents for Heatmiser TM4-TS

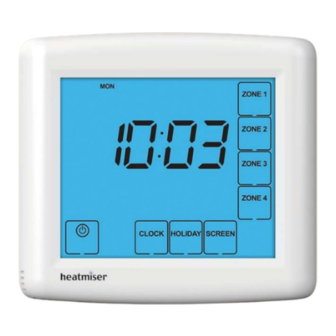

- Page 1 Model: TM4-TS Model: TM4...
-
Page 2: Table Of Contents
Model: TM4-TS Table of Contents Product Image Table of Contents Installation Procedure LCD Display Normal Run Mode Setting the Clock Holiday Selecting 5/2 Day or 7 Day Programming Adjusting the Switching Times Copy Function Mode Select Boost Facility Wiring Diagram... -
Page 3: Installation Procedure
Installation Procedure Mount the time clock at eye level. Read the instructions fully so you get the best from our product. Don’t Do not install near to a direct heat source as this will affect functionality. Do not push hard on the LCD screen as this may cause irreparable damage. This time clock is designed to be flush mounted and requires a back box of 35mm (minimum depth) to be sunk into the wall prior to installation. -
Page 4: Lcd Display
LCD Display Day Indicator - Displays the day. Copy - Enables copying of switching times from one zone to another. On Until/Off Until - Displays the current operational status of the timed output. Timer Status - Displays the current status of the timed output. Up/Down Keys - Increase or decrease values shown on left digit group. -
Page 5: Normal Run Mode
Normal Run Mode Setting the Clock In normal run mode, the time clock will display the current time. It can also be set to To set the clock, follow these steps: show the status for a particular zone. To display the status of a zone, press •... -
Page 6: Holiday
Holiday Selecting 5/2 Day or 7 Day Programming All four timed outputs will be disabled during a holiday period. Each zone can be programmed to work in 5/2 (Weekday/Weekend) or 7 Day mode. At the end of your holiday, the time clock will revert back to the programmed setting. •... -
Page 7: Adjusting The Switching Times
Adjusting the Switching Times Copy Function The Time clock has a copy function, enabling you to copy switching times from one Each zone has 4 On/Off times. To program the switching time, follow these steps: zone to another. To use the Copy function, follow these steps: •... -
Page 8: Mode Select
Mode Select Wiring Diagram - TM4-TS Each zone can operate in 3 modes: Auto: The zone will work to the programmed switching times. Off: The zone will switch off completely. Constant: The zone will stay on indefinitely. To set the mode for the zone, follow these steps: TM4-TS •... - Page 9 Heating Professionals: Request a copy of our product installation guide containing detailed technical specifications for our complete product range: www.heatmiser.com/guide Want More Information? Call our support team on: +44 (0)1254 669090 Or view technical specifications directly on our website: www.heatmiser.com Twitter: heatmiseruk Facebook: facebook.com/thermostats...
