DEMO MANUAL DC1565A

perForMAnce sUMMArY

Input Frequency Range
SFDR
SNR

qUick stArt proceDUre

Demonstration circuit 1565A is easy to set up to evaluate
the performance of the LTC2152 A/D converter family. Refer
to Figure 1 for proper measurement equipment setup and
follow the procedure below:
Setup
If a DC1371 Data Acquisition and Collection System was
supplied with the DC1565A demonstration circuit, fol‑
low the DC1371 Quick Start Guide to install the required
software and for connecting the DC1371 to the DC1565A
and to a PC.
PARALLEL/SERIAL
CHANNEL 1
2
(T = 25°C)
A
See Table 1
See Applicable Data Sheet
See Applicable Data Sheet
3.6V TO 6V
SINGLE-ENDED ENCODE CLOCK
(USE A LOW JITTER SIGNAL GENERATOR
WITH PROPER FILTERING)

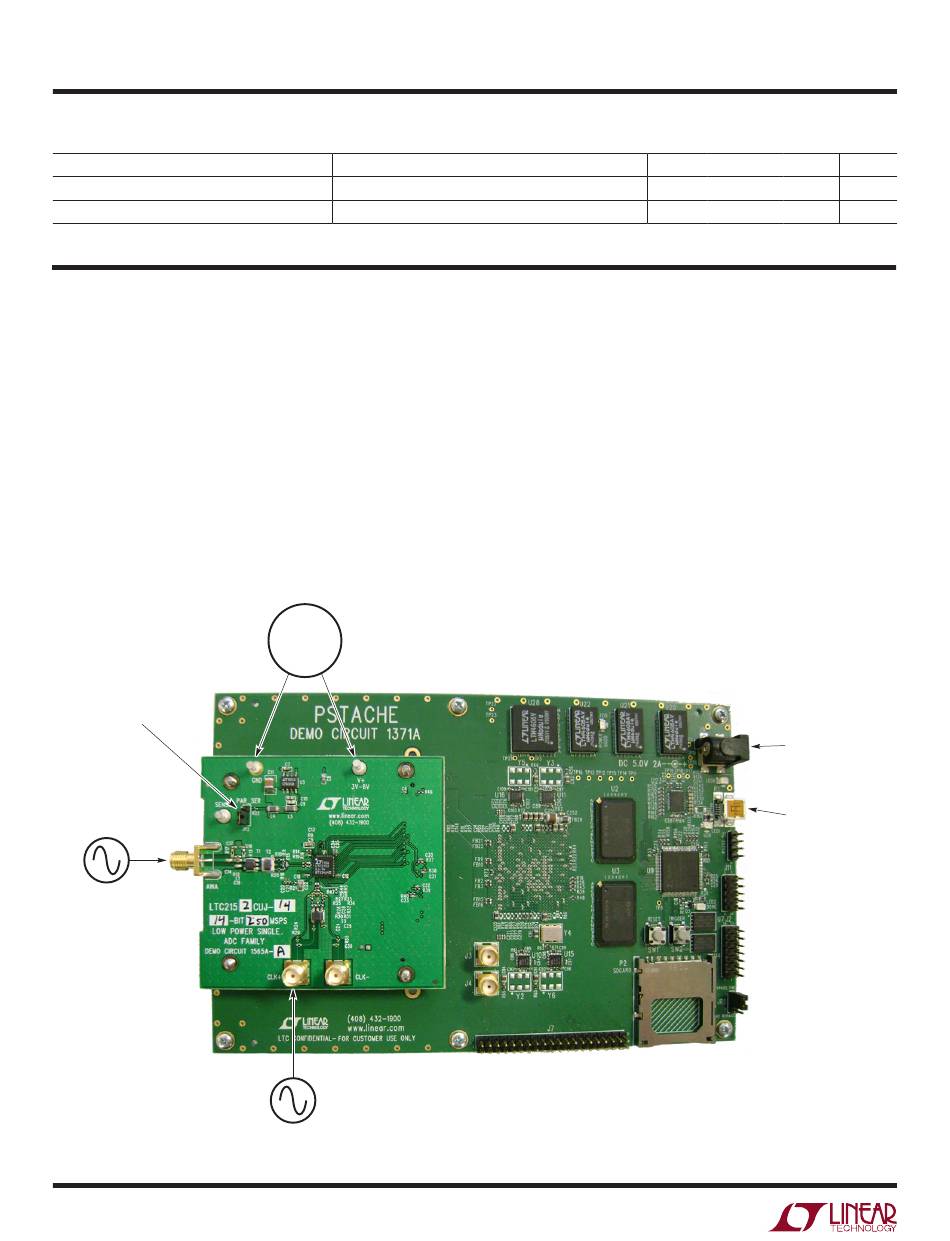

Figure 1. DC1565 Setup
DC1565A Demonstration Circuit Board Jumpers
The DC1565A demonstration circuit board should have
the following jumper settings as default positions: (as
per Figure 1)
JP2 PAR/SER: Selects parallel or serial programming
mode. (default ‑ serial)
TO PROVIDED
POWER SUPPLY
TO PROVIDED
USB CABLE
dc1565a F01
