- Page 1 User Manual CMP-200 Version: 1.0 Date: November 2019...
-
Page 2: Table Of Contents
Contents 1 Product Introduction....................1 2 Appearance and Dimensions................... 1 3 Parameters........................2 4 Functions........................3 5 Movement Transmission Structure................4 6 Control Board Wiring Installation................5 7 Commisioning Instructions..................8 8 Instructions......................10 9 Troubleshooting..................... 11... -
Page 3: Product Introduction

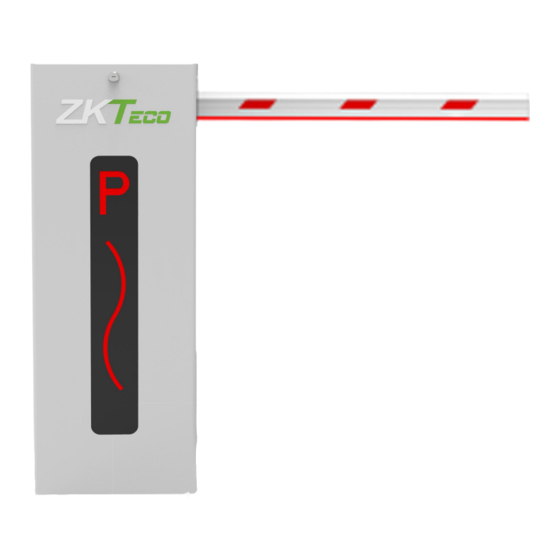

1 Product Introduction CMP-200 series automatic barrier gate is a new barrier gate product combined with the practical application of automatic barrier gate products in the industry. Its appearance and structure design follows the needs of the market and industry, and the traffic light indication has the humanized experience. -
Page 4: Parameters
3 Parameters Power adaptability Input voltage AC 220V/110V±20%, 50/60Hz Rated power 100W Max power 120W Remote control Open field≤30m distance Remote control 433MHZ, Learning code frequency Chassis material Cold gadolinium steel plate Boom material Aluminum Working -25℃~+75℃ temperature... -
Page 5: Functions
Working humidity <90%RH (no condensation) Protection grade IP54 Shell size (W*D*H) 1010*350*280 (mm) Package size 1100*375*430 (mm) (W*D*H) Chassis net weight 45KG Chassis gross 47KG weight Telescopic straight boom, boom length≤4.5m, red and white color, the rise/fall speed is 3s Boom type Telescopic straight boom, boom length: 4.5m~6m, red and white color, the rise/fall speed is 6s... -
Page 6: Movement Transmission Structure
exceeds the rise and fall time, the boom will stop operation automatically. The barrier gate can be controlled by wireless remote control and wired control button to meet the needs of different field applications. It supports traffic lights with AC voltage, and DC voltage of 5V or 12V. 5 Movement Transmission Structure... -
Page 7: Control Board Wiring Installation
6 Control Board Wiring Installation Remove the wiring cover of the barrier gate main controller. As shown below: Take up The installation size of the control board in the barrier gate chassis is as follows (unit: mm). - Page 8 Refer to the wiring diagram of the barrier gate controller and connect the lines one by one firmly. (Note: Power must be disconnected before installation or maintenance.) After checking and confirming reliable wiring, install the wiring cover back. Install the desktop remote control. Place the desktop remote control on the desk in the guard room or attach it to the wall and plug in power.
-
Page 10: Commisioning Instructions
7 Commisioning Instructions Check all the connections and make sure the connections are correct before connecting the power. Press the “Up” button of the desktop remote control or “ ” on the remote control handle, the boom will rises and stops automatically after the rising limit. If the running direction is opposite, adjust the rise and fall wiring of the motor. - Page 11 In the process of boom rising, short connect the loop detector and public interface, the boom will fall automatically after the rising limit and stop automatically after the falling limit. In other states (except the falling limit), short connect the loop detector and public interface, the boom will automatically fall to the limit.
-
Page 12: Instructions
Barrier gate spring and boom length type matching: 8 Instructions 1. Up button In the stop state, press the "Up" button of the desktop remote control or " " on the remote control handle to rise the boom. In the process of boom falling, press the "Up"... -
Page 13: Troubleshooting
desktop remote control or " " on the remote control handle to stop the boom. 4. Study/delete remote control code Study code: In the stop state, press the “Study” button on the main controller until the REMOTE indicator is on then release it, press any button on the remote control, the REMOTE indicator is off, and the code studying is completed. - Page 14 3. Same frequency frequency. interference exists. 1. Connect the The POWER indicator is on, 1. The motor wire is motor wire. boom UP and DOWN indicator open or connected 2. Manual release is normal, the motor is not incorrectly. motor. running.
- Page 15 ZK Building, Wuhe Road, Gangtou, Bantian, Buji Town, Longgang District, Shenzhen China 518129 Tel: +86 755-89602345 Fax: +86 755-89602394 www.zkteco.com Copyright©2019 ZKTECO CO., LTD. All rights reserved.
