SBTL300 Series
User Manual

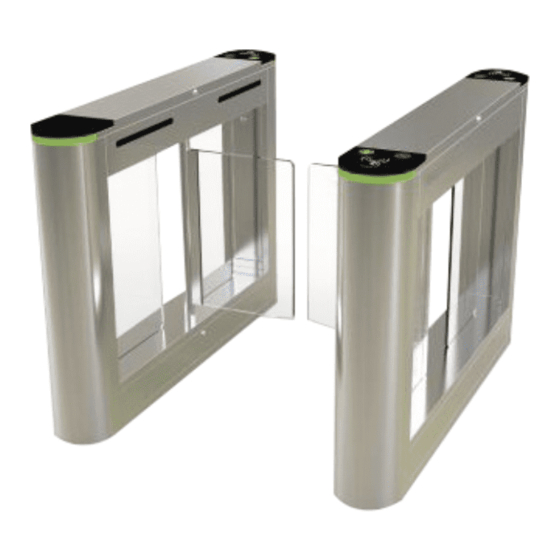

Swing Barrier-SBTL300 Series
Date: September 2020
Doc Version: 1.0
English
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
P a g e
| 1
Copyright© 2020 ZKTECO CO., LTD. All rights reserved.
User Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ZKTeco SBTL300 Series
Summary of Contents for ZKTeco SBTL300 Series
- Page 1 Thank you for choosing our product. Please read the instructions carefully before operation. Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. P a g e Copyright© 2020 ZKTECO CO., LTD. All rights reserved.
- Page 2 SBTL300 Series User Manual About the Manual This manual introduces the operations of SBTL300 Series product. All figures displayed are for illustration purposes only. Figures in this manual may not be exactly consistent with the actual products. P a g e...
- Page 3 SBTL300 Series User Manual Document Conventions Conventions used in this manual are listed below: GUI Conventions For Software Convention Description Bold font Used to identify software interface names e.g. OK, Confirm, Cancel Multi-level menus are separated by these brackets. For example, File > Create >...
-
Page 4: Table Of Contents
SBTL300 Series User Manual Table of Contents PRODUCT INTRODUCTION ......................4 ............................... 4 HASSIS ESIGN AND IMENSIONS ..........................5 ECHANICAL YSTEM OF THE WING ARRIER ............................... 5 LECTRONIC ONTROL YSTEM ............................5 YSTEM OMPOSITION OF THE RODUCT ....................................6 PECIFICATION INSTALLATION OF THE PRODUCT .................... -
Page 5: Product Introduction
Product Introduction Chassis Design and Dimensions SBTL300 series comes with SUS304 housing which provides simple and beautiful design with corrosion protection. It provides legal access to the persons and restricts illegal personnel access. In case of emergency, it ensures that evacuation passage runs smoothly and is convenient for personnel. -
Page 6: Mechanical System Of The Swing Barrier
SBTL300 Series User Manual Mechanical System of the Swing Barrier The mechanical system of a swing barrier turnstile includes the chassis and the core component. The chassis is a carrier where the direction indicator, the reader, the Infrared sensor, and the door lock are installed. -
Page 7: Specification
SBTL300 Series User Manual MEUN MODE Figure 1-2 Specification Dimension(mm) SBTL300 Series: L = 1200, W = 200, H =981.50 Communication RS485 Input voltage AC110~240V, 50-60Hz Input control signal Switching signal Output voltage DC 24V Time of 20% - 95% 0.8 Sec (adjustable) -
Page 8: Installation Of The Product
A distance of 100mm between the swing barrier turnstile and the wall needs to be reserved for ease of opening the top cover of the machine to perform maintenance and adjustment. The reference figure is shown below: Figure 2-1 SBTL300 series dual-lane P a g e... -
Page 9: Cables Installation And Fixing
SBTL300 Series User Manual Cables Installation and Fixing For the outlets of the concealed cables, please refer to the drawing indicating the mounting holes. The input voltage for this swing barrier turnstile is AC100-120V/200-240V and its master and slave are connected by a 3-core cable (signal) and a 2-core cable (power). When installing the swing barrier turnstile, the user only needs to connect it to the corresponding ports. -
Page 10: Menu Introduction
SBTL300 Series User Manual Figure 2-3 Menu Introduction Function Introduction It has clear traffic direction indication function, which indicates whether it can pass or not in the form of intuitive LED light indication (additional direction light board is required). It has anti tailing function: the system will alarm automatically when it detects the following phenomenon in the channel (the person behind is close to the person in front, intending to pass without swiping the card). -
Page 11: Operating Instructions
SBTL300 Series User Manual It has 485 and 232 serial port communication function, and can control the gate opening through 485/232 serial port. After powered on, the digital screen on the control board will display the default state showing the current working mode. - Page 12 SBTL300 Series User Manual 7 -- right prohibition, left free 8 -- right controlled, left free Speed of barrier The higher the number, the faster 03EXXX 0~30 (default: 15) opening the speed The larger the number, the Opening brake 04EXXX...
- Page 13 SBTL300 Series User Manual 0 -- Closing memory function (default: 0) 14EXXX Memory function 1 -- Opening memory function 0 -- Allow to swipe card in passage 15EXXX Swiping card mode (default: 0) 1 -- Not allow to swipe card in passage...
-
Page 14: Troubleshooting
SBTL300 Series User Manual Troubleshooting Number Failure description Analysis and solution No response from direction Check whether the connection of the roof lamp indicator or indication is not is correct or not. correct. After swiping the card, there is only Check the master and slave machine type setting a swing arm action. -
Page 15: Power Maintenance
SBTL300 Series User Manual Power maintenance Switch off the power supply before maintenance. Check the plug connection, if found loose, fix it properly. Do not change any connection position randomly. Check the external power supply insulation periodically. Do periodic check for any king of leakage. Check if the technical parameters of interface are normal. -
Page 16: Appendix Internal Wiring Diagram
SBTL300 Series User Manual Appendix Internal Wiring Diagram P a g e | 15...
