  • Page 8: Product Introduction

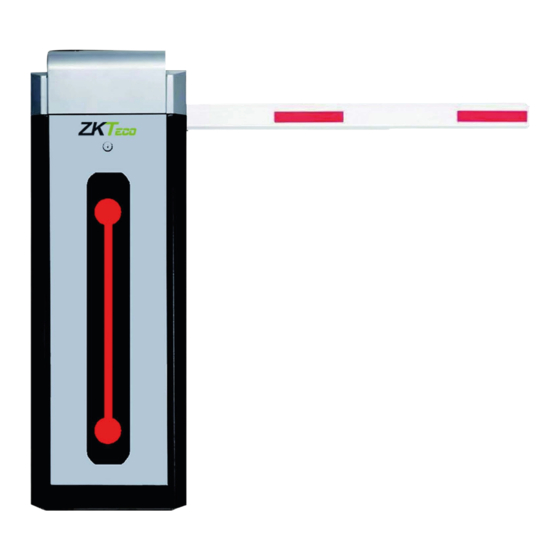

    CMP-300 User Manual Product Introduction The Automatic Barrier Gate CMP-300 series is a modern barrier gate technology combined with the practical implementation of automated barrier gate products in the industry. This product’s appearance and structure design are adapted to the market, and the industry requirements and the traffic light indication has the humanized experience.

  • Page 9: Appearance And Dimensions

    CMP-300 User Manual Appearance and Dimensions P a g e Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 10: Product Installation

    A standard power wire RVV3*1.0 wire sleeve when laid out Signal line RVV4*0.5 under the ground (the strong current should be separated from the weak current) P a g e Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 11: Boom Installation

    Pull the barrier arm out from the main boom, and then fasten it with 2 screws as shown in Figure 1. Figure 1 Connect the main boom with vice together by 2 screws P a g e | 10 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 12 CMP-300 User Manual • Install the boom to the chassis (the frame), as shown in Figure 2. Figure 2 Installing the Boom to the Chassis P a g e | 11 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 13: Technical Parameters

    3s (The mainboard is Telescopic straight boom, boom length: 4.5m~6m, the same) red and white color, the rise/fall speed is 6s P a g e | 12 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 14: Functions

    • Mainboard built-in fuse, secure from overvoltage. • Supports the connection of LPR, UHF reader controller, and other devices to recognize and control the automatic door opening. P a g e | 13 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 15: Movement Transmission Structure

    CMP-300 User Manual Movement Transmission Structure P a g e | 14 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 16: Control Board Wiring Installation

    Install the Desktop Remote Control: Place the Desktop Remote Control on the table in the guard room or attach it to the wall and plug-in the power. wiring diagram of the controller is as follows: P a g e | 15 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 17 CMP-300 User Manual P a g e | 16 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 18 Connect to the LPR camera: • Connection with the UHF controller. Note: The Reader1 and 2 of the inbio260 controller are corresponding to LOCK1, Reader3, and 4 are corresponding to LOCK2. P a g e | 17 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 19 CMP-300 User Manual • Connection with the loop detector. • Connection with VR10 radar P a g e | 18 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 20 CMP-300 User Manual • Connection with the infrared detector (Only Anti-smash function): (Anti-smash and auto closing function): P a g e | 19 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 21: Commissioning Instructions

    This is imitate the effect of the loop detector. Barrier gate Hall limit switch adjustment: P a g e | 20 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 22 CMP-300 User Manual Left and right movement interchange method: P a g e | 21 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 23 Note: All the codes will be deleted in this process). Note: One barrier can only study to 20 remote controls. The matching remote control will be studied already, and there is no need to read again. P a g e | 22 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

  • Page 24: Troubleshooting

    1) Replace 1) The battery of the The remote control handle battery. handle is low. is not responding. 2) Replace the 2) Handle broken. handle. P a g e | 23 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
  • Page 25 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright © 2021 ZKTECO CO., LTD. All Rights Reserved.
