Installation and Wiring

Installation and Wiring
VSW-1208
~
AC INPUT
230V 50Hz, 10W
CHANNEL 4
CHANNEL 3
CHANNEL 2
CHANNEL 1

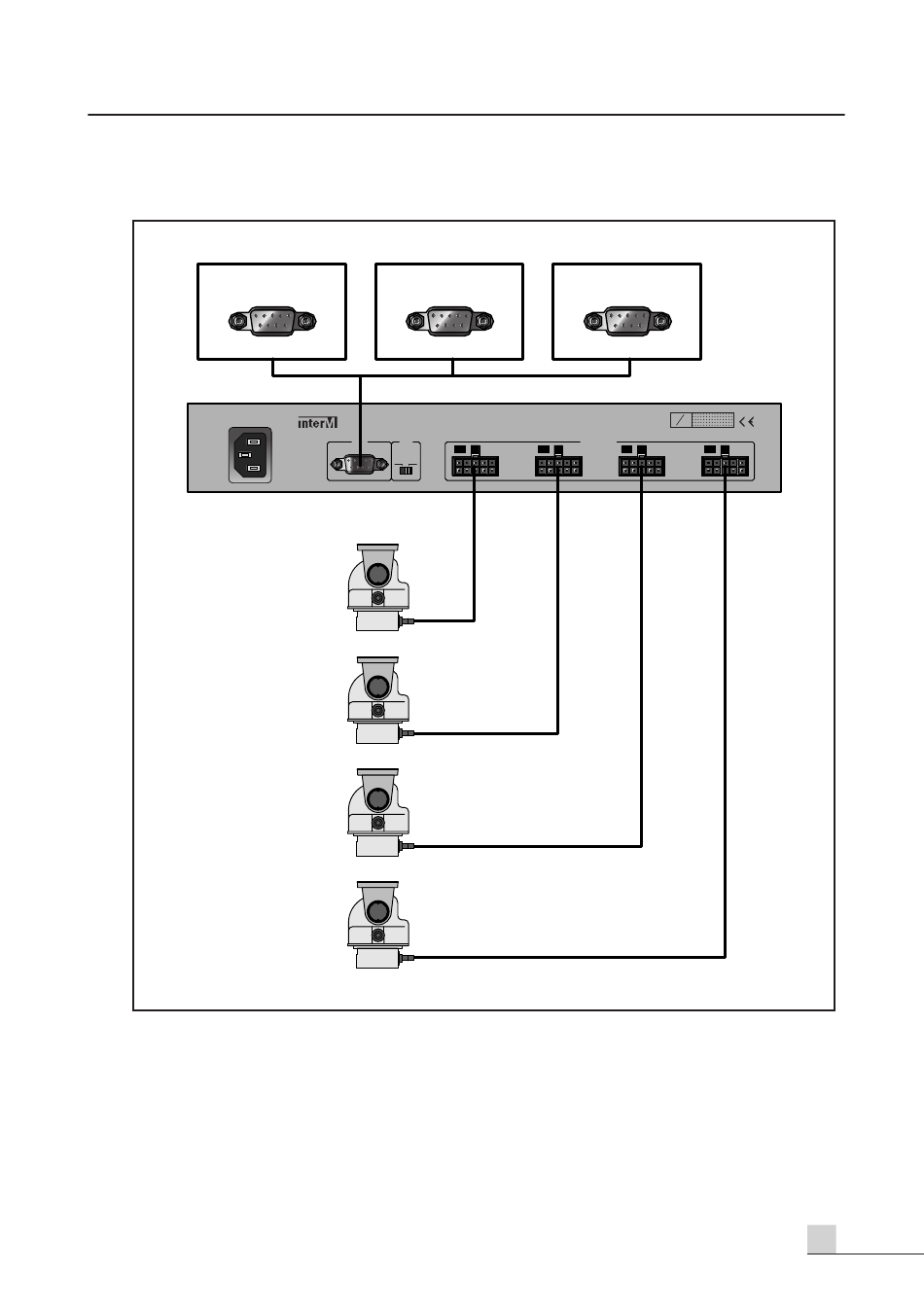

- INSTALLATION AND WIRING
1. In case of using VSW-1208, please set the switch to EXT-SEL ON to control VSW-1208.
2. In case of using VSW-1208, please set the switch to CH-SEL ON to control full 8CH.
3. You may change the speed of zoom controlling the switch that is in rear panel to 6V tap.
4. Duration of relay is 100,000 times.
You would better replace over due relay for proper operation.
VQD-1204
CAUTION;
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.
MODEL NO. VRC-1104T
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
PAN/TILT ZOOM CONTROLLER
AVIS;
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR.
EXT
LENS
SELECT OUT CONTROL
4
SELECTOR
6V 9V
PAN/TILT ZOOM CONTROLLER
VQD-1305
S N
www.inter-m.com
CHANNEL
3 2 1
MADE IN KOREA
VRC-1104T
5
