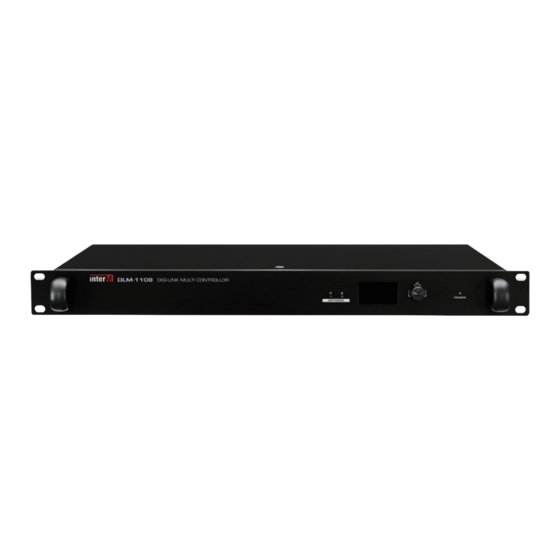

- Page 1 Operation Manual Digi-Link Multi Controllor DLM-1108...
- Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Important Safety Instructions ....................2 Overview ..........................3 Features ..........................3 Contents and Accessories ....................3 Front Panel ........................4 Rear Panel ........................5 Operation .........................7 Applications ........................8 Block Diagram .........................9 Specifications .........................10 Service Procedures ........................12 Schematic........................12 Parts List.........................12 Variations and Options ....................12 Warranty ........................12 DLM-1108... -
Page 4: Unpacking
DIGI-LINK MULTI CONTROLLOR Unpacking Unpacking Although your DLM-1108 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Overview
Overview Overview The DLM-1108 provides device control via RS-232C in a network system that provides an integrated transmission solution through an automated network infrastructure. Multiple devices can be controlled through RS-232C communication by linking complex and extensive systems (PA, SR, AV) with each other. -
Page 6: Front Panel
- IP Address, Subnet mask, DNS Server, Mac Address 3. DISPLAY PANEL CONTROLLING SWITCH By turning the display control switch, the user can check the desired information. 4. POWER LED The green LED lights up when the instrument is powered on. DLM-1108... -
Page 7: Rear Panel
5. NETWORK CONNECTION TERMINAL This is the terminal that connects the equipment to the network. Broadcasting can be controlled via integrated software. ※ For setting method, refer to the integrated software manual. Please download the manual from the website (www.inter-m.net). DLM-1108... - Page 8 ※ It is recommended to use the STP cable for the network cable of this product. 6. RESET SWITCH If you press the switch for more than 10 seconds, the settings of the equipment will be reset to factory defaults. DLM-1108...
-
Page 9: Operation
0.00 00:1d:1d:00:00:00 ① This is the standby screen of the device. The model name (DLM-1108), software version, and net- work IP are displayed. ② If you turn the control switch on the front panel to the right on the standby screen, network-related details (IP Address, Subnet mask, DNS Server, Mac Address) are displayed. -
Page 10: Applications
DIGI-LINK MULTI CONTROLLOR Applications Applications DLM-1108... -
Page 11: Block Diagram
DIGI-LINK MULTI CONTROLLOR Block Diagram Block Diagram DLM-1108... -
Page 12: Specifications
DIGI-LINK MULTI CONTROLLOR Specifications Specifications DLM-1108 Serial communications RS-232C 8CH Network communications 100/1000 Base-T (RJ-45) Operating Temperature -10℃~40℃ Operating Voltage 120-240V, 50/60Hz, DC 24V, 300mA Power Consumption Max 10W Weight (SET) 3kg/6.61lb Dimensions (SET) 482(W) x 44(H) x 280(D)mm/19(W) x 1.7(H) X 11(D)in * Design and specification are subject to be changed for the improvement of product quality without pre notice. - Page 13 5. In case of fixing by not using the included screws or screws of the same size, or using insufficient number of screws the manufacturer is not responsible for any safety accidents caused by this. Accessories included for fixing the product - Specification: SCREW M5x0.8P, L=12 - Quantity: 4pcs DLM-1108...
-
Page 14: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 16 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
