- Page 1 Operation Manual Emergency Combination System ECS-6216P/S * Rack mount products in the Western Hemisphere(North America, South America, and the Caribbean) do not have handles installed due to customer preference.
- Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
....................4 Front Panel ............................5 Rear Panel ............................6 Applications ..........................10 Block Diagram ..........................11 Specifications ..........................12 Service ............................13 Procedures............................13 Schematic.............................13 Parts List ............................13 Warranty ............................13 "We, Inter-M to apply the appropriate set of E4 & Class A for Electromagnetic Environment Condition." ECS-6216P/S... -
Page 4: Unpacking
EMERGENCY COMBINATION SYSTEM Unpacking Unpacking Although your ECS-6216P/S is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Features
Long distance transmission is available and system can be expanded to 160 Zones by utilizing ECS-6216S. - INSTALLATION TIME AND SPACE Since it is an integrated system, it is easy to install and can save installation labor, time and space. ECS-6216P/S... -
Page 6: Equipment Setting And Checking
Equipment Setting and Checking 1. Address Setting 1) Entire system uses only one ECS-6216P; if expansion is needed, additional ECS-6216S units must be added. 2) The equipment numbers for each wiring condition is set by the rear panel DIP switch. -

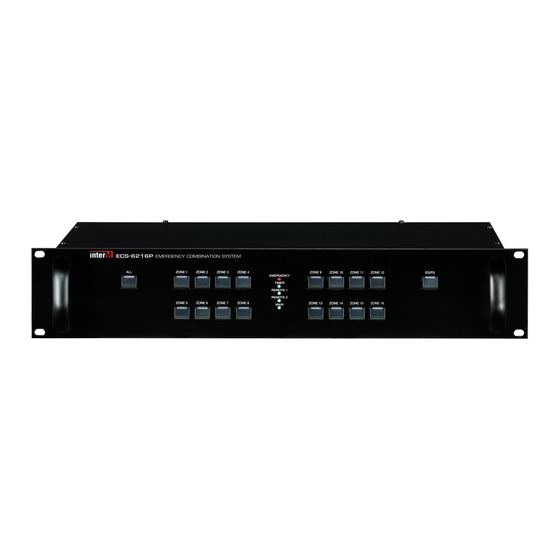

Page 7: Front Panel
Displays which broadcast is being transmitted according to broadcasting priorities. Broadcasting priority displays are Emergency > Timer > Remote1 > Remote2 > Main (BGM). Detailed operations of priority is as follows: Priority Motions ECS-6216P/S Remark PC Display Emergency broadcast EM mode switch, EM MIC broadcast Contact Sensor input... -
Page 8: Rear Panel
2. RM1 AND RM2 AUDIO OUTPUT TERMINAL (EXCLUSIVE FOR ECS-6216P) Terminal that outputs the voice signals from remote MIC input terminal (RM1, RM2). 3. PROGRAM EXCHANGER (PG) CONNECTING TERMINAL (EXCLUSIVE FOR ECS-6216P) Connects to the program exchanger (PG) manufactured by Inter-M to control the priority. (EM/FIRE/TIMER/RM1/RM2). ECS-6216P/S... - Page 9 1) With MACRO function, it can select and memorize the multiple zones to be broadcast for each input channel. However, it can only be used with the Windows program provided by Inter-M. The setting information is downloaded from a PC to the ECS unit and saved in its memory. (Refer to System Operation Manual) 2) A maximum of 160 zones can be selected and saved in one input channel.
- Page 10 Utilized for software upgrades and is not used otherwise. 9. RS-232 SOURCE DEVICE CONTROLLING TERMINAL (EXCLUSIVE FOR ECS-6216P) Used to control Inter-M source devices (CD, TUNER) with Windows program. 1) Connectable source devices: Inter-M products equipped with RS-232 communication terminal 2) Maximum recommended communication distance is 12M(40 feet).
- Page 11 Sets the role for each system when equipment is expanded and linked. Refer to Basic Setting and Checking (Page 4) for setting methods. 13. POWER INPUT TERMINAL - Power input terminal. Check polarity before connecting DC 24V. - When connecting to PD (Power Distributor), connect to unswitched terminal. ECS-6216P/S...
-
Page 12: Applications
CONTROL OUT (TO AUTO ANN) FIRE TIMER SENSOR RS 232 INPUT INPUT LINK IN LINK OUT UPGRADE SOURCE 1 SOURCE 2 TERM. ECS-6216P AUDIO AUDIO 9 10 11 12 13 14 15 16 LOAD OPEN EMG PANEL SPEAKER OUTPUT INPUT (MASTER) DC 24V ADDRESS... -
Page 13: Block Diagram
EMERGENCY COMBINATION SYSTEM Block Diagram Block Diagram ECS-6216P/S... -
Page 14: Specifications
EMERGENCY COMBINATION SYSTEM Specifications Specifications ECS-6216P/S Priority Emergency>Timer>Remote 1>Remote 2>Main Channel 16CH Communications Protocol LINK IN/OUT RS-485 (Maximum: 1km/3,280 feet) RM INPUT (RM1, 2) RS-422 (Maximum: 1km/3,280 feet) SOURCE RS-232 (Maximum: 12m/40 feet) Fire Sensor Dry Contact Operating Temperature -10°C ~ +40°C/14°F~104°F... -
Page 15: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 16 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
