- Page 1 Operation Manual Main Controller IPA-100...
- Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
Important Safety Instructions ....................2 Overview ..........................3 Features ..........................3 Contents and Accessories ....................3 Front Panel ........................4 Rear Panel ........................5 Operation .........................7 Applications ........................8 Block Diagram .........................9 Specifications .........................10 Service Procedures ........................12 Schematic........................12 Parts List.........................12 Variations and Options ....................12 Warranty ........................12 IPA-100... -
Page 4: Unpacking
MAIN CONTROLLER Unpacking Unpacking Although your IPA-100 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. As with most electronic devices, we strongly recommend you retain the original packaging. In the un- likely event the product must be returned for servicing, the original packaging (or reasonable equivalent) is required. -
Page 5: Overview

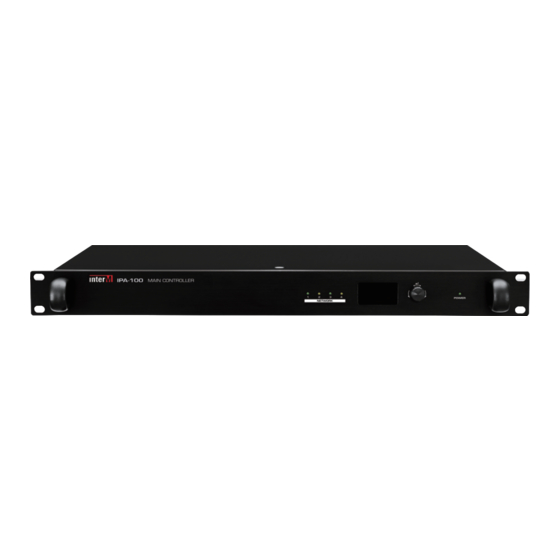

Overview Overview IPA-100 is a model that acts as a server in a network system that provides an integrated transmission solution through network infrastructure. It provides integrated control software for voice playback and BGM control by interworking between complex and extensive systems (PA, SR, AV) and provides an ideal solution for various spaces such as large-scale industrial complexes, hospitals, restaurants, and schools. -
Page 6: Front Panel
- IP Address, Subnet mask, DNS Server, Mac Address 3. DISPLAY PANEL CONTROLLING SWITCH By turning the display control switch, the user can check the desired information. 4. POWER LED The green LED lights up when the instrument is powered on. IPA-100... -
Page 7: Rear Panel
This terminal is used to connect equipment to the network. Broadcasting can be controlled through integrated software. ※ For the setting method, refer to the integrated software manual. Please download the manual from the website (www.inter-m.net). <100 Base-T> <1G Base-T>... - Page 8 ※ It is recommended to use the STP cable for the network cable of this product. 5. RESET SWITCH If you press the switch for more than 10 seconds, the settings of the equipment will be reset to factory defaults. IPA-100...
-
Page 9: Operation
00:1d:1d :00:00:00 0.00 ① This is the standby screen of the device. The model name (IPA-100), software version, and network IP are displayed. ② If you turn the control switch on the front panel to the right on the standby screen, network-related details (IP Address, Subnet mask, DNS Server, Mac Address) are displayed. -
Page 10: Applications
MAIN CONTROLLER Applications Applications IPA-100... -
Page 11: Block Diagram
MAIN CONTROLLER Block Diagram Block Diagram IPA-100... -
Page 12: Specifications
MAIN CONTROLLER Specifications Specifications IPA-100 Network communications 100/1000 Base-T (RJ-45) Operating Temperature -10℃~40℃ Operating Voltage 120-240V, 50/60Hz, DC 24V, 300mA Power Consumption Max 10W Weight (SET) 2.9kg/6.4lb Dimensions (SET) 482(W) x 44(H) x 280(D)mm/19(W) x 1.7(H) X 11(D)in * Design and specification are subject to be changed for the improvement of product quality without pre notice. - Page 13 5. In case of fixing by not using the included screws or screws of the same size, or using insufficient number of screws the manufacturer is not responsible for any safety accidents caused by this. Accessories included for fixing the product - Specification: SCREW M5x0.8P, L=12 - Quantity: 4pcs IPA-100...
-
Page 14: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 16 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
