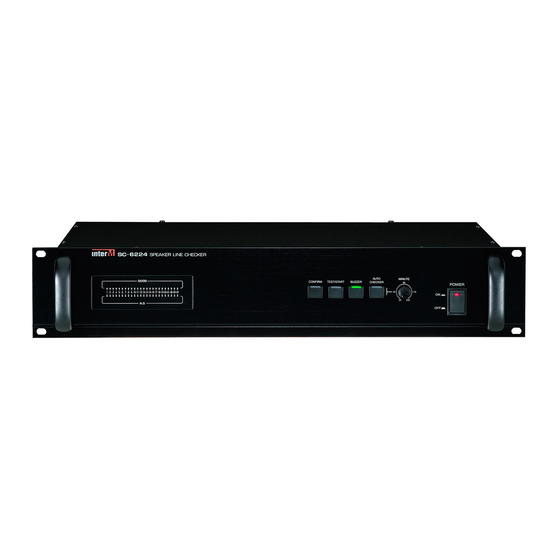

- Page 1 Operation anual Speaker Line hecker S -6224 *Rack mount products in the Western Hemisphere (North merica, South merica, and the Caribbean) do not have handles installed due to customer preference.
- Page 2 A personal welcome to you from the management and employees of Inter-M ll of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
SPE KER LINE CHECKER Contents Contents Unpacking .............................2 Installation Environment............................2 Important Safety Instructions......................2 Summary ............................3 Features ............................3 Equipment Setting and Checking ..................4 Front Panel ............................5 Rear Panel .............................7 Operation Method ........................9 Applications ..........................10 Block Diagram ...........................11 Specifications ..........................12 Service ............................14 Warranty ............................14 SC-6224... -
Page 4: Unpacking
SPE KER LINE CHECKER Unpacking Unpacking lthough your SC-6224 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Summary
Summary Summary SC-6224 is a speaker line checker, and it detects the errors by measuring the impedance of speaker line connected to P amp. SC-6224 is the system which measures and indicates the status of speaker line (GOOD, SHORT,NG,OPEN) through LED and buzzer. In case of emergency, it inspects the line automatically with time... -
Page 6: Equipment Setting And Checking
OPEN. Equipment 1 Equipment 2 Equipment 3 Equipment 4 S/W : LO D S/W : OPEN S/W : OPEN S/W : LO D ※C UTION : Communication error may occur if setting is performed incorrectly. SC-6224... -
Page 7: Front Panel
It is automatic test ON/OFF button of speaker line. If button is on, it checks out the speaker line automatically for certain time setting, and automatic check will be cleared when is off. On/off operations of button can be shown as the LED on the button. SC-6224... - Page 8 Depending on positions of volume, automatic test time can be adjusted from 5 to 200minutes. Turn the nob to clockwise, then set time will be increased. 7. POWER SWItCh It is the power ON/OFF switch. 8. POWER LED It is the LED displaying the status of power ON/OFF. SC-6224...
-
Page 9: Rear Panel
6. tERMInAtIOn SWItCh (LOAD/OPEn) It is the switch which is set for stable data receiving/transmitting of link in/out. For details of equipment setting, please refer to page 4 ※C UTION : communication error may occur if it is not set correctly. SC-6224... - Page 10 It is the switch which sets up the role of each system if device is expanded and interlocked. For details of equipment setting, please refer to page 4. 8. POWER InPUt tERMInAL It is the terminal which connects the DC power (DC 24V). Caution to polarities when it connects. SC-6224...
-
Page 11: Operation Method
3. Connect the speaker line to “CH NNEL OUTPUT” on the rear panel. If connection is completed, then turn the power of other devices. 4. Connect DC-24V to the DC power input of SC-6224, then push the power switch. - OPERAtIOnS 1. -
Page 12: Applications
RME-6108 ECS-6216P LINE TO PC PRI. MUTE INPUT OUTPUT LEVEL POWER INPUT DIB 6000 DIRECT BOX ER-6116 DIB-6000 SC-6224 SPEAKER PP-6213 AFD-6218 POWER AMP POWER AMP (SPARE) PD-6359 PB-6207 DC LINE AC LINE COMMUNICATION SIGNAL LINE BATTERY (DC 24V) SC-6224... -
Page 13: Block Diagram
SPE KER LINE CHECKER Block Diagram Block Diagram COMM 485 ADDRESS DRY CONTACT DC IN SC-6224... -
Page 14: Specifications
SPE KER LINE CHECKER Specifications Specifications SC-6224 Test Impedance Range 20 ~3k Test Duration (per channel) less than 100msec/channel Test Interval (selectable) 5min ~ 200min Number of Channels 24 Channel Operating Temperature -10℃ ~ +40℃ Power Source DC 24V, 200m Weight (SET) 4.4Kg/9.7lb... - Page 15 SPE KER LINE CHECKER ※ DIMEnSIOnS SC-6224...
-
Page 16: Service
To obtain specific warranty information and available service locations, contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 17 NOTE...
