CHARGER INTERFACE

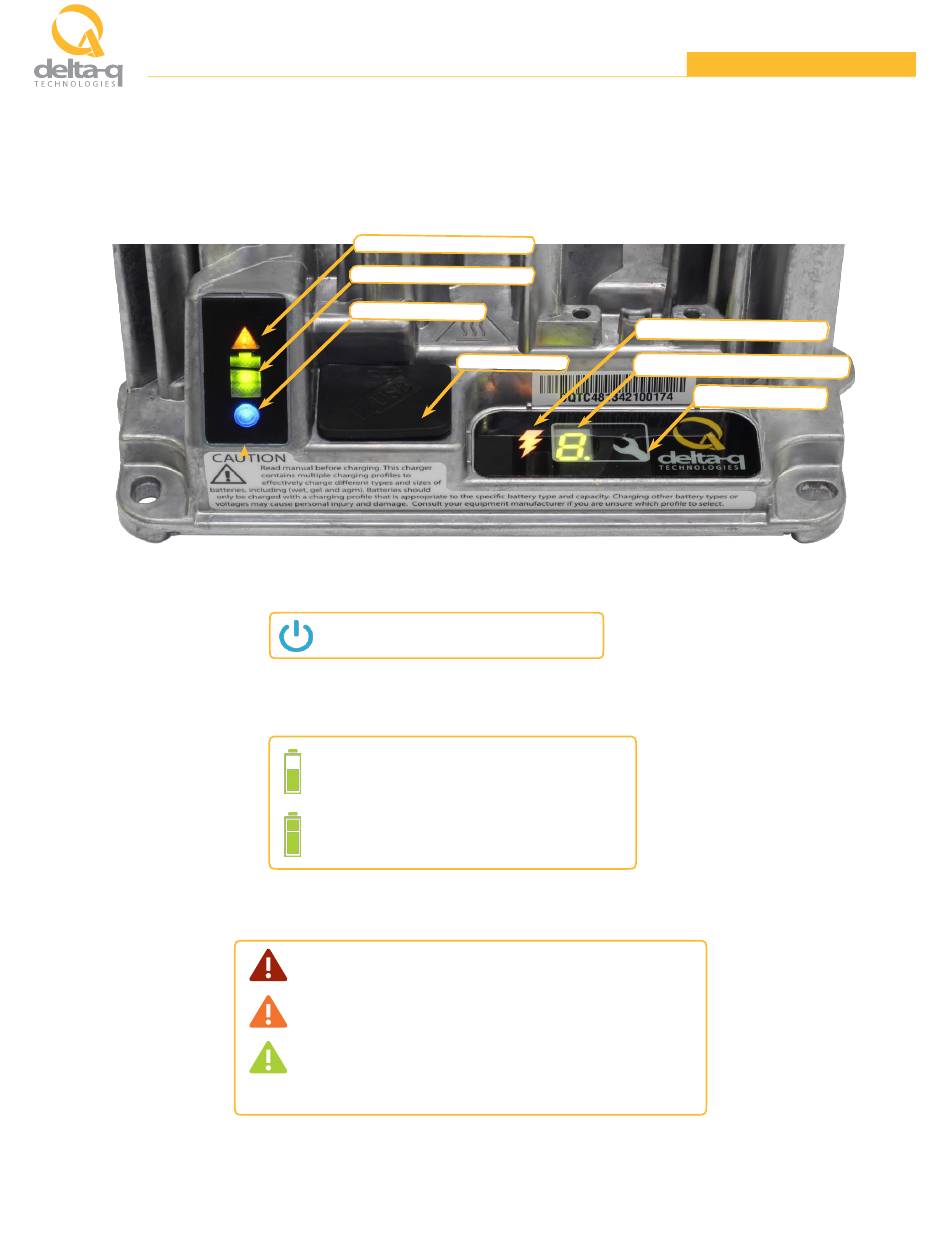

All IC Series chargers share the same user interface to improve usability.
1. When you plug into AC power, the AC Power Indicator illuminates solid blue to indicate AC power is present.
2. The Battery Charging Indicator has four states:
3. The Fault/Error/USB Indicator indicates faults, errors, and USB activity.
Page 7 of 12
Copyright © 2020 Delta-Q Technologies Corp
Fault/Error/USB Indicator
Battery Charging Indicator
AC Power Indicator
USB Host Port
Solid Blue = AC power available
Breathing Green = Low state of charge
Solid Green = High state of charge
Breathing Green = High state of charge
Solid Green = Charge completed
Solid Red = Charger fault; see display panel for details
Flashing Amber = External error condition – Caution
See display panel for details
Flashing Green = USB Port Active
Solid Green = Safe to remove USB flash drive
https://delta-q.com
Charging Output Indicator
Charge Algorithm/Error Display
Charger Button
