Delta-q QuiQ 1500 Product Manual

Warning
Use charger only with an algorithm selected that is appropriate to the specific
battery type. Other usage may cause personal injury and damage. Lead acid
batteries may generate explosive hydrogen gas during normal operation.
Keep sparks, flames, and smoking materials away from batteries. Provide
adequate ventilation during charging. Never charge a frozen battery. Study all
battery manufacturers' specific precautions (e.g. maximum charge rates and if
cell caps should be removed while charging).
Danger
Risk of electric shock. Connect charger power cord to an outlet that has
been properly installed and grounded in accordance with all local codes and
ordinances. A grounded outlet is required to reduce risk of electric shock – do
not use ground adapters or modify plug. Do not touch uninsulated portions
of output connector or uninsulated battery terminals. Disconnect the AC
supply before making or breaking the connections to the battery. Do not open
or disassemble charger. Do not operate this charger if the AC supply cord
is damaged or if the charger has received a sharp blow, been dropped, or is
damaged in any way – refer all repair work to the manufacturer, or qualified
personnel. This charger is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge on electrical systems and battery charging, unless they have
been given supervision or instruction concerning use of the charger by a
person responsible for their safety. Children should be supervised to ensure
that they do not play with the charger.

Operating Instructions

The charger may become hot during charging. Use hand protection to safely handle the charger during charging.
­
Extension cords must be 3-wire cord no longer than 30m (100') at 10 AWG or 7.5m (25') at 16 AWG per UL guidelines.
­
Only connect one QuiQ Charger to a single 120VAC 15A circuit, or the circuit may become overloaded.
­
The charger will conduct a self-test after being powered on, visible by flashing all of its LEDs in sequence.
­

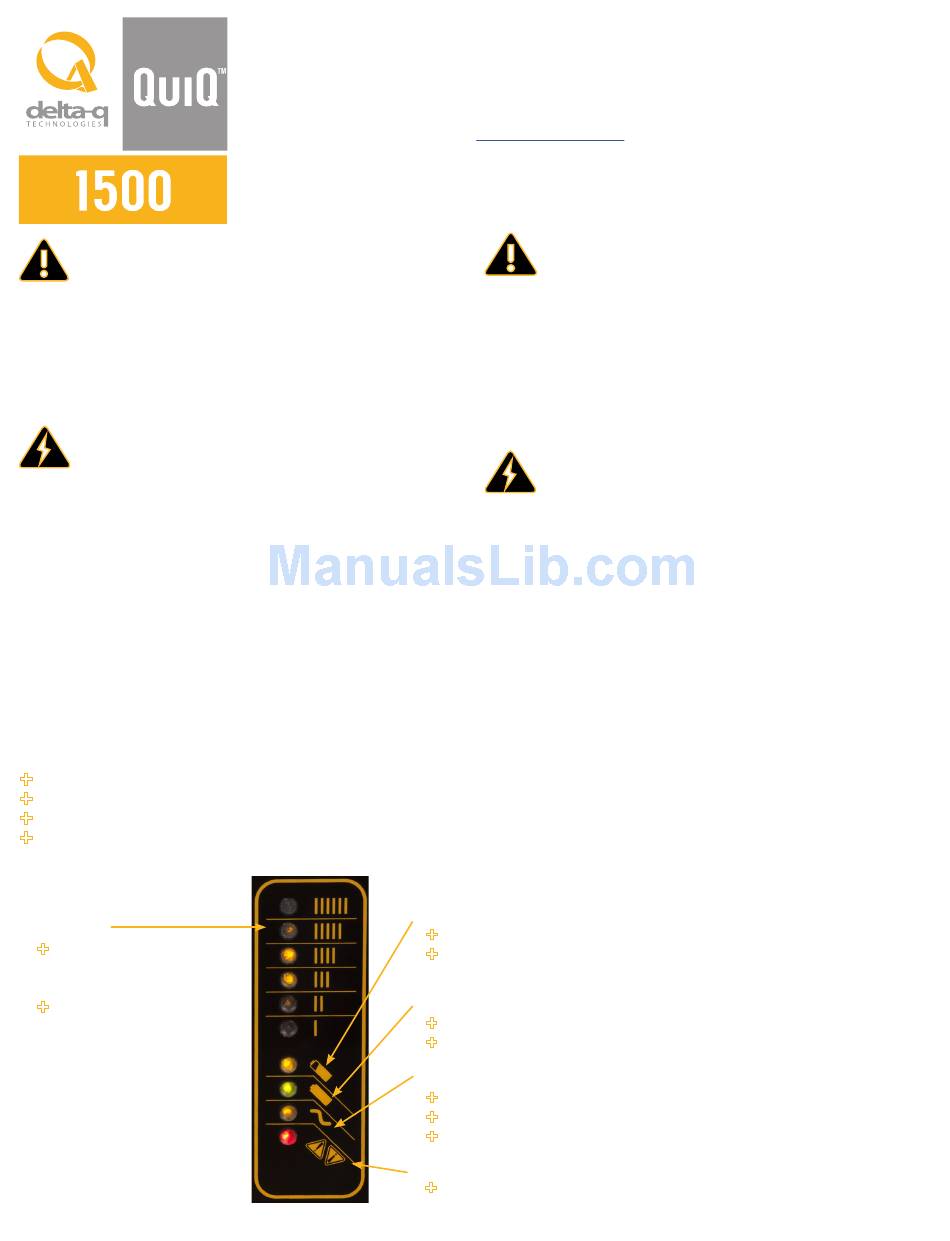

Charger 10-LED Display
Ammeter
If solid: Displays
­
scale of output
during bulk phase.
If flashing: Output
­
has been reduced
due to high internal
charger temperature.
Displays charge
profiles 1-6 for 11
seconds if no battery
is connected.
© 2015 Delta-Q Technologies Corp. All rights reserved.
(DOCUMENT 710-0188 Rev 1 Date: 31/05/2015)

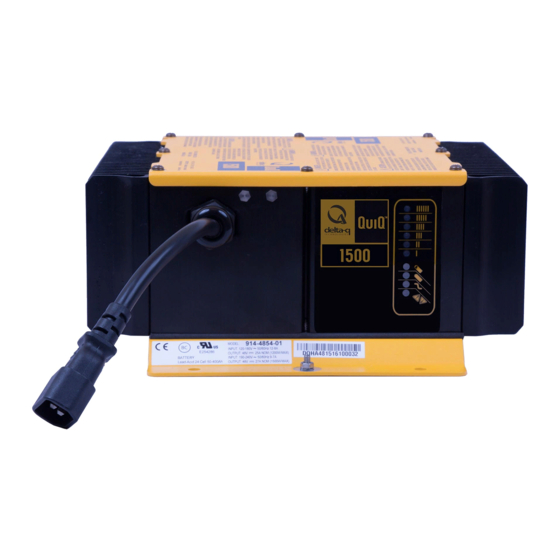

QuiQ 1500 Industrial Battery Charger
TM
Product Manual
This manual contains important safety and operating instructions for Delta-Q QuiQ 1500
chargers. Please read this information in its entirety before using your QuiQ Charger. For
technical support, please visit
vehicle or machine, as their versions of this charger may require special instructions.
Bulk Charge Indicator
­
­
Charge Completion Indicator
­
­
AC Indicator
­
­
­
Fault Indicator
­
delta-q.com/support
Attention
Utiliser le chargeur seulement avec un algorithme approprié au type
spécifique de batterie. D´autres types de batteries pourraient éclater et causer
des blessures ou dommages. Les batteries peuvent produire des gaz explosifs
en service normal. Ne jamais fumer près de la batterie et éviter toute étincelle
ou flamme nue à proximité des batteries. Fournissez une ventilation adéquate
du chargement. Ne jamais charger une batterie gelée. Prendre connaissance
des mesures de précaution spécifiées par le fabricant de la batterie, p. ex.,
vérifier s´il faut enlever les bouchons des cellules lors du chargement, et les
taux de chargement.
Danger
Risque de décharge électrique. Ne pas toucher les parties non isolées du
connecteur de sortie ou les bornes non isolées de la batterie. Toujours
connecter le chargeur à une prise de courant mise à la terre. Déconnectez
la source AC avant de faire ou défaire les connections à la batterie en
chargement. Ne pas utiliser le chargeur si le cordon d'alimentation AC est
endommagé ou si le chargeur est abîmé suite à une chute ou autre indicent.
Ne pas ouvrir ni désassembler le chargeur – référer toute réparation aux
personnes qualifiées. Cet appareil n'est pas destiné à un usage par des
personnes (dont les enfants) avec des facultés motrices, sensorielles ou
mentales réduites, ou ayant une expérience et des connaissances insuffisantes,
à moins qu'elles sont sous la supervision ou reçoivent les instructions sur
l'utilisation de l'appareil d'un répondant garant de leur sécurité. Les enfants
devraient être surveillés afin qu'il ne jouent en aucun temps avec l'appareil.
If solid: Bulk charge phase complete (80% charged); in absorption phase.
If flashing: Displays charge profile number if no battery is connected.
(Green
If solid: Charging complete and maintenance mode is active.
If flashing: Absorption phase complete, in finishing phase.
If solid: AC voltage is above 185 volts.
If flashing: AC voltage is between 105 volts and 185 volts.
If off: AC voltage is below 105 volts.
(Red Light)
Charger error. Refer to troubleshooting information below.
or contact the manufacturer of your
Light)
1
