- Page 1 IC SERIES BATTERY CHARGERS USER MANUAL © 2020 Delta-Q Technologies Corp. All Rights Reserved. (PN: 710-0254 Rev 1 Date: December 2020)
-
Page 2: Table Of Contents
IC Series Battery Chargers User Manual https://delta-q.com TABLE OF CONTENTS Original Safety and Operating Instructions ....................3 Warning ................................3 Danger ................................3 Attention ................................4 Danger ................................4 Safe Operating Instructions ........................5 EMC Declaration ............................6 Charger Interface ............................7 Charging Algorithms .......................... -
Page 3: Original Safety And Operating Instructions
ORIGINAL SAFETY AND OPERATING INSTRUCTIONS This manual is for the Delta-Q Technologies IC Series Industrial Battery Chargers. Read and comprehend this document fully before handling or working with any IC Series battery chargers. Important safety, operating, and installation instructions are included. As well, this manual includes a link to a list of fault codes and error codes that help engineers take steps quickly to resolve issues. -
Page 4: Attention
IC Series Battery Chargers User Manual https://delta-q.com Attention Utiliser le chargeur seulement avec un algorithme approprié au type et capacitie spécifique de batterie. D´autres types de batteries pourraient éclater et causer des blessures ou dommages. Les batteries au plomb peuvent produire des gaz explosifs en service normal. Ne jamais fumer près de la batterie et éviter toute étincelle ou flamme nue à... -
Page 5: Safe Operating Instructions
• When mated with a Delta-Q Technologies sealed AC cord, the charger meets IP66 specifications, making it dust-tight and protected against powerful water jets. If a cord set with an unsealed connector is used, the plug and connector must be periodically inspected to ensure the contacts are clean and dry. -
Page 6: Emc Declaration
EMC DECLARATION The IC Series 650, 900, and 1200 models have been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules for the United States and the ICES Regulations for Canada. -
Page 7: Charger Interface

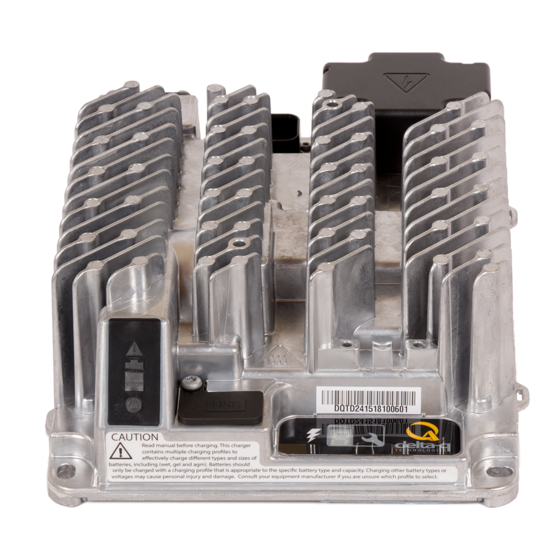

IC Series Battery Chargers User Manual https://delta-q.com CHARGER INTERFACE All IC Series chargers share the same user interface to improve usability. Fault/Error/USB Indicator Battery Charging Indicator AC Power Indicator Charging Output Indicator USB Host Port Charge Algorithm/Error Display Charger Button 1. - Page 8 Fault Code – an internal fault condition that has caused charging to stop. Remove AC power and the battery for a minimum of 30 seconds and retry the charger. If it fails again, contact Delta-Q Technologies Support. E-#-#-# Error Code - an external error condition has caused charging to stop. Reinsert AC power to reset the charger to clear the error.
-
Page 9: Charging Algorithms
Almost every model of battery has different charging requirements and each application may add to those requirements. Delta-Q Technologies has established over 200 charge algorithms for the most common motive deep cycle batteries. These algorithms are designed to get the longest battery life and meet a variety of application environments. -
Page 10: Fault And Error Codes
IC Series Battery Chargers User Manual https://delta-q.com 4. Press and release the Charger button to advance through the charge algorithms. The selected charging algorithm will be displayed up to three times (e.g., P-0-1-1 for Algorithm 11). 5. Once the desired charging algorithm is displayed, press and hold the Charger button for 10 seconds to confirm selection and exit Selection Mode. -
Page 11: Acronyms
IC Series Battery Chargers User Manual https://delta-q.com ACRONYMS The following table provides acronym definitions used within this guide. Term Definition Alternating Current American Wire Gauge Battery Management System Cubic Feet Per Minute Direct Current Electromagnetic Compliance Federal Communications Commission High Voltage... - Page 12 Delta-Q Technologies Corp. 3755 Willingdon Avenue Burnaby, BC V5G 3H3 CANADA Web: www.delta-q.com Phone: +1.604.327.8244 Delta-Q Technologies Corp. 3755 Willingdon Avenue Burnaby, BC V5G 3H3 CANADA...
