GPRINTER GP-1524D Quick Installation Manual

Quick Installation Manual
GP-1524D/GP-1525D Thermal Label Printers
Please read this user's manual before installing printer.
Keep the manual for further checking when necessary.
Printer Interface: GP-1524D USB
GP-1525D RS232+USB

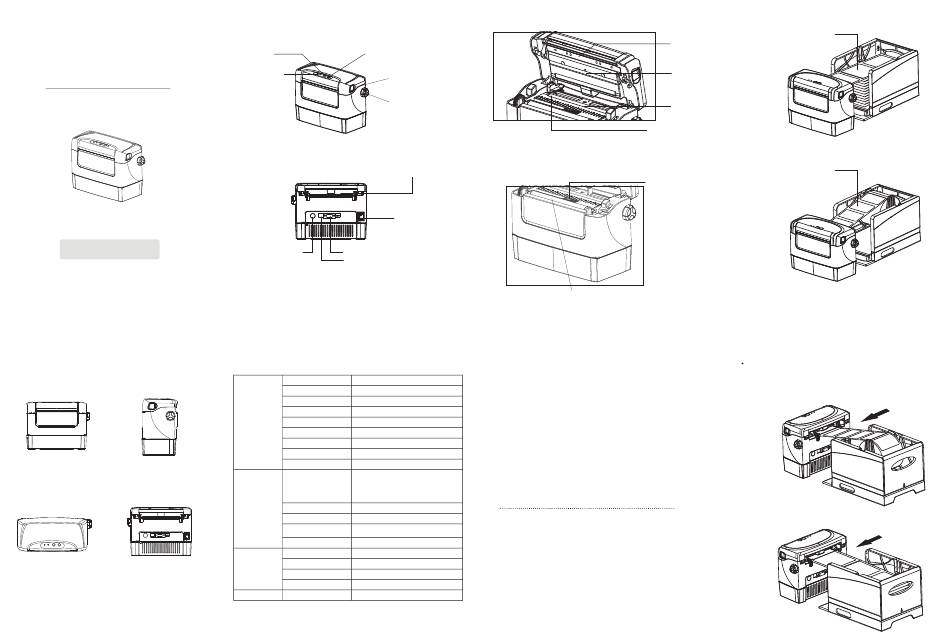

Pictures view:
Front
Side
Top
Back
LED lights indicate: ON LINE electric light, ERROR error light
PAUSE button
Feed button
LED indicator
Press button for top cover open
Knob for paper feeding
Label entrance from external holder
Power switch
Serial
Power
USB
Attention:
Picture showing printer port is for GP-1525D, the actual port for your
purchased printer is subject to the specifications of printer.
Specifications:
Print Method Direct Thermal
Print Resolution 203 dpi
Print Width Max.104mm (4.09")
Print Speed 2~8 inch/s (51-203mm/s)
PRINTING Memory DRAM: 8M, FLASH: 4M
Print head temperature detect Thermal sensitive resistance
Print Head Position detect Microswitch
Paper sensor Photoelectric sensor
Interface USB(GP-1524D), USB+RS232 (GP-1525D)
Code39, Code93, Code128 subsets A, B, C, Codabar,
Interleaved 2 of 5, EAN-13, EAN-14, EAN-128, UPC-A,
1D Barcode
UPC-E, EAN and UPC 2(5) digits add-on, MSI,
PLESSEY, POSTNET, china POS, ITF14
CHARACTER FONT
BARCODE TYPE 2D Barcode QR code
GRAPHICS
Character Size Font 0 ~ font 8
1 ~10 times enlargement in both directions;
Enlargement&Rotation
0°, 90°, 270°, 360°rotation
Graphics Processing Support BMP/PCX/BAS files
Media Roll OD 130mm (5")
Media Type Thermal paper, Fan fold paper
MEDIA
Media Width Max.118mm, Min.26mm
Paper Off Type Tear off
POWER Power supply Input: AC 110V/240V
Platen roller
Features:
● Support Fan fold paper
● Compact design, easy operation
● 2~8inch/s high-speed printing
● Support QR CODE printing
● Support media width from 26mm to 118mm
● Automatic paper calibration
● Automatic temperature control for durable printing
Installing paper:
Adjust the knob and media guide according to the paper width,
insert the label from the entrance of printer, the printer will be in
normal printing status when it drops in paper feeding.
Output: DC24V/2A
Fan fold paper
Print head
Gab sensor
Paper sensor
Media guide
Roll paper
Black mark sensor
For more details about GP-1524D / GP-1525D printers, please
refer to the user manual in CD. Specifications, accessories and
programs are subject to change without notice.
