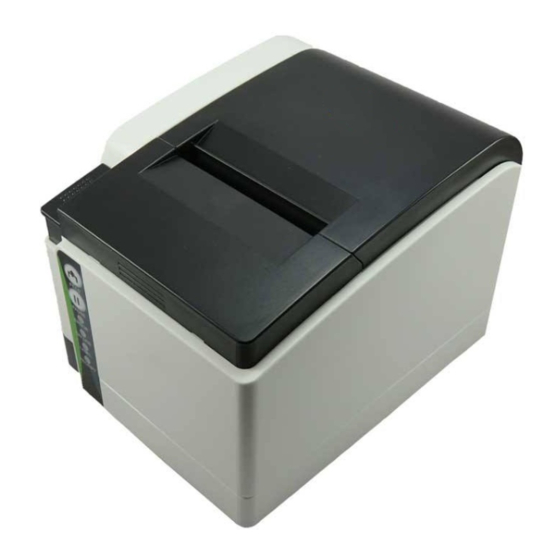

GPRINTER GP-8300TC User Manual

User's Manual
GP-8300TC
THERMAL PRINTER

Safety Notice:

Install the printer on the stable surface. Choose firm and level
*
surface where avoid vibration.
Keep enough space for printer operation and maintenance.
*
Keep printer away from water, sunshine, high lights and heat
*
source.
Do not use and store the printer under high temperature, moist
*
and seriously polluted environment.
Avoid to put the printer in shaky areas.
*
Condensation of moisture on the printer surface is not allowed. If
*
failed, do not turn on the printer until dew disappears.
Connect AC power adapter to a proper power outlet. Avoid using the
*
same outlet with other large electric machines which generate voltage
fluctuation.
Please unplug the printer power cord from outlet when you do not
*
plan to use it for a long period of time.
Do not let water or conducting material (eg. Metal) into the printer,
*
please turn off the power immediately if happened.
Do not print when it's out of paper, which will seriously damage the
*
print head and rubber roller.
Make sure printer power is turned off when connecting and
*
disconnecting with the interfaces.
When printing quality meet your needs, we recommend you set low
*
grade print density.
Do not try to disassemble, repair or remodel the printer by
*
yourself.
keep this manual if any necessary.
*

Main Features:

Receipt and label auto-cut funtion.
*
Support thermal paper roll, thermal label paper and stick paper.
*
Support printing media width from 20mm to 80mm.
*
Auto label calibration function.
*
2-in-1 printer for combining barcode printer and receipt printer.
*
Built-in USB disk stored driver software and driver installation
*
manual inside.
Interface optional:
*
USB+Bluetooth 2.0, USB+Bluetooth 4.0, USB+WiFi
Overheating protection function.
*
Unpacking:
After unpacking the unit, please check that all the necessary
accessories are included in the package.
Printer
Power adapter
Power cable
USB cable
Manual
Thermal Barcode Printer
Technique Spec:
Print method
Resolution
Print width
Print speed
Buffer
Temperature sensor Thermal sensitive resistance
Position sensor
Cutter
Paper sensor
Interface Serial+USB+Bluetooth;
Code page
Barcode mode
1~10 times enlargement in
Character
horizontal and vertical
Enlargement &
directions; Rotation printing
Rotation
Single color PCX, BMP
Graphic image file can be download
Character font
Simplified/Traditional
Paper type
Paper width
Paper roll diameter
Paper feeding way Top paper out, Partial cut
Power input
Cashdrawer out
1pcs
Work environment
Storage environment
1pcs
Dimension
192mm*145mm*147mm
1pcs
1pcs
Weight
1pcs
Thermal Barcode Printer
Thermal Label Mode Thermal Receipt Mode
Thermal Direct thermal line
203DPI 203DPI
80mm (Max) 72mm (Max)
127mm/s (Max) 90mm/s (Max)
FLASH: 128K FLASH: 60K
Thermal sensitive resistance
Microswitch Microswitch
Partial cut Partial cut
Photoelectricity Photoelectricity
Serial+USB; Serial+USB;
Serial+USB+Bluetooth;
Serial+USB+WiFi Serial+USB+WiFi
1~ 8 times enlargement in
horizontal and vertical
directions; Rotation
(0°, 90°, 180°, 270° ) printing, inversion printing
Support different dot
density bitmap and
into Flash download bitmap to print
ASCII
Font A: 12*24 dots
Font 0 ~ Font 8
Font B: 9*17 dots
GB18030
GB18030,
Simplified/Traditional
Chinese, Korean
Chinese/Korean: 24*24 dots
Thermal paper roll /
Thermal paper roll
adhesive thermal paper
20~80mm 80mm
80mm max. 80mm max.
Top paper out, Partial cut
DC24V/2A DC24V/2A
DC12V/1A DC12V/1A
5~45℃, ≤93%RH 5~45℃, ≤93%RH
5～45℃ ≤93%RH 5～45℃ ≤93%RH
192mm*145mm*147mm
(LxWxH) (LxWxH)
