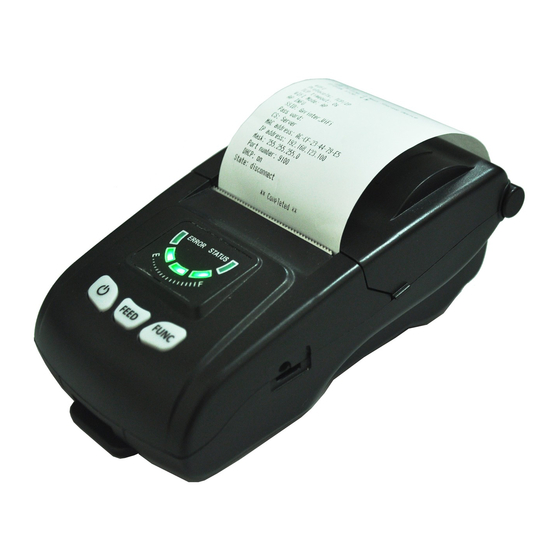

GPRINTER PT-280 Series User Manual

User's Manual
PT-280 Series

Safety warning

Only the supplied AC power adapter and lithium battery is allowed
to use, otherwise it may cause device damage, battery leakage, fire,
and even explosion.
Do not put the battery into a fire or apply direct heat to it or
disassemble it, otherwise cause the battery leakage, fire, and even
explosion.
As the battery's liquid is corrosive, if there any case of operational
mistakes to cause leakage, please wash immediately with plenty of
clean water if skin or clothes contact it carelessly. If entering eyes,
wash with plenty of clean water at once and seek medical advice.

Safety notice

Do not touch the paper tear-off knife.
The print head is a heated part, please do not touch the print head
and other parts around it during or after the printing process.
Do not touch the print head and plug-in parts to avoid print head
damage.
Do not open the top cover when printing, otherwise may cause
printer work failure.
In order to get good print quality, and extend the device service life,
we suggest that using the recommended thermal paper roll or which
is the same quality of.
Do not print when it's out of paper, which will seriously damage the
print head and rubber roller.
Do not let water or conducting material (eg. Metal) into the printer,
please turn off the power immediately if happened.
Please make sure to charge the battery for 60% or above and then
remove the battery from the printer and store separately if the printer
will not be used for a long period of time.
Please keep this manual for your reference.

Main Features:

Streamlined structure.
Drop in paper loading, easy operation.
Support thermal paper width 58mm, diameter 50mm, thickness
0.06~0.08mm.
Rechargeable lithium battery:1800mAh~1900mAh/7.4V, long cycle
life.
Power adapter: 9V-1A, AC100-240V.
Use supplied battery and power adapter, charge time will be 2.5~3.5h.
Low-power mechanism.
Automatic sleep mode function.
Two kinds of Interface optional: USB+Bluetooth (standard ),
USB+WIFI (optional)
USB+Bluetooth: BT3.0 and BLE4.0, support Android and iOS system.
USB+WIFI: AP/STA/AP+STA mode to set up the networks.
Support USB virtual COM port for developing and testing by developer.
Compatible with ESC/POS printing commands, support NV logo
download printing, various 1D bar code and QR code.
Low power consumption, good print quality, 50km mechanism lifespan.
Support GB18030 Simplified Chinese, Big5 traditional Chinese,
Korean, international character set and extended code pages.
LED indicator (standard), LCD display(optional)
LED can be showed abnormal condition of the printer, battery capacity
status, charging and connection status ect.
LCD can be showed the printer work status more directly.
Freely offer DLL, SDK, Demo for developing.

Unpacking

After unpacking the unit, please check that all the necessary
accessories are included in the package.
User's manual
Printer
Lithium battery
USB cable
Power adapter

Technique Spec

Print method Direct thermal line
Print width 48mm
Dot density 384dot/line
Print speed 60mm/s (max)
Printing
Interface USB+Bluetooth3.0/BLE4.0 (Standard)
USB+WIFI (Optional)
Paper width 58mm
Paper diameter 50mm (max)
Paper thickness 0.06~0.08mm
Print commands Compatible with ESC/POS
Barcode Fonts GB18030, Big5, Korean
Character size ANK Font: Font A: 12*24dots
Font B: 9*17dots
Simplified/Traditional Chinese Character,
Korean: 24*24dots
Barcode UPC-A/UPC-E/EAN(JAN)13/EAN(JAN)8/
CODE39/CODABAR/ITF/CODE93/
CODE128/QR code
4K bytes
Data
Buffer
NV Flash 60K bytes
Dimension 148.5*86*58.5mm
Physical
Weight 288g
Properties
(including battery)
Power adapter Input: AC100-220V output: DC 9V/1A
Power
Lithium battery 1800mAh~1900mAh/7.4V
2.5h-3.5h
Charge period
Work
Environment
Environment Temperature: 5～45℃, Humidity: 10～80%
Storage
Environment Temperature: -10～50℃, Humidity: 10～90%
Mechanism 50km
Reliability
1pcs
1pcs
1pcs
1pcs
1pcs
