Summary of Contents for GPRINTER Pro5

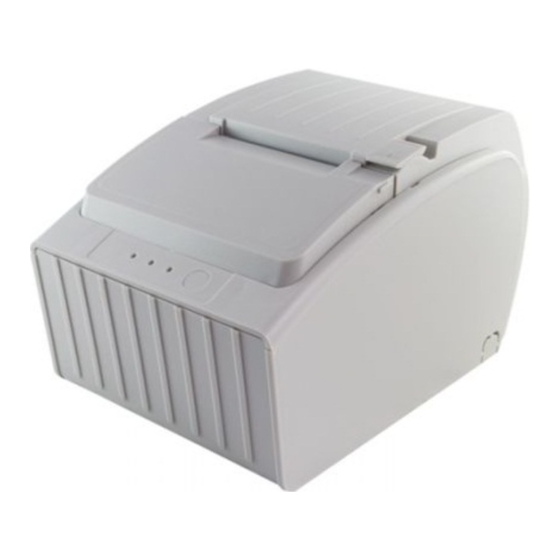

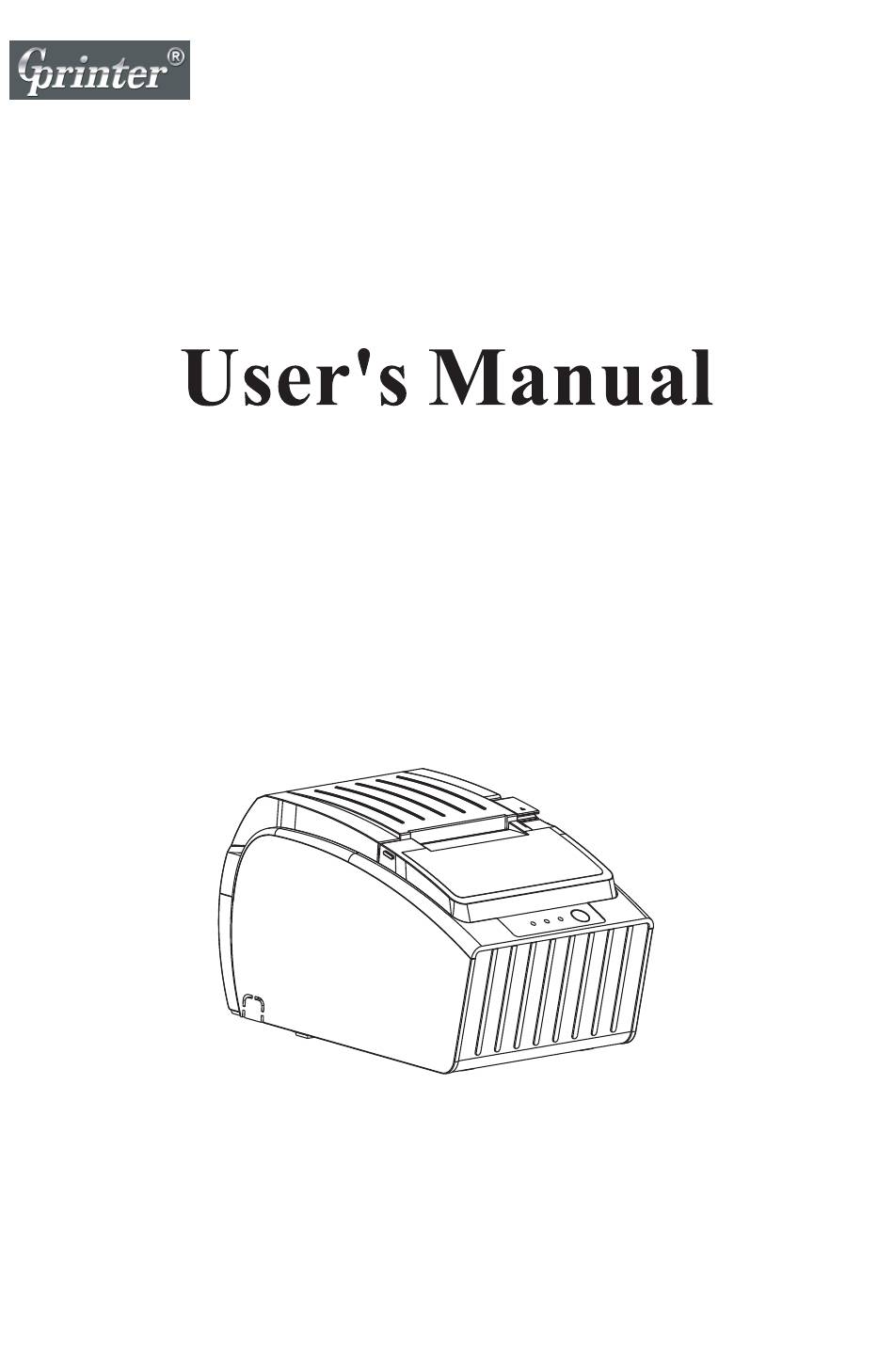

- Page 1 Pro5 IMPACT DOT-MATRIX PRINTER Proficient in Commercial POS Receipt Printers...
-
Page 2: Safety Notice
Safety Notice: * Don't touch the printer head with anything. * Don't touch the cutter blade. * Don't bend the power cord excessively or place any heavy objects onto it. * Don't use the printer when it is out of order. This can cause a fire or and electrocution. * When connecting or disconnecting the plug, always hold the plug but not the cord. -
Page 3: The Main Features
Compatible with standard OPOS/ESC command. · A long lifetime auto cutter is optional, with never paper jams performance, allowing your pro5 to print up to two million lines. · A wide range of interfaces allow you easy connectivity: Serial, Parallel, USB, Ethernet, Bluetooth. -
Page 4: Technical Parameters
Technical parameters Number Pro5 9pin impact dot matrix printing Print method 5line/sec Print speed 76±0.5mm Paper width 385dots/line、400dots/line Printing density ANK Font Font A: 9×9dots Font B: 7×9dots Character Size Simplified/Traditional Chinese Character: 16×16dots Compatible with the ESC/POS command The print command... -
Page 5: Printer Connection
Printer Connection a. Plug the DC cord connector into the printer's power connector. b. Plug the data cable connector into the printer's interface connector. c. Plug the drawer cable into the drawer kick-out connector on the back of the printer next to the interface connector. -
Page 6: Set The Print Mode (Dip Switch)
Set the print mode (DIP switch) Through the DIP switch Settings can change the black label, cutting knife, point/line, one-way printing, default language and string of BPS mode setting. IMPACT DOT-MATRIX PRINTER... -
Page 7: Driver Installation
Driver installation a. Insert the driver CD, in the menu click GP76DRVCN V8. Exe to start the installation. (if no CD to jia bo's official website www.gainscha.com, please download). b. The clause to read, accept and continue with the installation. IMPACT DOT-MATRIX PRINTER... - Page 8 Choose to fit your computer operating system, click next. d. Choose Pro5 series installed modules. IMPACT DOT-MATRIX PRINTER...
- Page 9 Select the corresponding printer port. f. After the installation is complete, the control panel - printers and faxes, right-click the printer - properties, depending on the type of printer interface, select the corresponding interface. IMPACT DOT-MATRIX PRINTER...
- Page 10 Warning: This manual content without consent shall not be arbitrarily changed, our company keep changes in technology, spare parts, software and hardware products. User if you need any further information related to the product, can contact the dealers. Without permission, any section of this manual shall not, in any form by any means to copy or transfer.
