Notice
1. This manual is applied for A831, GP-5890XIII etc. with Wi-Fi interface.
2. New generation Wi-Fi printers support the latest Wi-Fi technology with 3 working modes:
AP mode (factory default setting), STA mode and APSTA mode.
3. It supports 1D barcode and 2D QR code printing;
4. Windows driver and Android APP are available, which allow users for very flexible application in
Windows, Android operation system.
Directory List

1. AP Mode introduction

2. STA Mode introduction

3. APSTA Mode introduction
4. Check Wi-Fi printer current mode
5. Wi-Fi Setup Tool & Operation Instructions
6. How to initialize the printer AP mode
7. Connect Wi-Fi printer with Android device via APP
GPRINTER TECHNOLOGY LIMITED
Setting Manual for Wi-Fi Printer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A831 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GPRINTER A831

Summary of Contents for GPRINTER A831

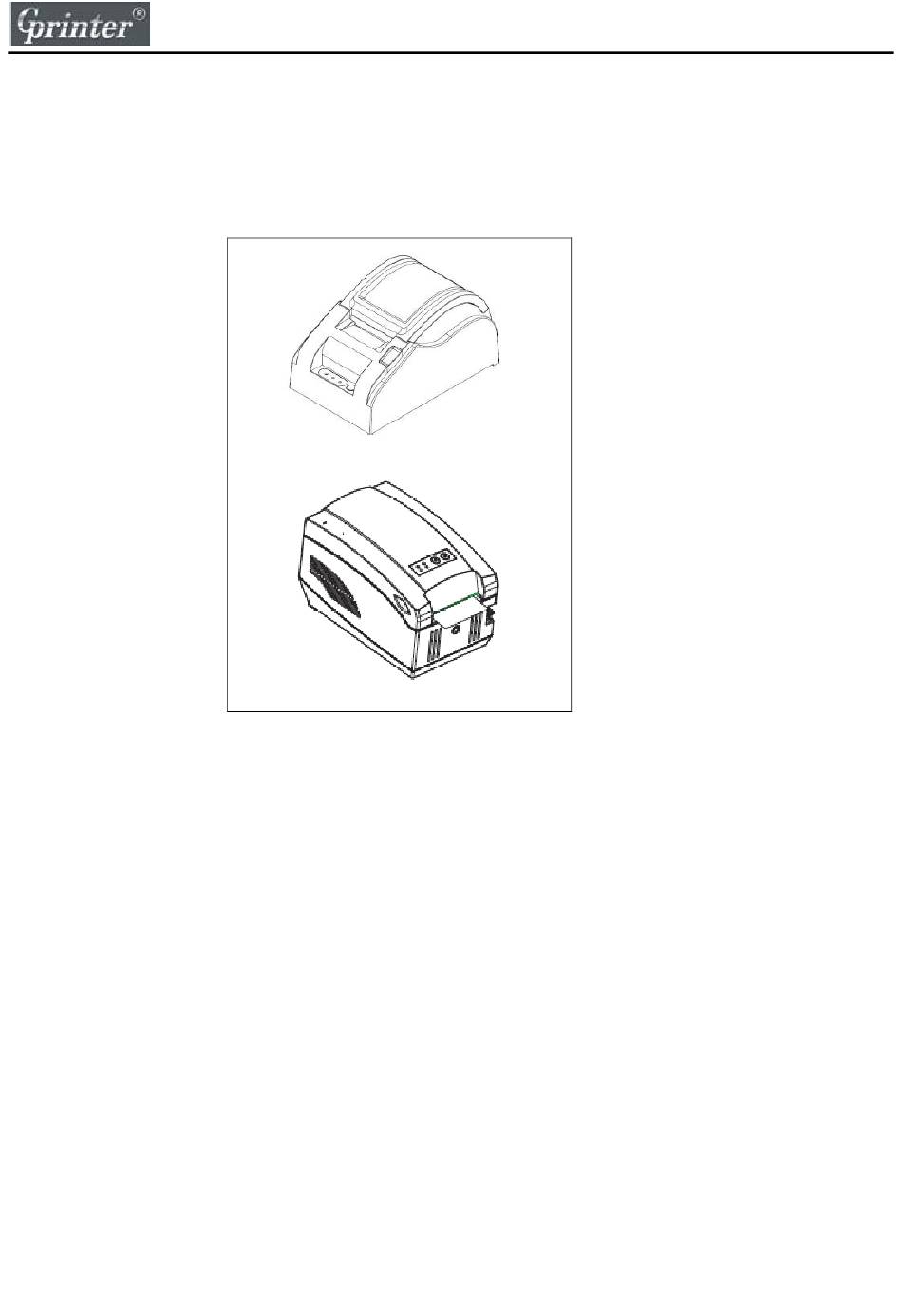

  • Page 1 Setting Manual for Wi-Fi Printer Notice 1. This manual is applied for A831, GP-5890XIII etc. with Wi-Fi interface. 2. New generation Wi-Fi printers support the latest Wi-Fi technology with 3 working modes: AP mode (factory default setting), STA mode and APSTA mode.
  • Page 2 Generally the wireless router is an AP, other wireless terminal (mobile phone, tablet and laptop etc) could connect with AP. When Wi-Fi printer is in AP mode, then other wireless terminal could connect with printer to set up network as below picture showing. SSID: Gprinter-WIFI Password: none IP address: 192.168.123.100 Port: 9100 Subnet mask: 255.255.255.0...
  • Page 3 3. APSTA mode AP mode and STA mode are all in one. Printer could connect with other wireless terminal or router to realize printing. 4. Check Wi-Fi printer Current Mode 1) AP mode Connect printer power cable correctly and put paper roll into the printer, turn on the printer, you will find POWER indicator is on, ERROR indicator is off, function indicator is off.
  • Page 4 5. Wi-Fi Setup Tool & Operation Instruction Notice: This tool could be working only when printer is in AP mode. Here we change the AP mode to STA mode as example. 1) Click Connect  Information: Connected Select STA Mode Put password for associated AP SSID; ...
  • Page 5 Remark: How to check IP network segment: Click My Network PlacesWireless network connection Check wireless network Associated Wi-Fi: Connected Wireless network connection  Support IP address: 192.168.2.167(for example). In above STA network protocol parameters setting, you can set 192.168.2. *** (except 1, 167, 255 and other numbers which used by other terminals already) 3) Restart printer, press Function button to get the test page to check if it is showing STA mode Refer to operation instruction in above introduction.

This manual is also suitable for:

Gp-5890xiii
