GPRINTER GP-H80300I User Manual

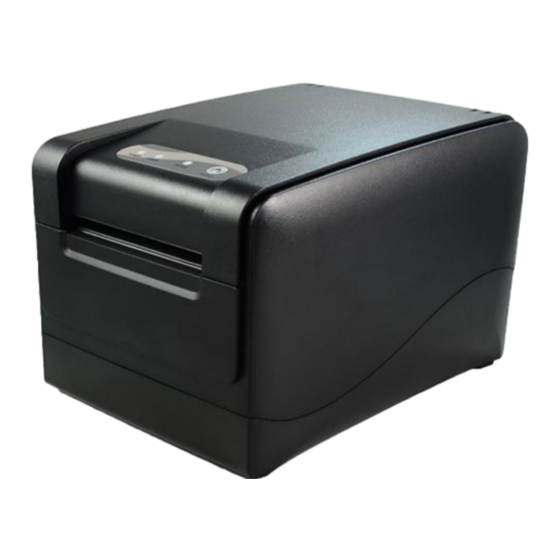

Thermal receipt printer
Hide thumbs

Advertisement

Table of Contents

User's Manual
GP-H80300I
THERMAL RECEIPT PRINTER
Proficient in Commercial POS Receipt Printers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GP-H80300I and is the answer not in the manual?

Questions and answers

MKHIZE
May 27, 2025

GOOD DAY CAN YOU HELP ME WITH SWITCHES

0

Related Manuals for GPRINTER GP-H80300I

Summary of Contents for GPRINTER GP-H80300I

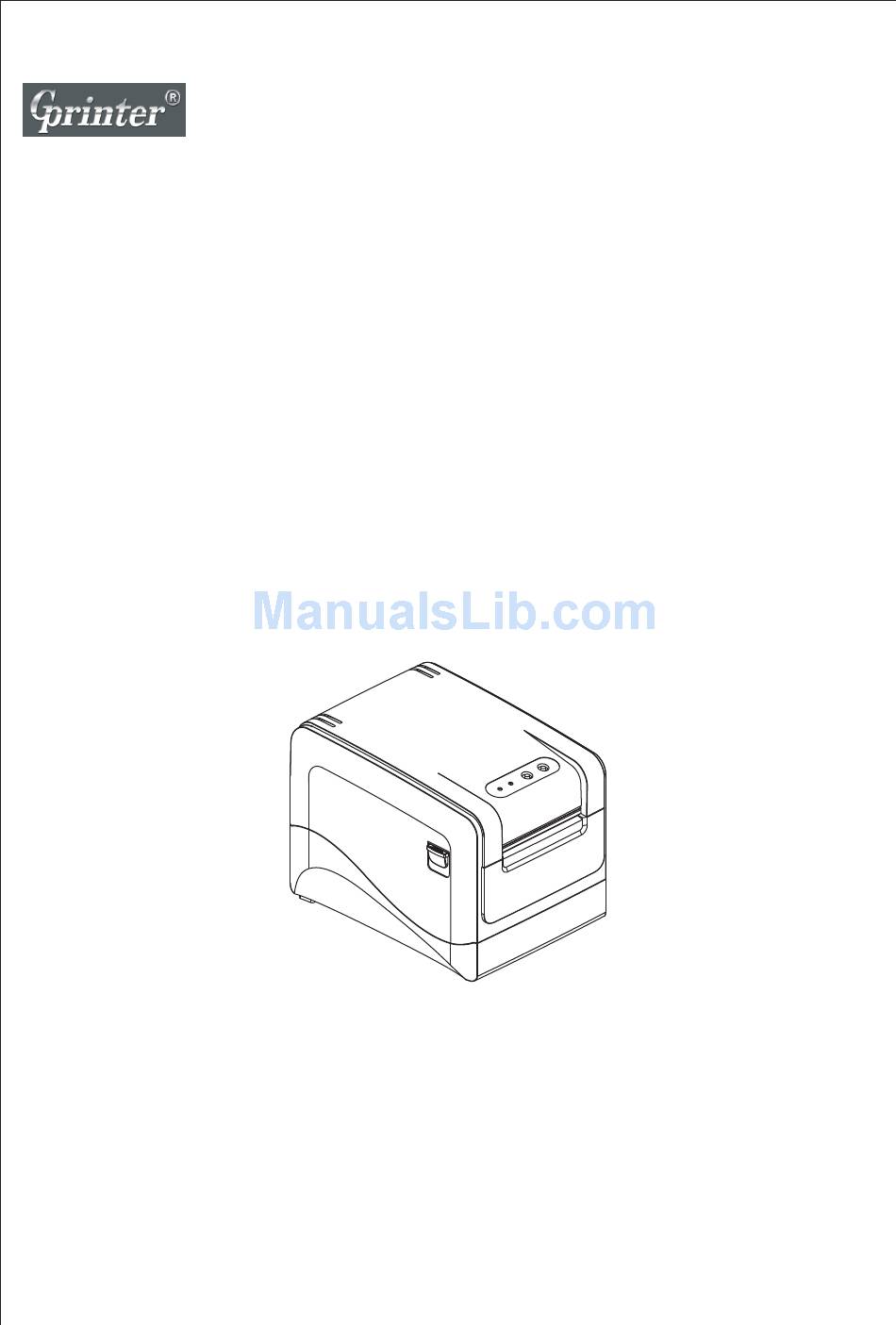

  • Page 1 User’s Manual GP-H80300I THERMAL RECEIPT PRINTER Proficient in Commercial POS Receipt Printers...

  • Page 2: Safety Notice

    1.Safety Notice: * Install the printer on stable place, choose a firm, level surface where avoid vibration. * Do not use and store the printer under high temperature, humid or seriously polluted environment. * Connect AC power adapter to a proper power outlet. Avoid to use the same outlet with other large electric machines which generate voltage fluctuation.

  • Page 3: Network Printing

    4. Features 300mm/sec high printing speed * Support kitchen printing and network printing * Support front paper dispensing and auto cutter, stopping paper from jamming * Support bar code printing * 120mm large paper roll * Support 43mm, 58mm, 70mm, 80mm, 82mm paper width printing * Rational construction, easy maintenance * Various interfaces including Serial, USB and Ethernet * Built in data buffer which can receive new task when printing is in progress.

  • Page 4: Specification

    5.Specification GP-H80300I Model Printing speed 300mm/sec Paper roll Paper Width:43/58/70/80/82mm Paper Diameter:1 0mm max. Roller diameter: Inside: 12mm Outside: 18~26mm 512/576/600/640 dots/line Dot density Character size ANK Character, Font A: 12×24dots, Font B: 9×17dots, Chinese Character: 24×24dots Compatible with EPSON ESC/POS...

  • Page 5: Printer Connection

    6. Printer Connection a. Plug the power adapter cable into the printer’s power port. b. Plug the interface cable securely into the printer’s Serial/USB/Ethernet port. c. Plug the cash drawer’s RJ-11 phone jack into the printer RJ-11 socket. Power Adapter 7.
  • Page 6 8. Print Mode Setting (DIP switches) Users can select the auto cutter, language, printing speed, beep, print density by using DIP switches to set the printer. 1. Remove the DIP switches cover on the bottom of the printer. 2. DIP switches setting.

  • Page 7: Three-View Drawing

    9. Three-view Drawing Top view Front view Side view 10. Cutter Maintenance Step 1 Turn off the printer and restart it, the printer will initialize and reset the cutter. Step 2 If step 1 failed, pull out the front cover carefully, manually adjust the gear wheel on the cutter to make the cutter back to its home position.
  • Page 8 11. Button and Indicators POWER ERROR PAPER FEED Error Indicator Feed Button Paper Indicator Power Indicator 12. Function of button and indicators （1）. POWER Indicator ON indicates printer power is on OFF indicates printer power is off. （2）. ERROR Indicator ON may indicate paper out, cutter error, print head overheated.

  • Page 9: Printer Port

    13. Professional Performance 300mm/sec high printing speed b. Support front paper exit and auto cutter c. Support bar code printing d. 120mm large roll paper e. Support various paper width printing 14. Printer Port 1. USB port 2. Serial port 3.
