Demonstration circuit 1744A is an off-line isolated flyback
converter featuring the LT
signed to drive a single LED from an input voltage range
of 90V AC to 270V AC. It is also designed to comply with
IEC 61000-3-2 Class C harmonics standard and EN55015B
conducted EMI standard.
The LT3799 controls an isolated flyback converter in
boundary mode, suitable for LED applications requiring
4W to over 100W of LED power. Its novel current sensing
scheme delivers a well-regulated output current to the
secondary side without using an opto-coupler. Its unique
bleeder circuit makes the LED driver compatible with
perForMAnce sUMMArY
PARAMETER
Input Range
Output Current I
OUT
Maximum Output Voltage
Minimum Output Voltage
Arrow.com.
Downloaded from
3799. The demo board is de-
®
(T
= 25°C)
A
CONDITIONS
Line Frequency, 50Hz/60Hz
V
= 120V AC, V
IN

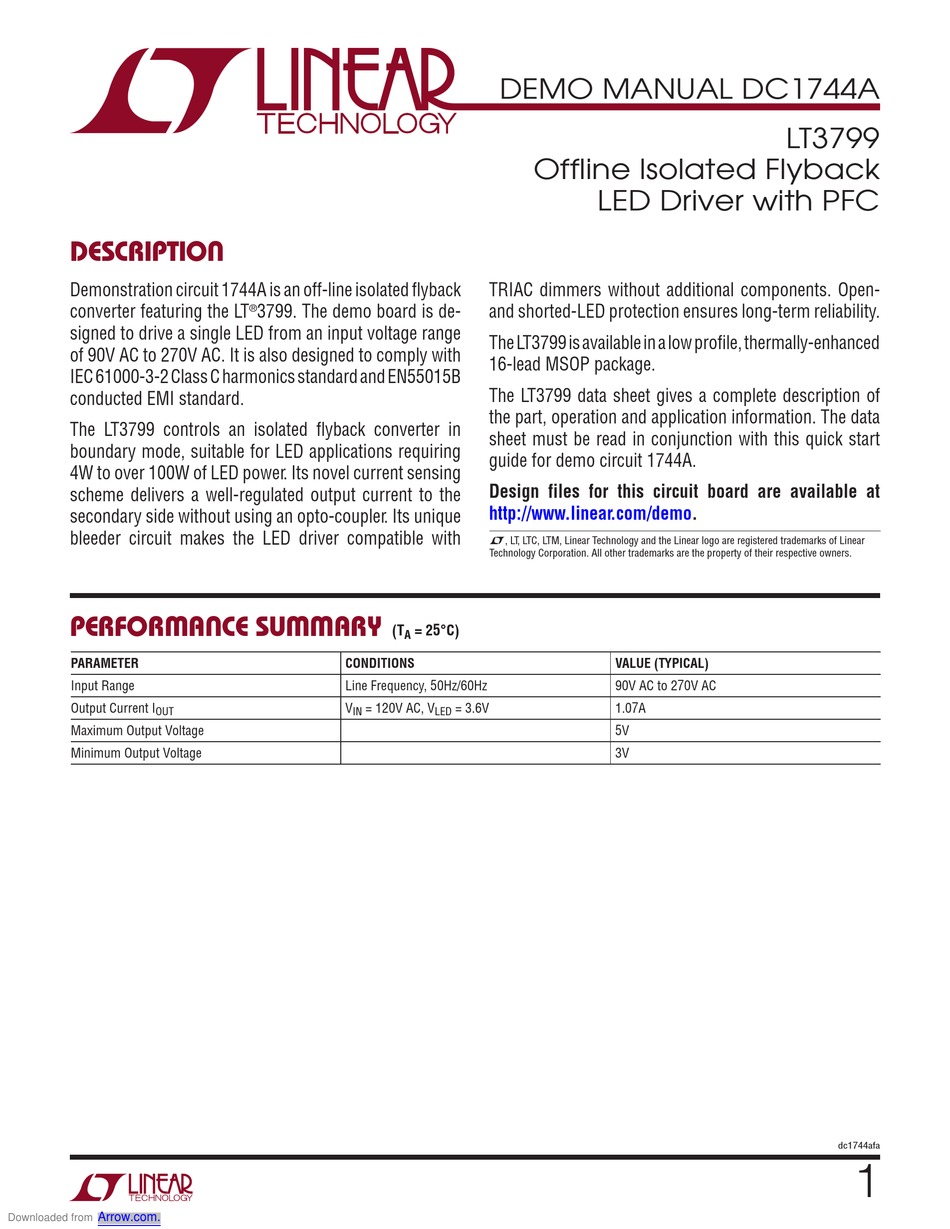

DEMO MANUAL DC1744A
Offline Isolated Flyback
LED Driver with PFC
TRIAC dimmers without additional components. Open-
and shorted-LED protection ensures long-term reliability.
The LT3799 is available in a low profile, thermally-enhanced
16-lead MSOP package.
The LT3799 data sheet gives a complete description of
the part, operation and application information. The data
sheet must be read in conjunction with this quick start
guide for demo circuit 1744A.
Design files for this circuit board are available at
http://www.linear.com/demo.
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
= 3.6V
LED
LT3799
VALUE (TYPICAL)
90V AC to 270V AC
1.07A
5V
3V
dc1744afa
1
